Windy City Wire CAT6ASP-WHT CAT 6A Shielded Plenum Cable, White

CAT 6A Shielded Plenum Cable for AV  Control

Windy City Wire CAT6ASP-WHT is a white CAT 6A shielded plenum cable designed for professional low-voltage AV control installations. It is suited for integrators, contractors, and facility teams working in plenum spaces where reliable category cabling, clear identification, and standards-based construction are required.

This cable uses a 23 AWG solid bare copper conductor design with 4 twisted pairs and FTP foil shielding. It is built as an ANSI/TIA 568-C.2 Category 6A cable and is listed for plenum use with ETL Type CMP, C(ETL), TIA/EIA, NFPA 70, and ISO 11801 industry standards.

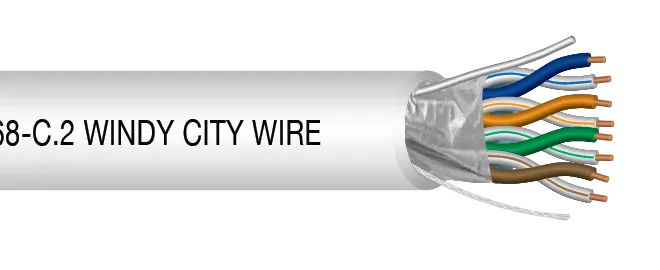

For real installation environments, CAT6ASP-WHT includes FEP insulation and isolator materials, PET core wrap, a polyolefin and aluminum shield, a 24 AWG solid tinned copper drain wire, and a white FRPVC jacket. The color-coded twisted pairs help support clean terminations and organized cable identification in structured AV and control wiring systems.

Additional verified specifications include a nominal jacket outside diameter of 0.273 inches, cable weight of 38.20 pounds per 1000 feet, 100 ohm input impedance, 70% nominal velocity of propagation, and a maximum operating frequency of 500 MHz. The cable is marked as made in the USA.

Key Features

• CAT 6A shielded plenum cable for professional AV control infrastructure
• 23 AWG solid bare copper conductors with 4 twisted pairs
• FTP foil shielded construction with 24 AWG solid tinned copper drain wire
• ETL Type CMP, C(ETL), TIA/EIA, NFPA 70, and ISO 11801 listed construction
• White FRPVC jacket with 0.273 inch nominal outside diameter
• 500 MHz maximum operating frequency with 100 ohm input impedance

Professional Applications

• AV control cable installations
• Crestron plenum control-cable pathways
• Commercial low-voltage structured cabling
• Plenum-rated AV infrastructure projects
• Professional rack, room, and facility wiring systems

System Integration

CAT6ASP-WHT fits into larger AV and control systems as a shielded CAT 6A plenum cable for low-voltage infrastructure. Its Category 6A construction, FTP shielding, white jacket, and recognized industry standards make it a practical choice for organized cable pulls, structured wiring layouts, and plenum-rated installation environments.

Broadcast Workflow Benefits

In professional AV environments, dependable cable infrastructure supports cleaner system builds, easier documentation, and more consistent field installation. CAT6ASP-WHT gives integrators a standards-based shielded plenum cable option for projects where AV  control, structured category cabling, and installation efficiency all matter.

Frequently Asked Questions

What is Windy City Wire CAT6ASP-WHT?

CAT6ASP-WHT is a white CAT 6A shielded plenum cable with 23 AWG solid bare copper conductors and 4 twisted pairs.

Is CAT6ASP-WHT rated for plenum spaces?

Yes. The cable is listed as plenum and ETL Type CMP, with C(ETL), TIA/EIA, NFPA 70, and ISO 11801 industry standard references.

Is this cable shielded?

Yes. CAT6ASP-WHT uses FTP foil-shielded construction with a polyolefin and aluminum shield and a 24 AWG solid tinned copper drain wire.

What conductor type does CAT6ASP-WHT use?

It uses 23 AWG solid bare copper conductors in a 4 twisted pair cable design.

What is the maximum operating frequency?

The verified maximum operating frequency for CAT6ASP-WHT is 500 MHz.

Related Equipment and Workflow Compatibility

CAT6ASP-WHT is commonly used in AV control, Crestron plenum, and professional low-voltage category cable environments where CAT 6A shielded plenum construction is specified. It belongs in structured cable pathways, equipment room wiring plans, and integrated control infrastructure that require clean organization and standards-based cable performance.

For installation planning, this cable is relevant to facilities that need shielded 23 AWG 4 pair CAT 6A cable with a white jacket, plenum rating, and documented industry standards for commercial AV and control wiring applications.

Why Professionals Use This Type of Product

• Supports standards-based CAT 6A cabling infrastructure
• Provides shielded construction for demanding low-voltage environments
• Meets plenum cable requirements for appropriate building pathways
• Uses solid bare copper conductors for professional installation work
• Helps keep AV control cable systems organized and consistent

Additional Compatibility Information

Windy City Wire CAT6ASP-WHT is a CAT 6A shielded plenum cable for AV control, Crestron plenum cabling, commercial low-voltage wiring, and professional structured category cable installations. Its 23 AWG 4 pair FTP construction, white FRPVC jacket, and plenum CMP listing make it a strong match for projects that require verified CAT 6A shielded cable performance.
