Windy City Wire CAT6ASP-BLK 23 AWG Shielded Plenum Category 6A Cable, Black

Shielded Plenum CAT6A Cable for Crestron and Pro AV Control

Windy City Wire CAT6ASP-BLK is a shielded Category 6A plenum cable built for professional AV, lighting control, room automation, and commercial low-voltage installations. It is designed for Crestron-based control environments, networked AV endpoints, lighting control networks, and other building automation applications where stable data and control transport are required in plenum spaces.

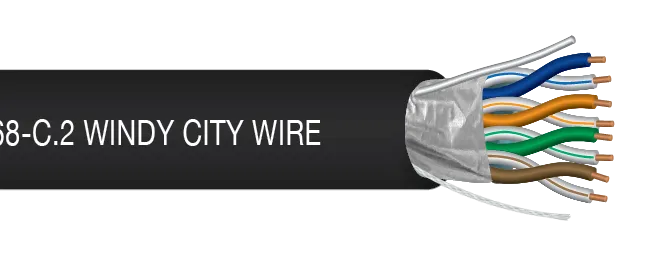

This cable uses a 23 AWG, 4 twisted pair construction with solid bare copper conductors, FTP foil shielding, a 24 AWG solid tinned copper drain wire, FEP insulation, and a black FRPVC jacket. It is plenum rated as ETL Type CMP and is identified for standards including C(ETL), TIA/EIA, NFPA 70, and ISO 11801, making it appropriate for code-conscious commercial installations.

For system integrators, CAT6ASP-BLK provides a dependable shielded cable platform for lighting control, AV over IP infrastructure, control processors, touch panels, keypads, encoders, decoders, DSPs, displays, and other networked endpoints located in ceilings, equipment rooms, racks, and return-air plenum spaces.

The cable features a nominal jacket outside diameter of 0.273 inches, 100 ohm input impedance, and a maximum operating frequency of 500 MHz. Its shielded construction helps support clean signal performance in dense cable pathways and electrically noisy environments commonly found in professional AV and building control projects.

Key Features

• 23 AWG, 4 twisted pair shielded Category 6A plenum cable
• Solid bare copper conductors for professional low-voltage infrastructure
• FTP foil-shielded construction with 24 AWG solid tinned copper drain wire
• Black FRPVC jacket with 0.273 inch nominal jacket outside diameter
• ETL Type CMP plenum rating for commercial air-handling spaces
• 500 MHz maximum operating frequency with 100 ohm input impedance

Professional Applications

• Crestron lighting control and room automation networks
• Commercial AV over IP and control infrastructure
• Touch panels, keypads, control processors, and network bridges
• Digital signage, video wall, display, and endpoint control
• Corporate, education, hospitality, worship, government, and industrial facilities

System Integration

CAT6ASP-BLK fits into larger professional AV and building automation systems as a shielded plenum Category 6A cable for control, data, and networked endpoint connectivity. It can be used alongside Crestron control systems, lighting controllers, gateways, network switches, encoders, decoders, DSPs, displays, touch panels, and other equipment that depends on structured low-voltage cabling in commercial environments.

Broadcast Workflow Benefits

In professional AV and production environments, dependable cable infrastructure reduces commissioning issues and helps keep control, monitoring, signage, and networked media systems organized. The shielded plenum construction supports cleaner signal paths in busy equipment rooms, ceiling spaces, and rack-to-device runs where AV, lighting, control, and building systems often share nearby pathways.

Frequently Asked Questions

What type of cable is Windy City Wire CAT6ASP-BLK?

CAT6ASP-BLK is a 23 AWG, 4 twisted pair, shielded Category 6A plenum cable with a black FRPVC jacket.

Is CAT6ASP-BLK plenum rated?

Yes. CAT6ASP-BLK is identified as an ETL Type CMP plenum cable for use in commercial plenum spaces where CMP-rated low-voltage cable is required.

What conductors does this cable use?

This cable uses 23 AWG solid bare copper conductors with FEP insulation and a 24 AWG solid tinned copper drain wire.

What is the shielding construction?

CAT6ASP-BLK uses FTP foil-shielded construction with a polyolefin and aluminum shield to help maintain signal integrity in demanding AV and control environments.

Where is this cable commonly used?

It is commonly used for Crestron-based control networks, lighting control, room automation, AV over IP infrastructure, digital signage control, and networked AV endpoints in commercial plenum spaces.

Related Equipment and Workflow Compatibility

This cable is relevant for professional AV and control environments that include Crestron-based deployments, lighting controllers, room automation processors, keypads, sensors, network switches, displays, encoders, decoders, DSPs, and matrix or switching equipment located in plenum-rated pathways.

It is also suited for larger facility workflows where AV, lighting, digital signage, automation, and building management systems need organized shielded cabling across rooms, floors, racks, and ceiling spaces.

Why Professionals Use This Type of Product

• Supports structured Category 6A cabling for professional AV and control systems
• Provides shielded construction for improved noise resistance in dense pathways
• Meets plenum installation needs for commercial air-handling spaces
• Helps standardize cable infrastructure across rooms, floors, and facilities
• Supports reliable deployment of networked AV, lighting control, and automation endpoints

Additional Compatibility Information

Windy City Wire CAT6ASP-BLK is a shielded plenum CAT6A cable for Crestron lighting control, Pro AV cable infrastructure, AV over IP systems, room automation networks, digital signage control, and commercial low-voltage installations requiring 23 AWG solid bare copper Category 6A cabling.
