Features

• Very high image quality
  The long-lasting Z-Phosphor laser light source is coupled with Sony's acclaimed BrightEra 3LCD projection engine to ensure bright, high-quality images with vivid, natural color reproduction.　

• Minimal maintenance
  The laser light source offers up to 20,000 hours* of operation without lamp exchange, reducing maintenance needs compared with traditional projectors. Near-zero maintenance is complemented by a range of energy-saving features that significantly drive down total lifetime ownership costs.

  * Depending on usage environment.

• Consistent brightness
  Experience consistent image brightness throughout the laser light source's 20,000 hours recommended lifespan.

• Full HD resolution images
  Equipped with the latest scaler chip, Full HD image quality is achieved ensuring all your content looks its best, whether it's PC presentations, video or signage.

• Networked control and monitoring

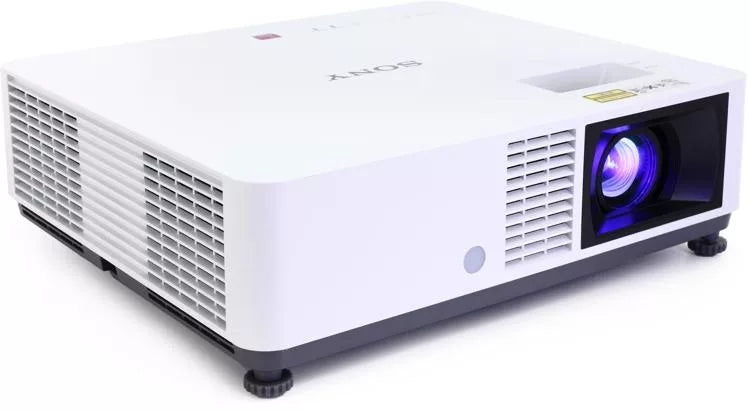

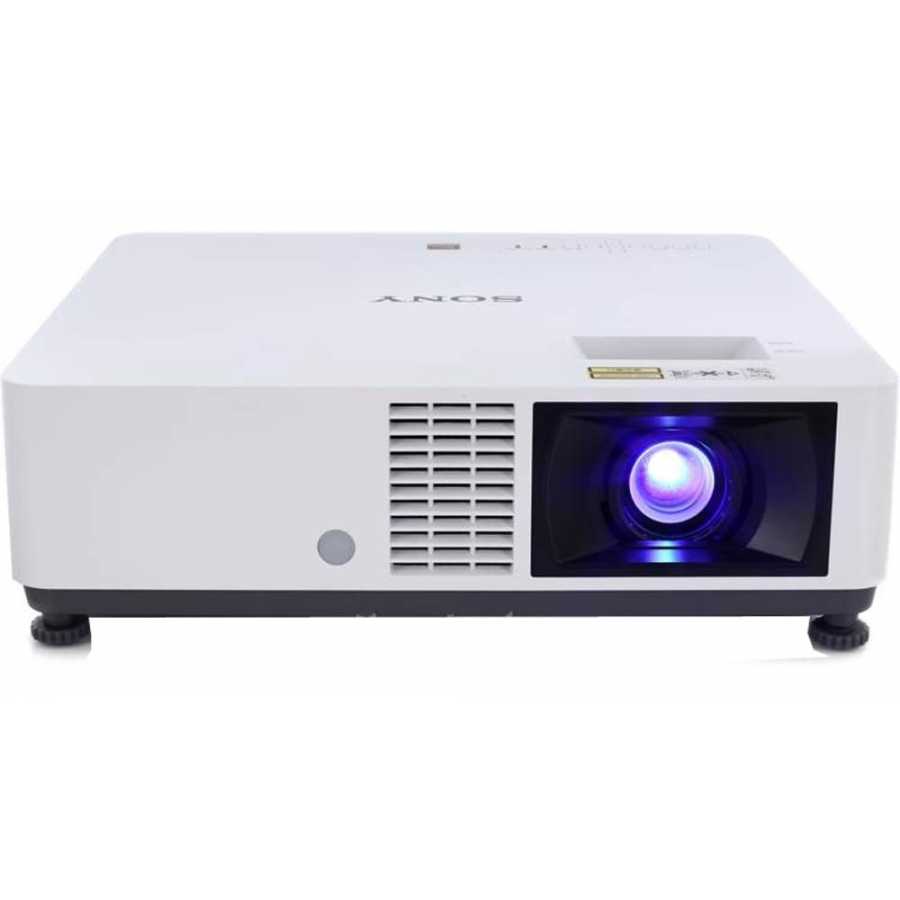

  The VPL-CWZ10 is ideal for integration in AV environments with leading control, monitoring and management systems such as Crestron Connected™ and Extron® XTP™ Systems.*

  * Extron and XTP Systems are trademarks of RGB Systems Inc.

• Stylish blend-in design
  The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.

Specifications

Accepted signal resolution

• Computer signal input: Maximum signal resolution: 1920 x 1200 *2
• Video signal input: NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i
  The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p

Acoustic Noise

• Lamp Mode: Standard / Middle / Low: 36 dB / 32 dB / 28 dB

Color System

• Color System: NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Color light output

• Mode: Standard: 5,000 lm

Contrast ratio (full white / full black) *1

• Contrast ratio (full white / full black): ∞: 1

Dimensions (W x H x D)

• Dimensions (W x H x D) (without protrusions): Approx. 371 x 100 x 319.3 mm (14 19/32 x 3 15/16 x 12 9/16 inches)

Display device

• Number of pixels: 3,072,000 (1280 x 800 x 3) pixels
• Size of effective display area: 16.3 mm (0.64") x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Display system

• Display system: 3 LCD system

Displayable scanning frequency

• Horizontal　: 15 kHz to 92 kHz
• Vertical: 48 Hz to 92 Hz

Filter cleaning / replacement cycle (Max.)

• Filter cleaning / replacement cycle (Max.):  Standard mode: 1,000 H (cleaning)

Heat dissipation

• AC 100 V to 120 V: 1,167 BTU/h
• AC 220 V to 240 V: 1112 BTU/h

INPUT OUTPUT (Computer/Video/Audio/Control)

• INPUT A: RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
  Audio input connector: Stereo mini jack
• INPUT B: HDMI input connector: HDMI 19-pin, HDCP support
  Audio input connector: HDMI audio support
• INPUT C: HDMI input connector: HDMI 19-pin, HDCP support
  Audio input connector: HDMI audio support
• LAN: RJ45, 10BASE-T/100BASE-TX
• OUTPUT: Audio output connector: Stereo mini jack
• REMOTE: D-sub 9-pin (male) / RS232C
• USB: TYPE-A (Only for FW upgrade)
• VIDEO IN: Video input connector: Phono Jack
  Audio input connector: Shared with INPUT A

Keystone correction (Max.)

• Horizontal: +/- 30 degrees
• Vertical: +/- 30 degrees

Light output

• Mode: Standard: 5,000 lm

Light source

• Type: Laser diode

Mass

• Mass: Approx. 5.7 kg (13 lb)

Notes

• *1: The value is average
• *2: Available for VESA Reduced Blanking signal.

Operating temperature / Operating humidity

• Operating temperature / Operating humidity: 0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)

Power Consumption

• AC 100 V to 120 V: Mode: Standard: 342 W
• AC 220 V to 240 V: Mode: Standard: 326 W

Power Consumption (Networked Standby Mode)

• AC 100 V to 120 V: 2 W ("Remote Start" is set to "On," when "Standby Mode" is set to "Low")
  15 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
• AC 220 V to 240 V: 2 W ("Remote Start" is set to "On," when "Standby Mode" is set to "Low")
  15 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

Power Consumption (Standby Mode)

• AC 100 V to 120 V: 0.5 W (when "Standby mode" is set to "Low")
• AC 220 V to 240 V: 0.5 W (when "Standby mode" is set to "Low")

Power requirements

• Power requirements: AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz

Projection lens

• Focus: Manual
• Lens shift: N/A (Lens Offset Vertical +37%)
• Throw ratio: 1.29:1 to 2.07:1
• Zoom - Powered/Manual: Manual
• Zoom - Ratio: Approx. x 1.6

Screen size

• Screen size: 40" to 300" (1.02 m to 7.62 m)

Speaker

• Speaker: 16 W (monaural)

Standby Mode / Networked Standby Mode Activated

• Standby Mode / Networked Standby Mode Activated: Approx. 10 Minutes

Storage temperature / Storage humidity

• Storage temperature / Storage humidity: -10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)

Supplied accessories

• Remote commander: RM-PJ8
