Regular price
Retail: $9,500.00
AVE Price
AVE Price: $5,699.05
AVE Member Price:
$5,129.15
/

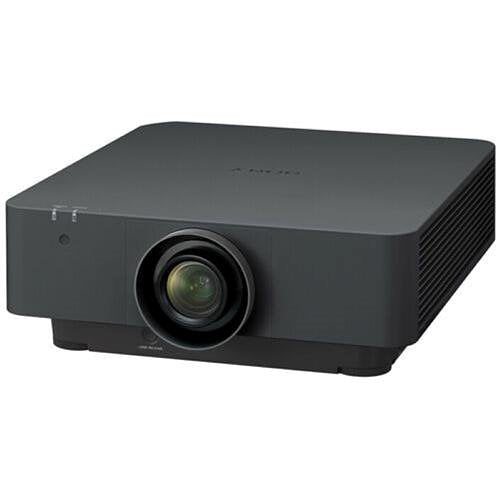

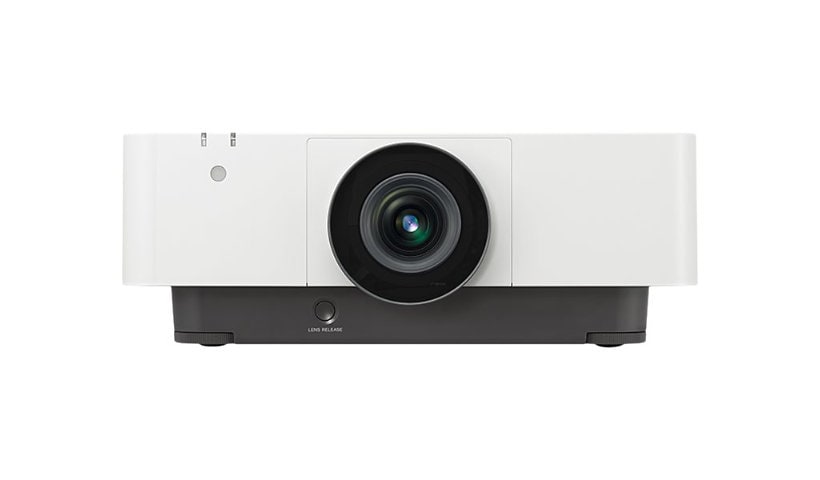

Powerful, compact, light, and superbly styled, these 3LCD laser projectors are bursting with the latest Sony innovations to deliver consistently rich, bright, colorful images. With versatile installation options and reduced maintenance, they’re ideal for projection in mid-size corporate, education, and public environments. The VPL-FHZ85/FHZ80 has already received multiple industry awards.
Display system
Display system
3 LCD system
Display device
Size of effective display area
New LCD panel 19 mm (0.76 in) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels
6,912,000 (1920 x 1200 x 3) pixels
Projection lens *1
Focus
Powered
Zoom - Powered/Manual
Powered
Zoom - Ratio
Approx. x 1.6
Throw ratio
1.39:1 to 2.23:1
Lens shift - Powered/Manual
Powered
Lens shift - Range Vertical
-5%, +70%
Lens shift - Range Horizontal
+/- 32%
Light source
Type
Laser diode
Screen size
Screen size
40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)
Light output *2
Mode: Standard
6000 lm*3/6500 lm (Center)*4
Mode: Middle
4800 lm
Mode: Low
-
Color light output*2
Mode: Standard
6000 lm
Mode: Middle
4800 lm
Mode: Low
-
Time until light output declines to 50%*5
Mode: Standard
20000 hours
Mode: Middle
30,000 hours
Contrast ratio (full white / full black) *2
Contrast ratio (full white / full black)
∞:1
Displayable scanning frequency
Horizontal
15 kHz to 93 kHz
Vertical
23 Hz to 63 Hz
Accepted signal resolution
Computer signal input
Maximum signal resolution: 1920 x 1200 *6
Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 3840/60p, 3840/30p, 3840/25p, 3840/24p, 4096/60p, 4096/30p, 4096/25p, 4096/24p
Keystone correction (Max.)
Horizontal
+/- 30 degrees
Vertical
+/- 30 degrees

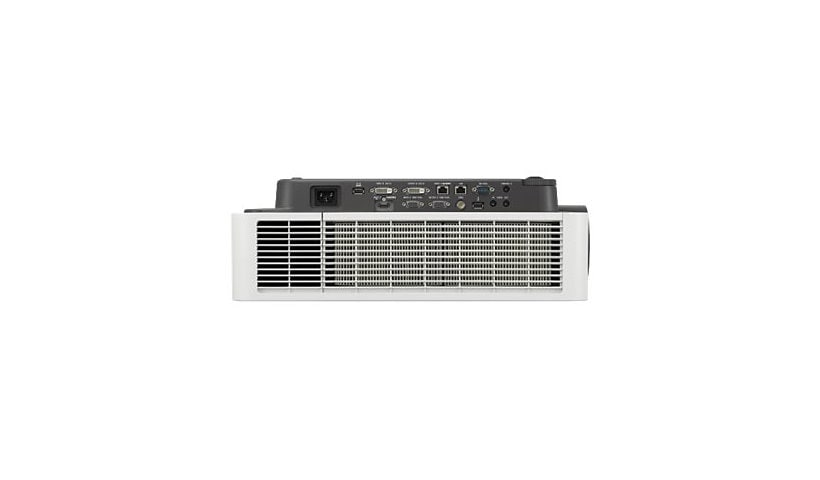

INPUT OUTPUT (Computer/Video/Audio/Control)
INPUT A
RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
Audio input connector: Stereo mini jack
INPUT B
DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with INPUT A
Audio input connector: Shared with INPUT A
INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
Audio input connector: HDMI audio support
INPUT D
HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
VIDEO IN
Video input connector: BNC
Audio input connector: Shared with input A
Audio input connector: Shared with input A
OUTPUT A
Monitor output for Input A Connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack
Audio output connector: Stereo mini jack
OUTPUT B
Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported
Audio output, Monitor out connector: Stereo mini jack
Audio output, Monitor out connector: Stereo mini jack
REMOTE
D-sub 9-pin (male) / RS232C
LAN
RJ45, 10BASE-T/100BASE-TX
IR (Control S)
Stereo mini jack, Plug in power DC5V
USB
TYPE-A (for F/W update) , TYPE-A (for Power supply)
Acoustic Noise *2
Acoustic Noise (Mode: Standard/Middle)
36 dB/34 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity
0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity
-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
Power requirements
Power requirements
AC 100 V to 240 V, 5.1 A to 2.2 A, 50 Hz/60 Hz
Power consumption
AC 100 V to 120 V
Mode: Standard: 397 W
AC 220 V to 240 V
Mode: Standard: 378 W
Power consumption (Standby Mode)
AC 100 V to 120 V
0.5W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V
0.5W (when “Standby mode” is set to “Low”)
Power consumption (Networked Standby Mode)
AC 100 V to 120 V
9.8 W (LAN)
10.6 W (HDBaseT)
10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
10.6 W (HDBaseT)
10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
AC 220 V to 240 V
10.9 W (LAN)
11.6 W (HDBaseT)
11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
11.6 W (HDBaseT)
11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes
Heat dissipation
AC 100 V to 120 V
1,355 BTU/h
AC 220 V to 240 V
1,290 BTU/h
Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions)
460 x 169 x 494 mm
18 1/8 x 6 3/4 x 19 1/2 inches
18 1/8 x 6 3/4 x 19 1/2 inches
Mass
Mass
Approx. 13 kg (28 lb)
Optional accessories
Projection Lens
VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032
Notes
*1
With supplied standard lens
*2
The figures are approximate. They vary depending on the environment or how the projector is used.
*3
The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
*4
The value is light output measured at center area of screen in Standard mode, and average of all products shipped.
*5
Estimated time until light output declines to 50% varies depending on environment.
*6
Available for VESA Reduced Blanking signal.
Free shipping on non-freight items. In-stock items typically ship within 2-3 business days.
