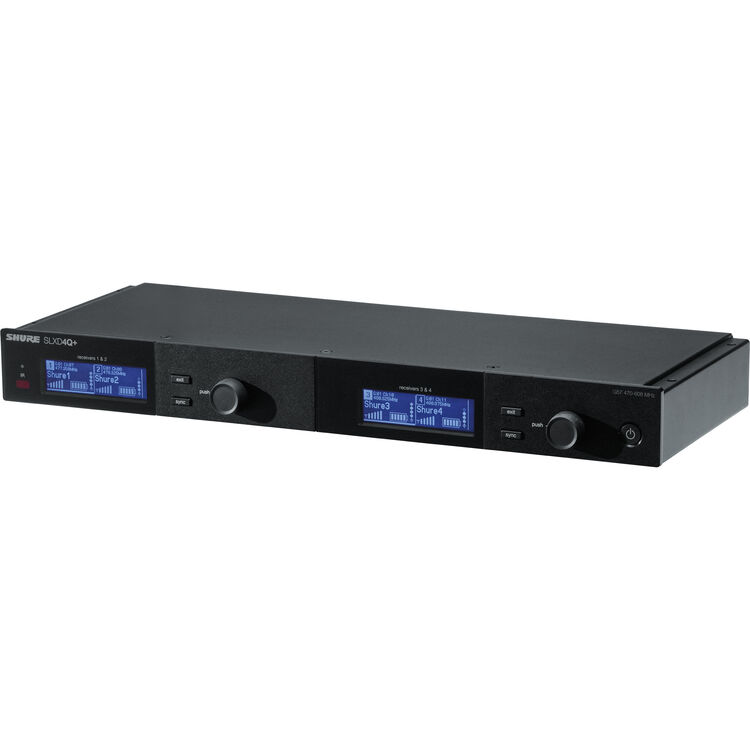

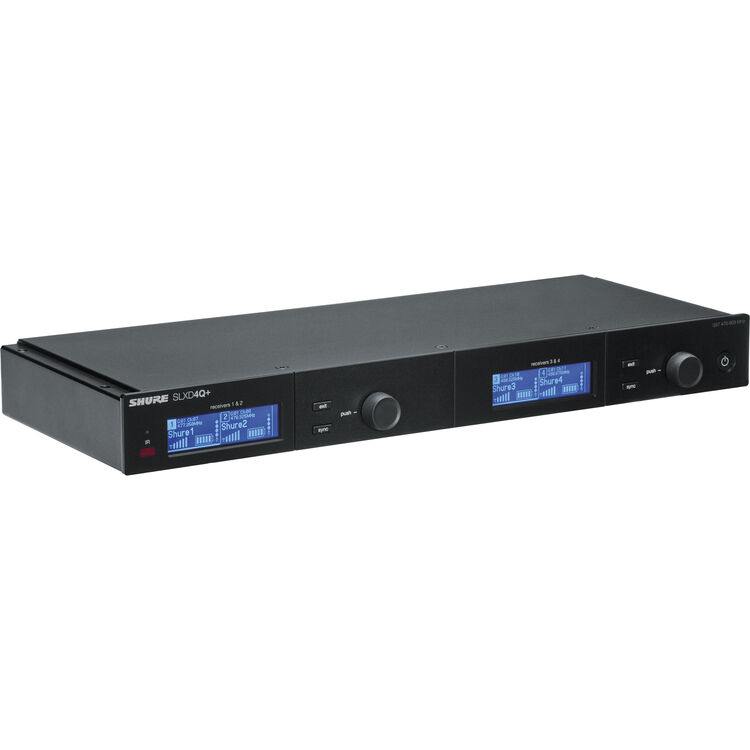

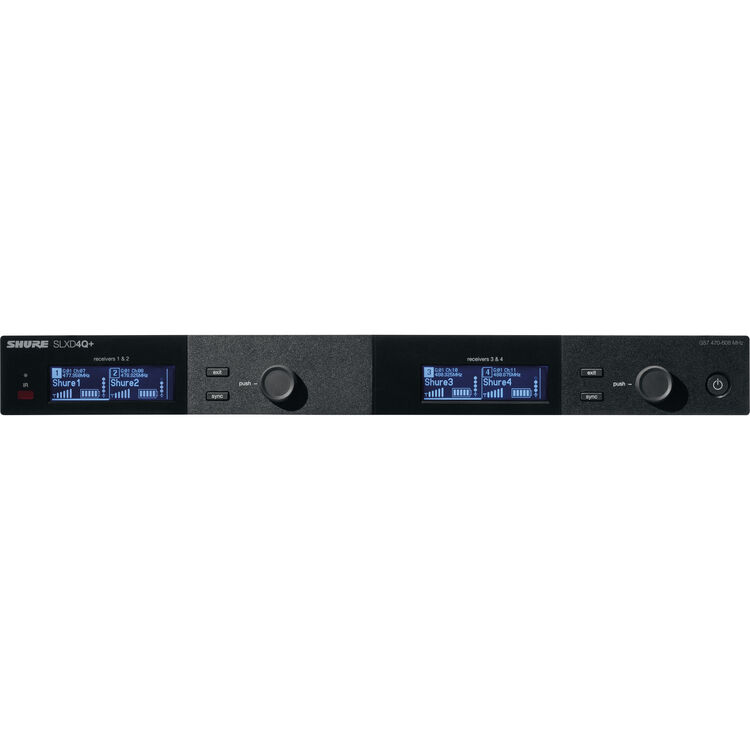

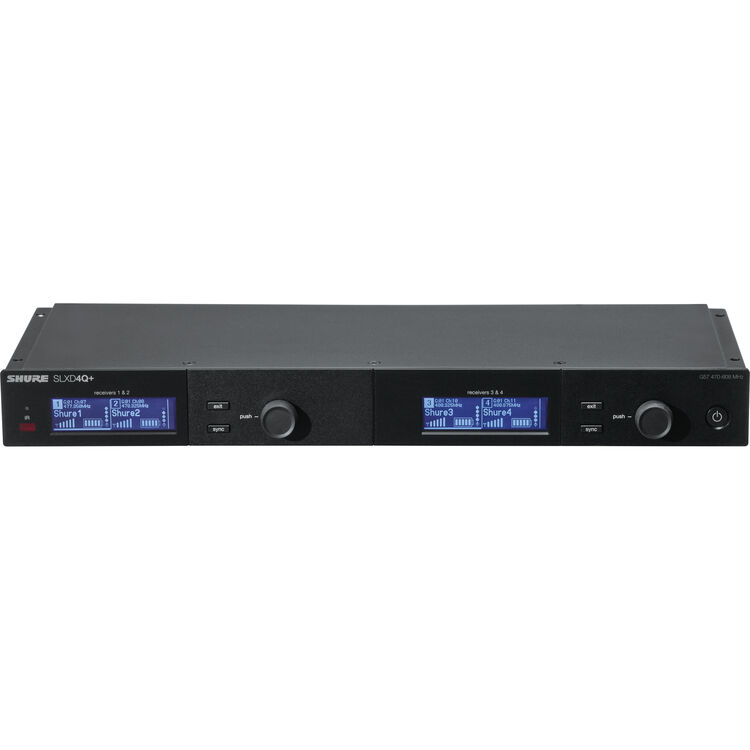

Shure SLXD4Q+ Quad-Channel Digital Wireless Rackmount Receiver (TAA Compliant, G57: 470 to 608 MHz)

Four-channel SLX-D+ digital wireless receiver for professional rack systems

The Shure SLXD4Q+ is a professional quad-channel digital wireless receiver designed for live sound, installed audio, broadcast, and house of worship applications. Its full-rack, 1U chassis combines four receiver channels in one space-efficient unit, helping production teams build organized multichannel wireless systems with fewer individual receivers, cables, and rack accessories.

Operating in the G57 frequency range from 470 to 608 MHz, the receiver delivers transparent 24-bit digital audio with greater than 118 dB of dynamic range and a regionally dependent tuning range of up to 138 MHz. Each channel provides a balanced 3-pin XLR mic or line output and an unbalanced 1/4-inch output, while AES-256 encryption helps protect wireless audio transmission.

The SLXD4Q+ works with compatible SLX-D+ bodypack, handheld, and plug-on transmitters. Integrated ShowLink Ease technology supports two-way communication with compatible transmitters, enabling remote frequency changes, gain adjustments, control locking, interference response, synchronization, and over-the-air firmware updates without requiring physical access to each transmitter.

Wireless Workbench desktop software and the Wireless Workbench Mobile app provide system monitoring and configuration options for professional installations. Dual Ethernet connections support network integration, while RF Cascade allows as many as three SLXD4Q+ receivers to be linked into a 12-channel system without separate RF distribution accessories.

Key Features

• Four digital wireless receiver channels in a full-rack 1U chassis
• G57 frequency range covering 470 to 608 MHz
• Transparent 24-bit digital audio with greater than 118 dB dynamic range
• ShowLink Ease control for compatible SLX-D+ transmitters
• Integrated Digital Feedback Reduction with dynamic notch filtering

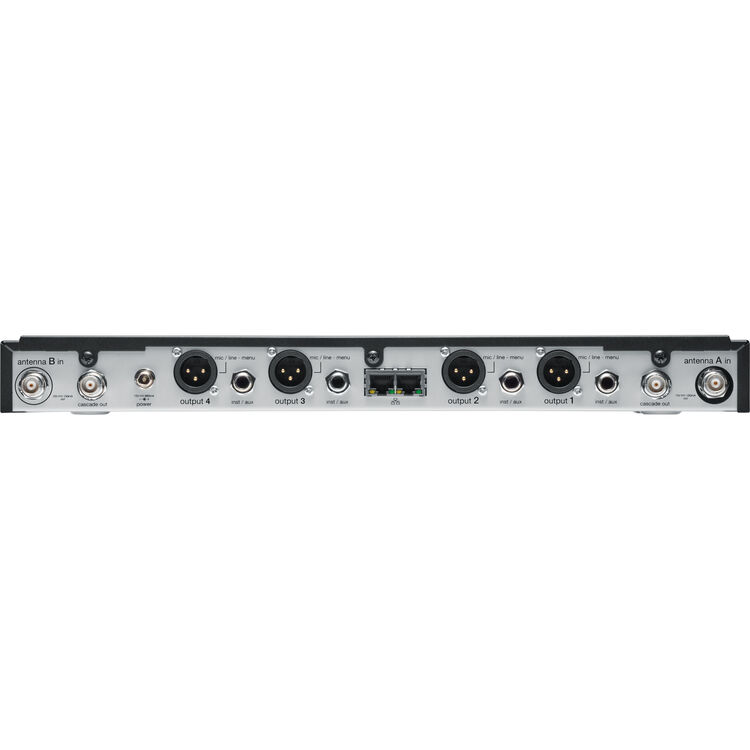

• Four balanced XLR outputs, four 1/4-inch outputs, and dual Ethernet connections

Professional Applications

• House of worship multichannel wireless microphone systems
• Live sound systems for venues, theaters, and touring productions
• Broadcast studios and professional production facilities
• Corporate meeting spaces, auditoriums, and installed AV systems
• High-channel-count wireless racks for events and rental operations

System Integration

The SLXD4Q+ provides a scalable foundation for Shure SLX-D+ wireless systems. It can receive signals from compatible SLXD1+ bodypack transmitters, SLXD2+ handheld transmitters, and SLXD3+ plug-on transmitters. Audio summing allows the receiver to provide streamlined output routing when required, while RF Cascade can connect up to three quad-channel receivers for a 12-channel deployment. Wireless Workbench integration, mobile monitoring, and dual Ethernet ports help engineers manage the receiver within larger networked wireless installations.

Broadcast Workflow Benefits

Combining four channels into one rack unit reduces the space, cabling, and accessory requirements associated with installing separate single-channel receivers. Remote transmitter management allows engineers to make frequency, gain, locking, and firmware changes from the receiver or connected software, which is especially valuable when transmitters are already placed on performers, presenters, or production personnel. Integrated Digital Feedback Reduction can also improve system stability in live environments with changing microphone positions and acoustic conditions.

Frequently Asked Questions

How many wireless channels does the SLXD4Q+ receive?

The SLXD4Q+ receives four digital wireless audio channels within a single full-rack, 1U chassis.

Which frequency range does this version cover?

This G57 version operates from 470 to 608 MHz and provides a tuning range of up to 138 MHz, depending on the operating region.

Which transmitters work with the SLXD4Q+?

The receiver is designed for use with compatible SLX-D+ transmitters, including SLXD1+ bodypack, SLXD2+ handheld, and SLXD3+ plug-on transmitter models.

Can multiple SLXD4Q+ receivers share an RF signal?

Yes. RF Cascade allows up to three SLXD4Q+ receivers to be linked together, creating a 12-channel system without additional RF distribution accessories.

Does the receiver support remote transmitter control?

Yes. ShowLink Ease provides two-way communication with compatible transmitters for remote frequency changes, gain adjustment, control locking, automatic clean-frequency deployment, synchronization, and over-the-air firmware updates.

Related Equipment and Workflow Compatibility

The SLXD4Q+ is designed for professional systems built around the Shure SLX-D+ wireless platform. Compatible transmitter options include bodypack models for lavalier microphones, headset microphones, and instrument cables, handheld models with interchangeable Shure microphone capsules, and plug-on models for XLR microphones.

The receiver also integrates with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app for monitoring, configuration, interference management, and system control. Its rackmount design, Ethernet networking, RF Cascade capability, and independent audio outputs make it suitable for both permanent installations and portable production racks.

Why Professionals Use This Type of Product

• Combines four wireless channels into one organized rackmount receiver
• Reduces rack space, cabling, and accessory requirements
• Supports remote management of compatible wireless transmitters
• Provides balanced outputs for independent professional audio routing
• Scales into larger networked and cascaded wireless systems

Additional Compatibility Information

The Shure SLXD4Q+ G57 is a TAA-compliant quad-channel digital UHF wireless receiver for 470 to 608 MHz SLX-D+ systems. It supports compatible Shure bodypack, handheld, and plug-on transmitters while providing ShowLink Ease management, Wireless Workbench integration, AES-256 encryption, audio summing, Digital Feedback Reduction, and RF Cascade for professional live sound, broadcast, installed AV, and house of worship applications.
