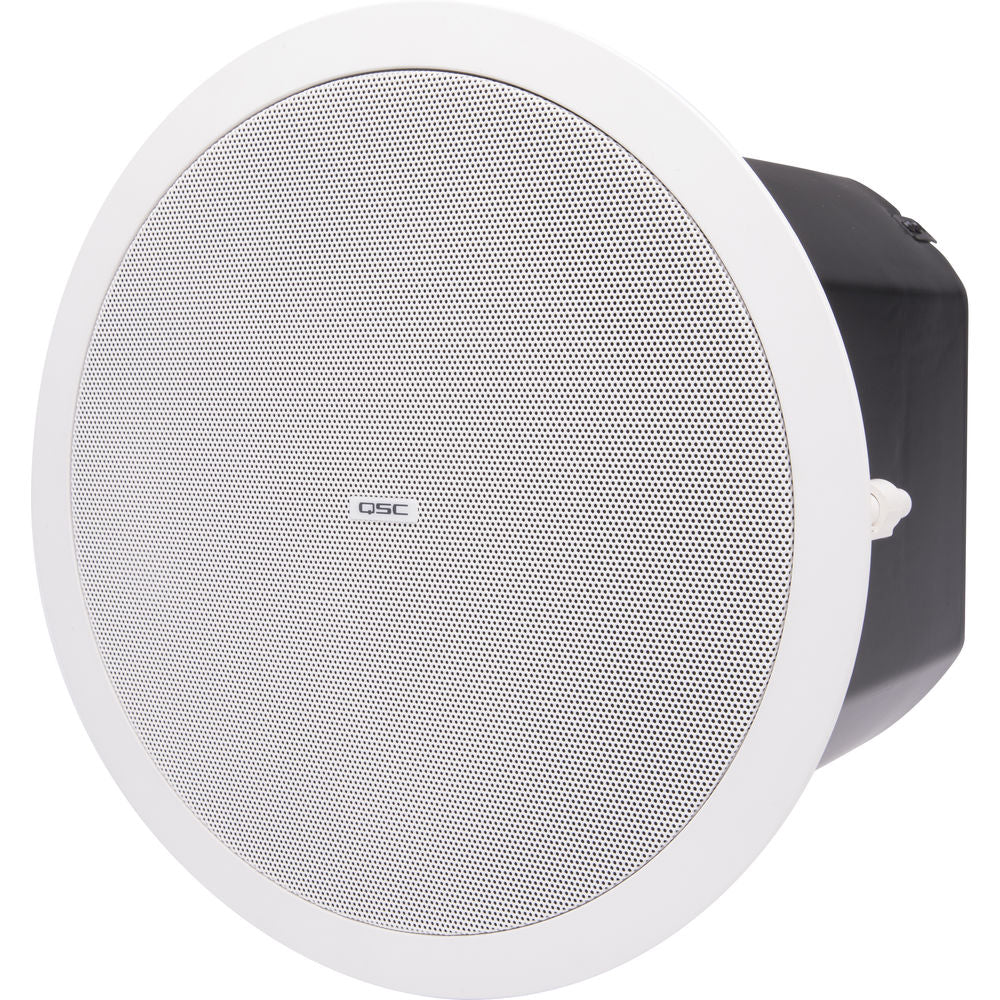

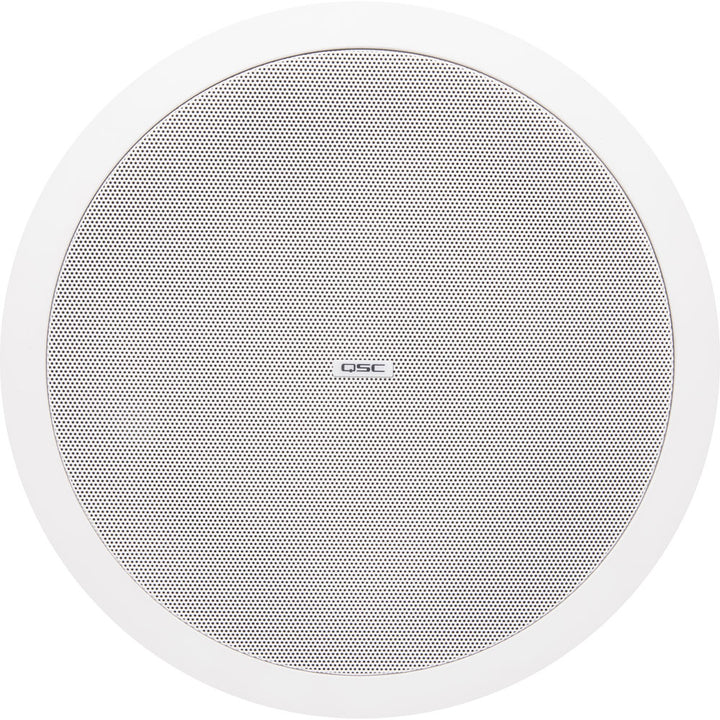

QSC AD-C.SUB 6.5-Inch Small-Format Passive Ceiling Subwoofer White - B-STOCK

Passive In-Ceiling Subwoofer for Professional Background Music Systems

The QSC AD-C.SUB is a small-format passive ceiling subwoofer designed for professional background music applications that require refined low-frequency depth and clarity, even at lower volume settings. Finished in white and built for in-ceiling installation, it provides a compact bass solution for distributed audio and commercial installed sound systems.

The AD-C.SUB features a 6.5-inch dual voice-coil weather-treated paper cone woofer designed for improved thermal dissipation and higher output. It delivers a 45 Hz to 150 Hz effective frequency range, 100W rated power handling, 86 dB sensitivity, and maximum output up to 111 dB peak. A low-saturation, low-loss 70/100V transformer provides selectable taps and a 4-ohm bypass for flexible system configuration.

Four built-in high-pass filtered outputs allow the AD-C.SUB to connect with up to four QSC AcousticDesign SUB/SAT satellite loudspeakers. This design can reduce setup time, amplifier channel requirements, and wiring complexity while supporting mix-and-match combinations of subwoofers and satellites within the AcousticDesign SUB/SAT line.

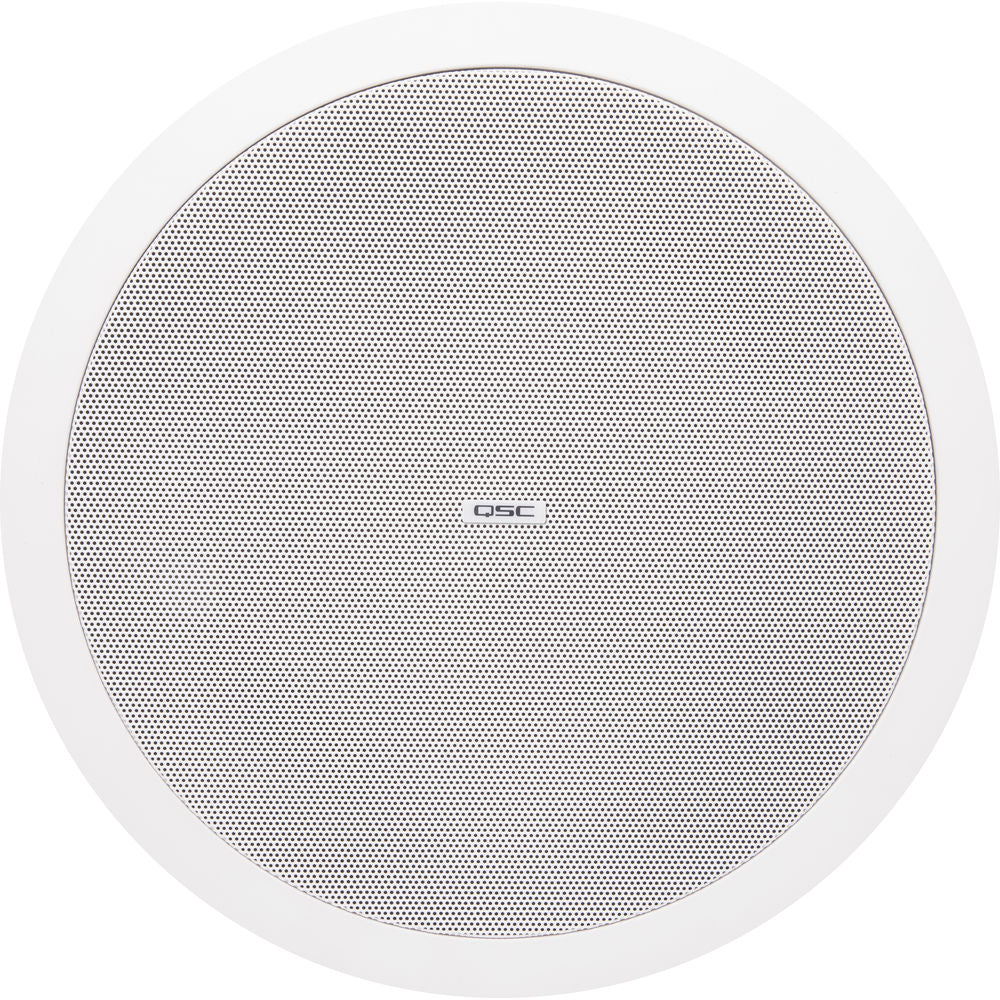

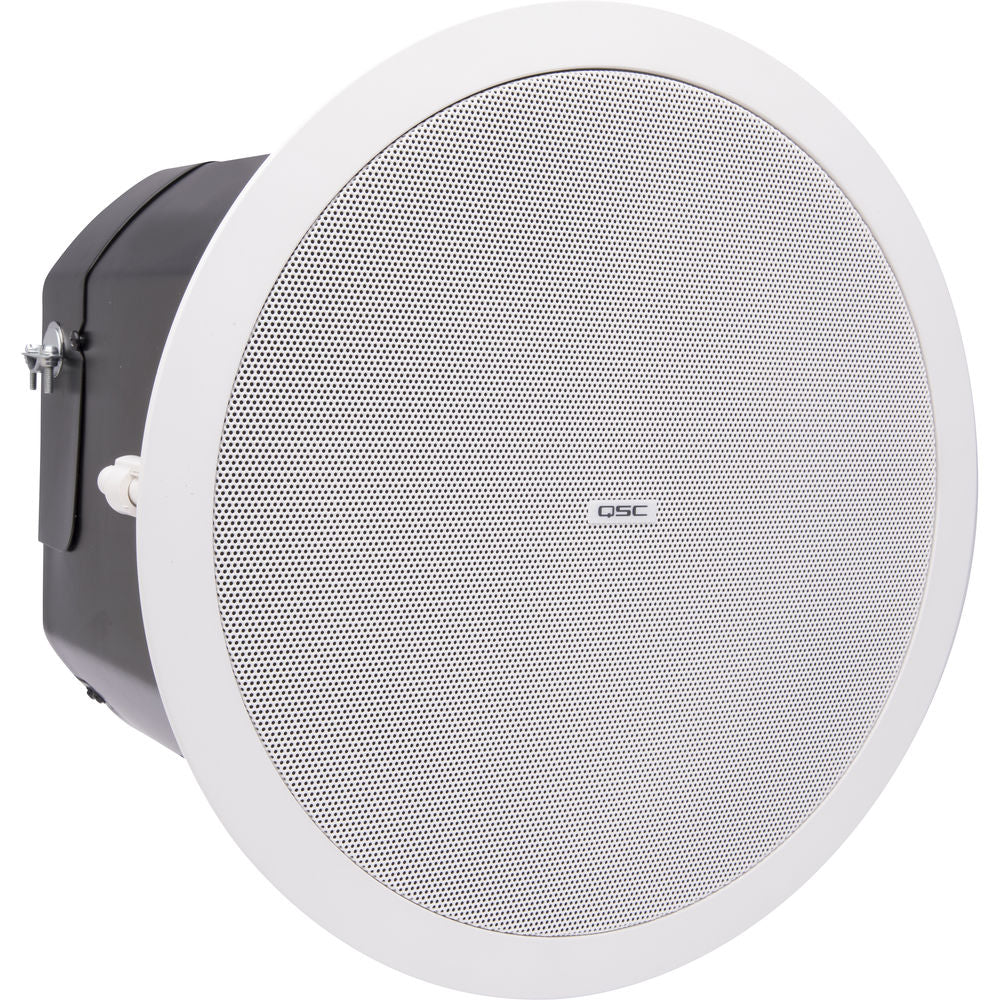

Locking 4-pole Euroblock connectors, a removable conduit cover plate, four long-travel dog-ear blind mounts, and a snap-fit magnetic powder-coated steel grille support professional ceiling installation. Intrinsic Correction voicings are available through MP-M Series mixers and the Q-SYS Platform.

Key Features

• Passive 6.5-inch in-ceiling subwoofer with dual voice-coil woofer
• 100W rated power handling with 4-ohm bypass
• Low-loss 70/100V transformer with selectable power taps
• 45 Hz to 150 Hz effective frequency range
• Four built-in high-pass filtered outputs for up to four AcousticDesign SUB/SAT satellites
• Locking 4-pole Euroblock connectors and long-travel dog-ear blind mounting system

Professional Applications

• Background music systems
• Commercial in-ceiling audio installations
• Distributed sound systems
• Music and paging system integration
• QSC AcousticDesign SUB/SAT loudspeaker systems

System Integration

The QSC AD-C.SUB integrates into professional distributed audio systems as a passive in-ceiling subwoofer with support for 70V, 100V, and 4-ohm system configurations. Four built-in high-pass filtered outputs can connect up to four AcousticDesign SUB/SAT satellite loudspeakers, helping reduce amplifier channel count and simplifying wiring. Intrinsic Correction voicings are available through MP-M Series mixers and the Q-SYS Platform for compatible QSC system designs.

Broadcast Workflow Benefits

For professional installed audio applications, the AD-C.SUB combines low-frequency reinforcement and satellite system connectivity in a single ceiling-mounted design. Built-in high-pass filtered outputs help simplify SUB/SAT wiring, while selectable transformer taps and 4-ohm bypass provide flexibility for distributed and low-impedance audio system designs.

Frequently Asked Questions

Is the QSC AD-C.SUB powered or passive?

The QSC AD-C.SUB is a passive ceiling subwoofer and requires appropriate external amplification.

What size woofer does the AD-C.SUB use?

The AD-C.SUB features a 6.5-inch dual voice-coil weather-treated paper cone woofer.

Does the QSC AD-C.SUB support 70V and 100V systems?

Yes. The subwoofer includes a low-loss 70/100V transformer with selectable taps and also provides a 4-ohm bypass option.

Can satellite loudspeakers connect directly to the AD-C.SUB?

Yes. The AD-C.SUB includes four built-in high-pass filtered outputs for connecting up to four QSC AcousticDesign SUB/SAT satellite loudspeakers.

What is included with the QSC AD-C.SUB?

The AD-C.SUB ships with C-rings and tile rails, rail screws, three Euroblock connectors, a cut-out template, and a magnetic grille.

Related Equipment and Workflow Compatibility

The QSC AD-C.SUB is designed for use with the AcousticDesign SUB/SAT loudspeaker line. SUB/SAT loudspeakers are mix-and-match capable, allowing AcousticDesign subwoofers and satellite loudspeakers in the line to be combined for professional background music system designs.

Intrinsic Correction voicings are available through QSC MP-M Series music and paging mixers and the Q-SYS Platform. The built-in high-pass filtered outputs support connection of up to four compatible AcousticDesign SUB/SAT satellite loudspeakers from the subwoofer.

Why Professionals Use This Type of Product

• Adds compact low-frequency reinforcement to in-ceiling audio systems
• Supports 70V, 100V, and 4-ohm system configurations
• Simplifies SUB/SAT system wiring with four built-in high-pass filtered outputs
• Provides selectable transformer taps for distributed audio installations
• Supports professional ceiling installation with Euroblock connectivity and blind mounting hardware

Additional Compatibility Information

The QSC AD-C.SUB white passive ceiling subwoofer is designed for professional background music, distributed audio, and commercial installed sound systems. Its 6.5-inch dual voice-coil woofer, 100W power handling, 70/100V transformer, 4-ohm bypass, high-pass filtered satellite outputs, and AcousticDesign SUB/SAT compatibility make it a flexible in-ceiling subwoofer for QSC professional audio installations.
