QSC AD-C.SAT 2.75-Inch Small-Format Passive Ceiling Satellite Loudspeakers White Pair (B-STOCK)

Compact Passive Ceiling Satellite Loudspeakers for Background Music Systems

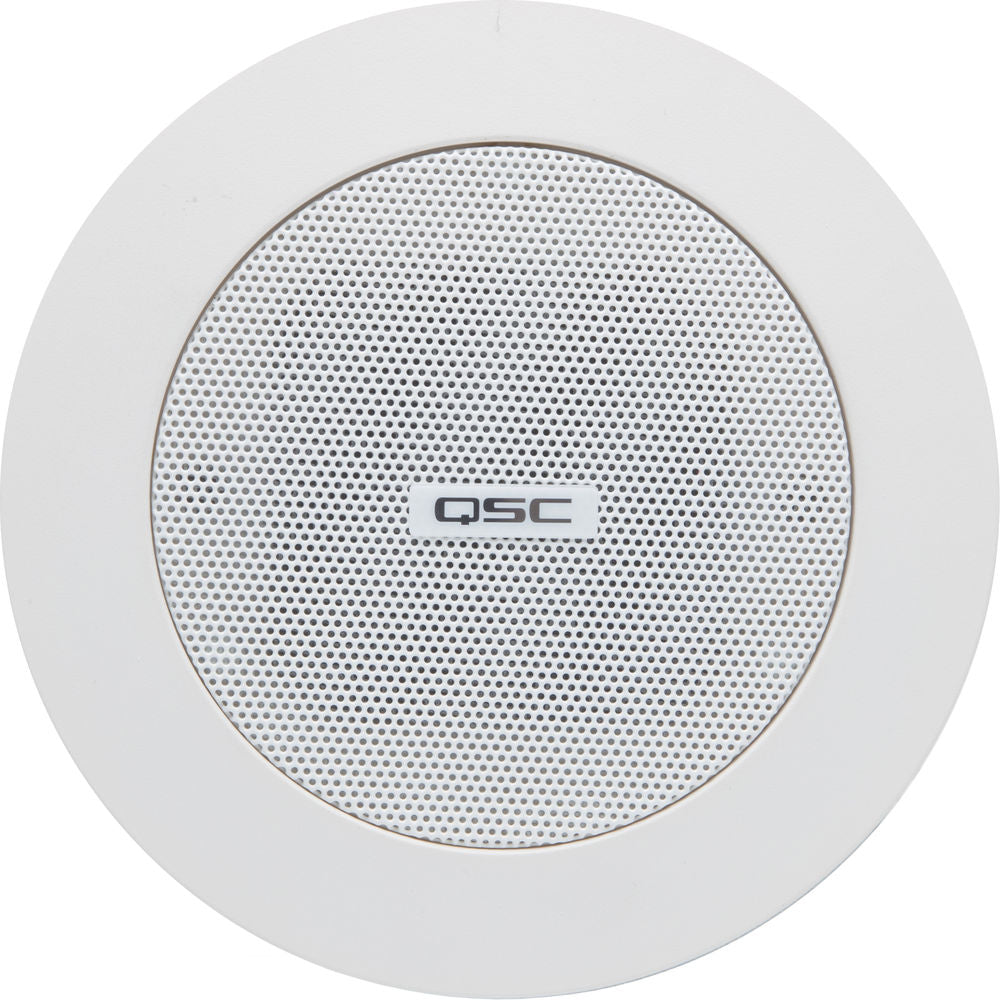

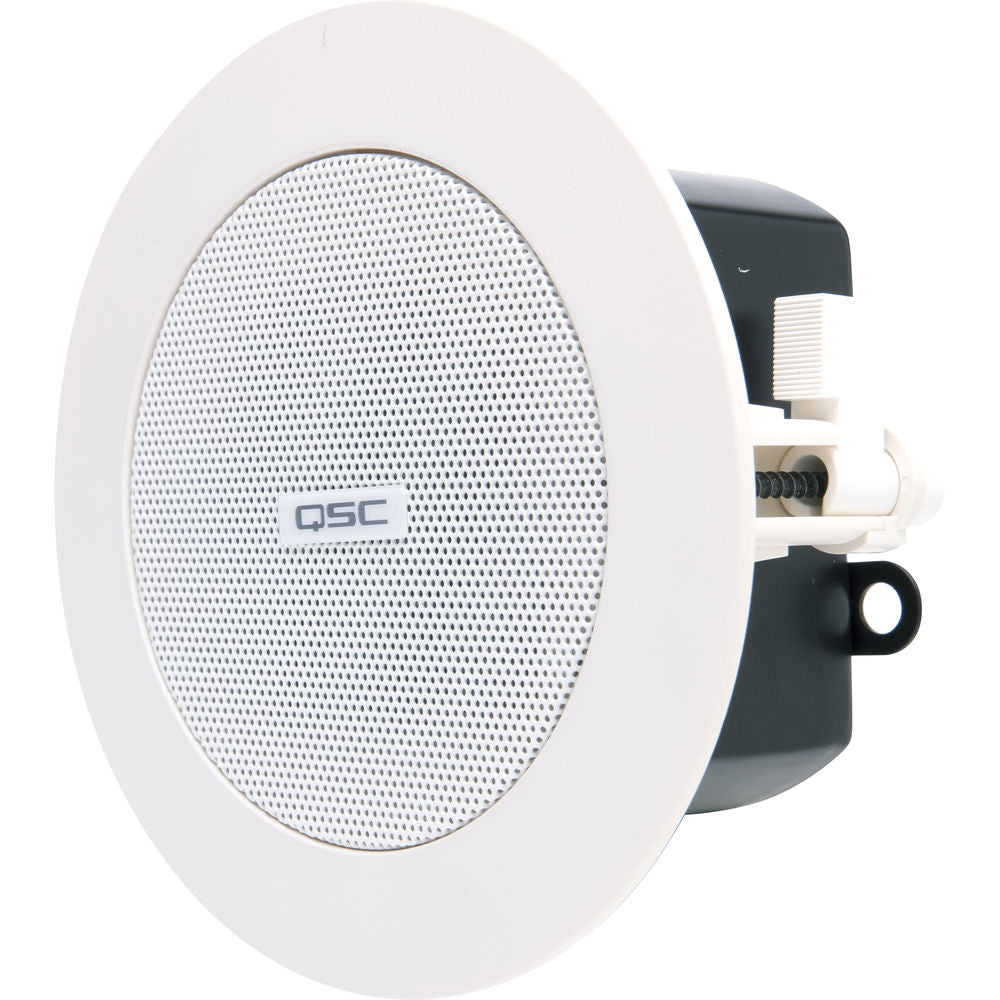

The QSC AD-C.SAT is a pair of small-format passive ceiling satellite loudspeakers designed for background music applications that require refined depth and clarity, even at lower volume settings. Part of the QSC AcousticDesign Series, these compact white loudspeakers provide a professional in-ceiling audio solution for installed sound environments.

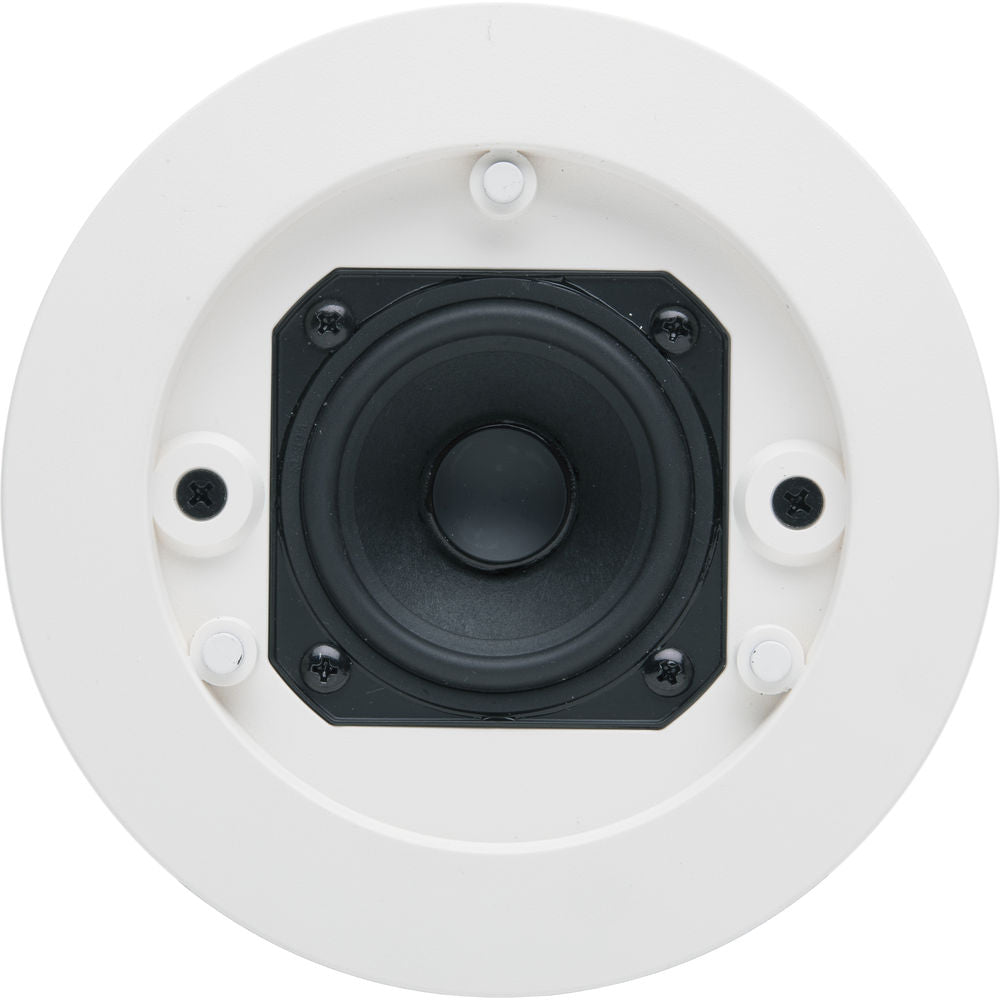

Each AD-C.SAT features a 2.75-inch full-range driver with an inverted aluminum dome dust cap, 25W power handling, and 16-ohm impedance. The loudspeaker provides a 120 Hz to 20 kHz frequency range and 170-degree conical coverage, supporting broad audio distribution from a compact ceiling-mounted design.

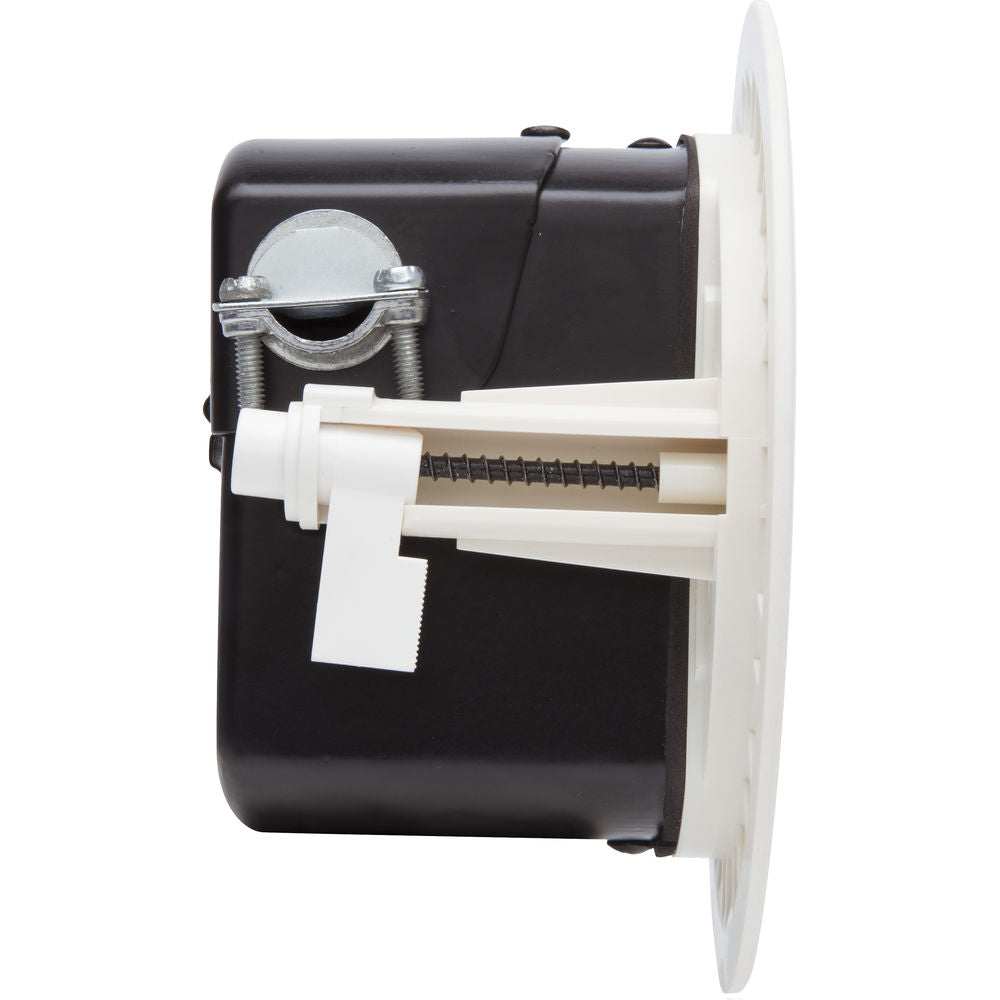

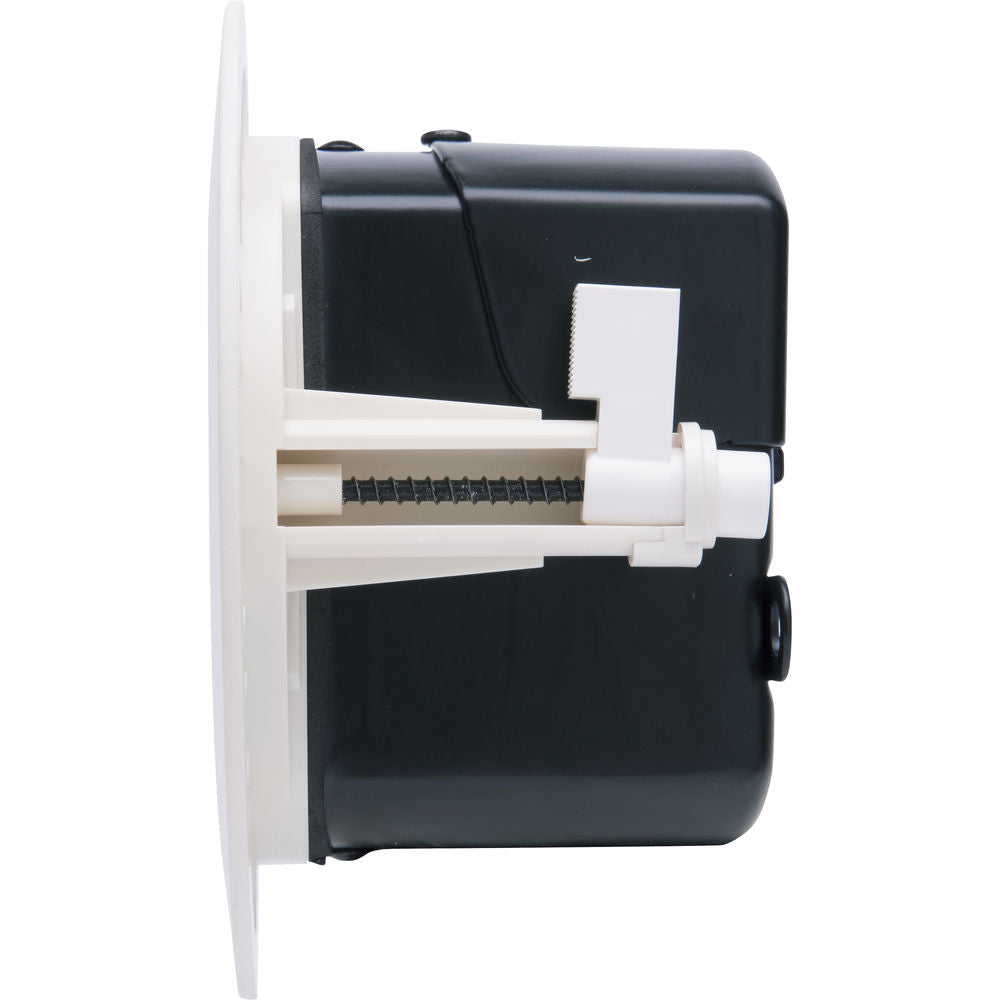

The AD-C.SAT is designed as part of the QSC AcousticDesign SUB/SAT loudspeaker system. QSC SUB/SAT satellites and subwoofers are mix-and-match capable, allowing any satellite to be paired with any subwoofer in the SUB/SAT line. Locking 2-pole Euroblock-style connectors and a long-travel dog-ear blind mount system support professional installation workflows.

Intrinsic Correction voicings are available through Q-SYS platforms, including CXD-Q Series amplifiers, and can also be deployed through MP-M Series music and paging mixers. Snap-fit magnetic grilles, removable logos, removable conduit cover plates, and included C-rings provide additional installation flexibility.

Key Features

• 2.75-inch full-range passive ceiling satellite loudspeaker design
• 25W power handling with 16-ohm impedance
• 120 Hz to 20 kHz frequency range
• 170-degree conical coverage for broad audio distribution
• Locking 2-pole Euroblock-style input and thru connections
• Mix-and-match compatible with subwoofers in the QSC AcousticDesign SUB/SAT line

Professional Applications

• Background music systems
• Commercial in-ceiling audio installations
• Music and paging system integration
• Distributed audio systems
• QSC AcousticDesign SUB/SAT loudspeaker systems

System Integration

The QSC AD-C.SAT integrates into AcousticDesign SUB/SAT systems as a compact passive ceiling satellite loudspeaker. Any satellite in the SUB/SAT line can be paired with any subwoofer in the same line, giving system designers flexibility when configuring background music systems. Intrinsic Correction voicings can be deployed through MP-M Series music and paging mixers and Q-SYS platforms, including CXD-Q Series amplifiers.

Broadcast Workflow Benefits

For professional installed audio workflows, the AD-C.SAT combines compact ceiling placement with broad 170-degree conical coverage and refined performance at low volume settings. Its Euroblock-style connections, blind mount system, magnetic grille, and available Intrinsic Correction voicings help streamline installation and system configuration in distributed audio environments.

Frequently Asked Questions

Is the QSC AD-C.SAT a powered or passive loudspeaker?

The QSC AD-C.SAT is a passive loudspeaker and is rated for 25W power handling at 16 ohms.

What size driver does the AD-C.SAT use?

The loudspeaker uses a 2.75-inch full-range driver with an inverted aluminum dome dust cap.

What is the coverage angle of the QSC AD-C.SAT?

The AD-C.SAT provides 170-degree conical coverage.

Can the AD-C.SAT be used with QSC AcousticDesign subwoofers?

Yes. The AcousticDesign SUB/SAT loudspeakers are mix-and-match capable, allowing any satellite to be paired with any subwoofer in the SUB/SAT line.

What installation accessories are included with the AD-C.SAT?

The pair ships with two C-rings, two Euroblock connectors, two cut-out templates, and two grilles.

Related Equipment and Workflow Compatibility

The QSC AD-C.SAT is designed for use within the AcousticDesign SUB/SAT loudspeaker line. Its mix-and-match system design allows the satellite loudspeakers to be paired with any subwoofer in the SUB/SAT line for professional background music and distributed audio applications.

Intrinsic Correction voicings are available through Q-SYS platforms, including CXD-Q Series amplifiers, and through MP-M Series music and paging mixers. This supports integration into complete QSC installed audio systems using compatible QSC processing and amplification platforms.

Why Professionals Use This Type of Product

• Provides compact in-ceiling audio coverage for background music systems
• Delivers refined depth and clarity at lower volume settings
• Supports flexible SUB/SAT system configuration
• Provides broad 170-degree conical coverage
• Supports professional installation with Euroblock connections and blind mounting hardware

Additional Compatibility Information

The QSC AD-C.SAT passive ceiling satellite loudspeaker pair is designed for professional background music, distributed audio, and installed sound systems. Its 2.75-inch full-range driver, 16-ohm impedance, 25W power handling, 170-degree conical coverage, and AcousticDesign SUB/SAT compatibility make it a compact ceiling speaker solution for QSC professional audio installations.
