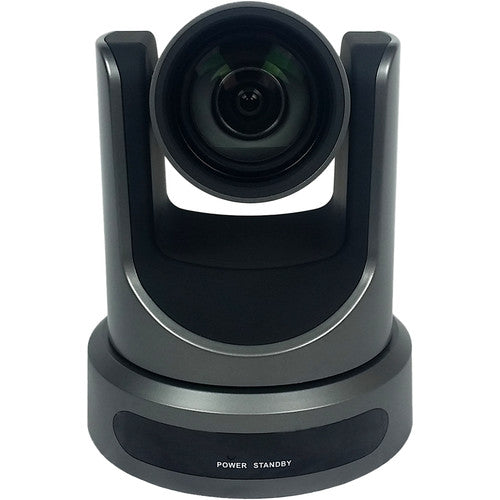

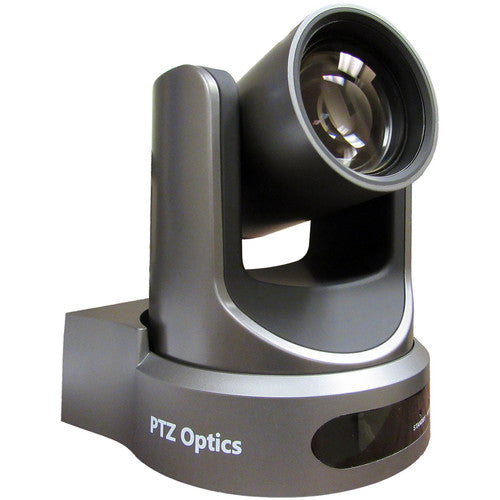

PTZOptics 12x-SDI Gen2 Live Streaming Camera Gray (B-STOCK)

1080p60 PTZ Camera with 12x Optical Zoom and 3G-SDI Output

The PTZOptics 12x-SDI Gen2 Live Streaming Camera is a professional PTZ camera designed for broadcast conferencing, live streaming, and network video production. Finished in gray, the camera combines remote pan, tilt, and zoom control with Full HD video output for professional systems that require flexible camera positioning and centralized operation.

The camera features a 1/2.7-inch 2.1MP CMOS sensor and a 3.5 to 42.3mm lens with 12x optical zoom. It supports 1080p video at up to 60/50 fps and provides 3G-SDI, HDMI, LAN, and composite video outputs. The SDI, LAN, and HDMI outputs can operate simultaneously at the same selected resolution, supporting professional switching, monitoring, and streaming workflows.

Network streaming supports H.264 and H.265 HD and SD dual streams or a single MJPEG stream through the LAN port. The camera also provides a 3.5mm audio input for embedding audio into an HDMI signal or LAN stream, and the LAN connection supports streaming, camera control, and Power over Ethernet.

Control options include LAN network control, ONVIF, and RS-232 with VISCA commands. The camera supports up to 64 presets internally or up to 255 presets through RS-232, and it can be used on a desktop or ceiling mounted with an optional PTZOptics ceiling-mount bracket.

Key Features

• Full HD 1080p video at up to 60/50 fps
• 12x optical zoom with 3.5 to 42.3mm lens
• 3G-SDI, HDMI, LAN, and composite video outputs
• H.264, H.265, and MJPEG network streaming support
• LAN, ONVIF, RS-232, and VISCA camera control options
• LAN port supports streaming, control, and Power over Ethernet

Professional Applications

• Live streaming production
• Broadcast conferencing systems
• Professional video switching workflows
• Network-controlled multi-camera productions
• Desktop and ceiling-mounted PTZ camera installations

System Integration

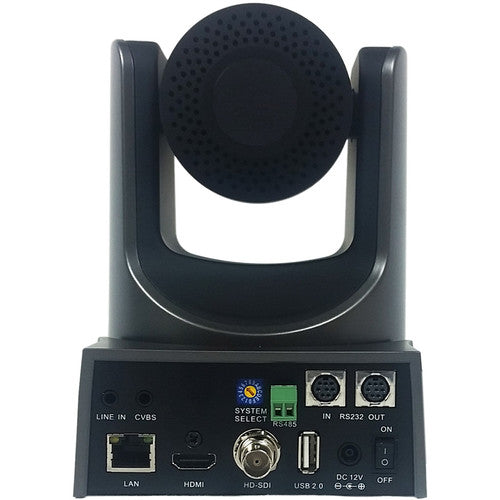

The PTZOptics 12x-SDI Gen2 integrates into professional video systems through 3G-SDI, HDMI, and LAN connectivity. SDI supports connection to professional switching equipment, while LAN connectivity provides IP streaming, network control, and Power over Ethernet. RS-232 input and output with daisy-chain capability and an RS-485 port provide additional control options for professional multi-camera environments.

Broadcast Workflow Benefits

The camera allows SDI, LAN, and HDMI outputs to remain simultaneously active at the same selected resolution, giving production teams multiple video paths from a single PTZ camera. Remote camera control and preset positioning help operators quickly recall camera views, while the 12x optical zoom supports both wider meeting views and closer subject framing.

Frequently Asked Questions

What resolution does the PTZOptics 12x-SDI Gen2 support?

The camera supports Full HD 1080p video at up to 60/50 fps.

How much optical zoom does this PTZOptics camera provide?

The camera provides 12x optical zoom through its 3.5 to 42.3mm lens.

What video outputs are available on the PTZOptics 12x-SDI Gen2?

The camera provides 3G-SDI, HDMI, LAN, and composite video outputs. SDI, LAN, and HDMI can be used simultaneously at the same selected resolution.

Does the camera support Power over Ethernet?

Yes. The LAN port supports Power over Ethernet in addition to network streaming and camera control.

How can the PTZOptics 12x-SDI Gen2 be controlled?

The camera supports control through the LAN port over a network, ONVIF over a network, and RS-232 using VISCA commands. It also includes an IR remote control.

Related Equipment and Workflow Compatibility

The PTZOptics 12x-SDI Gen2 is designed for professional video switching, broadcast conferencing, and IP streaming environments. Its 3G-SDI output can connect to professional switching equipment, and RS-232 control supports operation with NewTek TriCaster systems, including TriCaster Mini models.

The camera supports desktop placement or ceiling mounting with an optional PTZOptics ceiling-mount bracket. Network streaming and control capabilities also support professional IP-based video workflows using the camera's LAN connection.

Why Professionals Use This Type of Product

• Provides remotely controlled pan, tilt, and zoom for professional video production
• Supports Full HD 1080p video at up to 60/50 fps
• Offers simultaneous SDI, LAN, and HDMI video outputs
• Provides 12x optical zoom for flexible camera framing
• Supports IP streaming, network control, and professional serial control workflows

Additional Compatibility Information

The PTZOptics 12x-SDI Gen2 PTZ camera is designed for 1080p live streaming, broadcast conferencing, professional video switching, and network-controlled camera systems. Its 12x optical zoom, 3G-SDI output, HDMI connectivity, H.264 and H.265 IP streaming, PoE support, ONVIF control, and RS-232 VISCA control provide flexible integration for professional PTZ video production workflows.
