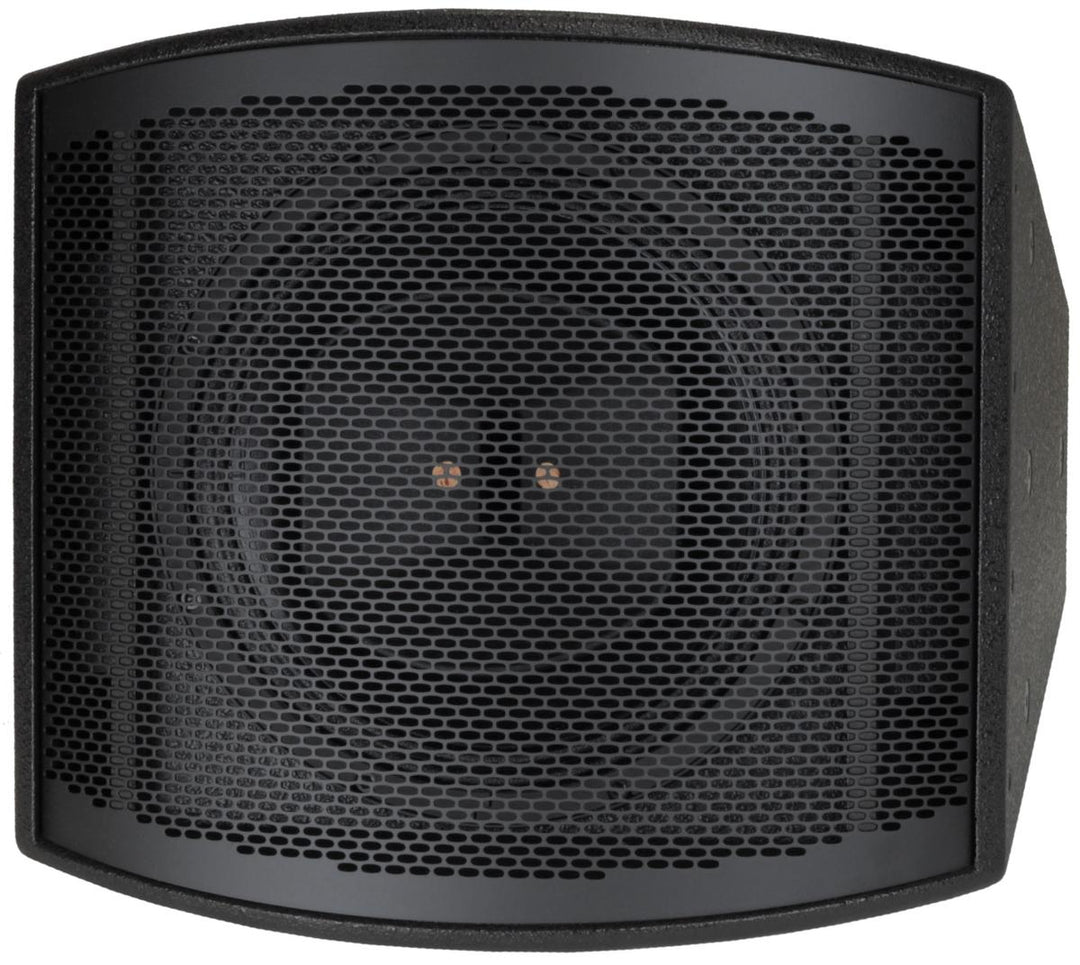

Fulcrum Acoustic CCX1226 12-Inch Subcardioid Coaxial Loudspeaker (B-STOCK)

Passive 12-Inch Coaxial Loudspeaker with 120° x 60° Rotatable Coverage

The Fulcrum Acoustic CCX1226 is a passive subcardioid coaxial loudspeaker designed for professional sound reinforcement applications that require strong output, broad pattern control, and a compact enclosure. Its vertically trapezoidal design allows the loudspeaker to be installed close to ceilings or beneath large arrays with minimal effect on sight lines, making it well suited for demanding professional audio environments.

The CCX1226 provides 9 dB of low-frequency attenuation in the rear hemisphere and combines a powerful single-neodymium-magnet coaxial transducer with a 120° horizontal by 60° vertical horn. The coaxial transducer and horn can be rotated in 45° increments, allowing coverage to be tailored to the requirements of the installation. The loudspeaker is rated at 8 ohms with 400 watts of power handling, 103 dB sensitivity, and a maximum SPL of 129 dB.

With a specified frequency response from 71 Hz to 20 kHz, the CCX1226 delivers the output capability and pattern control associated with premium 2-way systems in a significantly more compact enclosure. Its unusually broad coverage pattern is particularly suited for center-channel use in L-C-R systems and for solving difficult fill coverage requirements.

The horizontally and vertically symmetrical design supports flexible system planning, while the rotatable horn provides installers and audio system designers with additional control over loudspeaker coverage orientation.

Key Features

• Passive 12-inch subcardioid coaxial loudspeaker
• Provides 9 dB of low-frequency attenuation in the rear hemisphere
• 120° horizontal by 60° vertical horn coverage
• Coaxial transducer and horn rotate in 45° increments
• 400-watt power handling at 8 ohms with 103 dB sensitivity
• 129 dB maximum SPL and 71 Hz to 20 kHz frequency response

Professional Applications

• Center-channel loudspeaker use in L-C-R systems
• Professional fill loudspeaker applications
• Under-balcony sound reinforcement
• Compact installed sound systems
• Professional audio systems requiring broad controlled coverage

System Integration

The Fulcrum Acoustic CCX1226 integrates into professional sound reinforcement systems as a passive coaxial loudspeaker requiring external amplification. Its 8-ohm impedance and 400-watt power handling support professional amplifier and system design workflows, while the rotatable 120° x 60° horn allows system designers to adjust coverage orientation in 45° increments. Its compact vertically trapezoidal enclosure supports installation close to ceilings or beneath larger loudspeaker arrays.

Broadcast Workflow Benefits

Professional audio systems often require precise coverage without placing large enclosures in visually sensitive locations. The CCX1226 combines subcardioid low-frequency behavior, broad horn coverage, and a compact enclosure to help system designers address challenging fill and center-channel applications. Rear hemisphere low-frequency attenuation can also provide additional control over low-frequency energy behind the loudspeaker.

Frequently Asked Questions

Is the Fulcrum Acoustic CCX1226 a powered or passive loudspeaker?

The CCX1226 is a passive loudspeaker and requires external amplification.

What is the coverage pattern of the CCX1226?

The loudspeaker provides 120° horizontal by 60° vertical nominal coverage. The coaxial transducer and horn can be rotated in 45° increments to tailor coverage orientation.

What does subcardioid mean for the CCX1226?

The CCX1226 provides 9 dB of low-frequency attenuation in the rear hemisphere, giving the loudspeaker controlled low-frequency behavior behind the enclosure.

What is the power handling of the CCX1226?

The CCX1226 is rated for 400 watts of power handling and has an 8-ohm impedance.

Where can the CCX1226 be used in a professional sound system?

Its broad coverage pattern is suited for center-channel use in L-C-R systems, difficult fill applications, installation close to ceilings, and placement beneath large arrays.

Related Equipment and Workflow Compatibility

The Fulcrum Acoustic CCX1226 is part of the CX Series and is designed for professional passive loudspeaker systems using external amplification. Its compact coaxial configuration provides output capability and pattern control in installations where a more compact enclosure is beneficial.

Its broad 120° x 60° pattern and rotatable horn support system designs requiring tailored coverage, including L-C-R center-channel systems and challenging fill applications. The vertically trapezoidal enclosure also supports placement close to ceilings or beneath larger loudspeaker arrays with minimal impact on sight lines.

Why Professionals Use This Type of Product

• Provides controlled rear low-frequency attenuation with a subcardioid design
• Delivers broad 120° x 60° coverage from a compact enclosure
• Allows horn orientation to be adjusted in 45° increments
• Supports demanding fill and L-C-R center-channel applications
• Combines 400-watt power handling with up to 129 dB maximum SPL

Additional Compatibility Information

The Fulcrum Acoustic CCX1226 passive coaxial loudspeaker is designed for professional installed sound, L-C-R audio systems, under-balcony coverage, and fill loudspeaker applications. Its 12-inch coaxial design, subcardioid low-frequency performance, 120° x 60° rotatable horn, 8-ohm impedance, and compact trapezoidal enclosure support professional sound reinforcement systems requiring broad and adjustable coverage.
