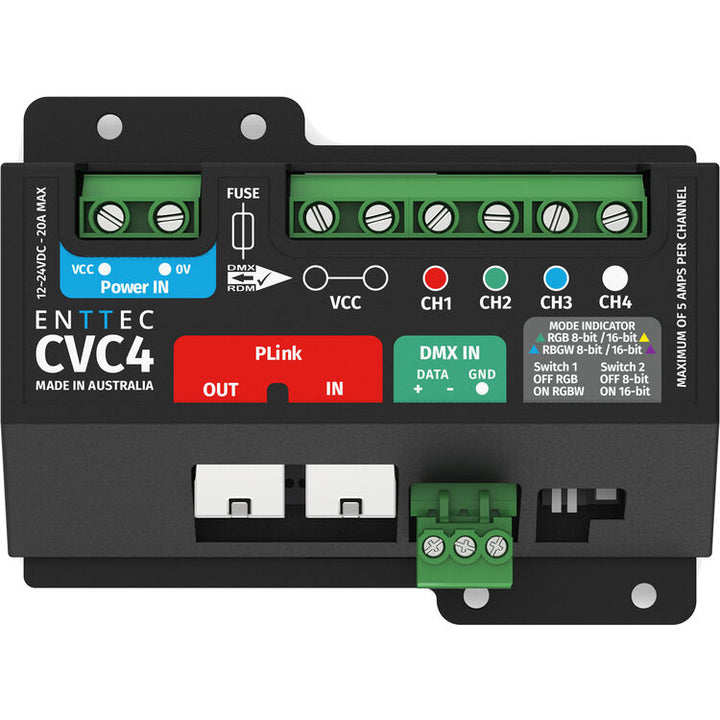

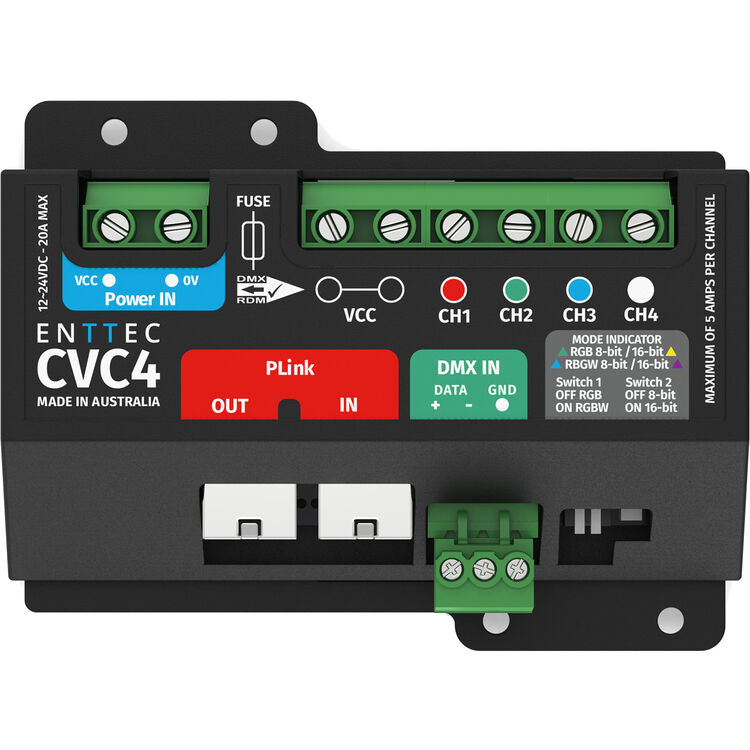

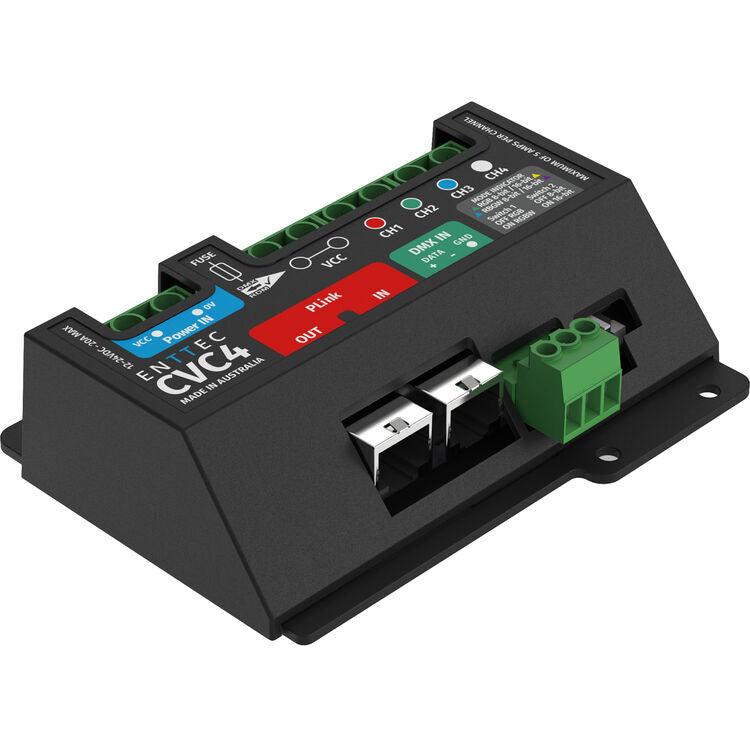

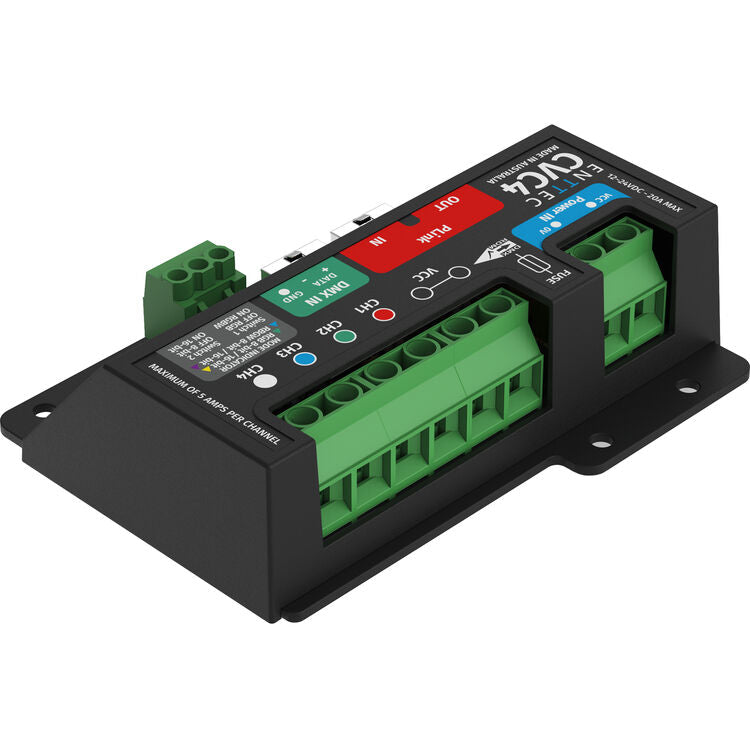

ENTTEC CVC4 Constant Voltage Dimmer

4-Channel Constant Voltage LED Dimmer for DMX and PLink Control

The ENTTEC CVC4 Constant Voltage Dimmer is a compact 4-channel LED dimmer designed for professional constant voltage LED strip installations in architectural lighting, entertainment venues, stages, houses of worship, events, and integrated lighting systems. Engineered and manufactured in Australia, it provides precise dimming control for LED tape and other compatible constant voltage lighting projects.

The CVC4 delivers up to 20 amps across four 5 amp channels and supports 12 to 24 VDC input and output. It offers selectable 16-bit or 8-bit resolution, ultra-smooth dimming, DMX/RDM control, and onboard conversion from DMX to ENTTEC PLink, giving lighting professionals a flexible control path for both direct DMX operation and chained PLink-based installations.

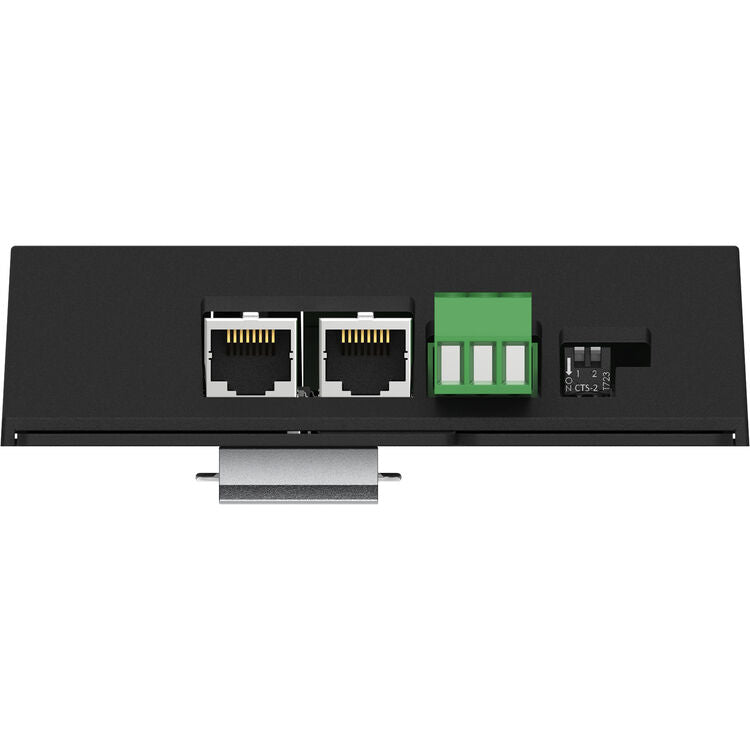

For faster setup across larger LED dimming systems, the CVC4 supports auto-addressing through PLink, allowing devices to be chained with Cat6 cable up to 984 feet between units. A status LED and mode selection DIP switch allow users to toggle between bitrate and RGB/RGBW operating modes, while the fanless passive cooling design keeps operation virtually silent.

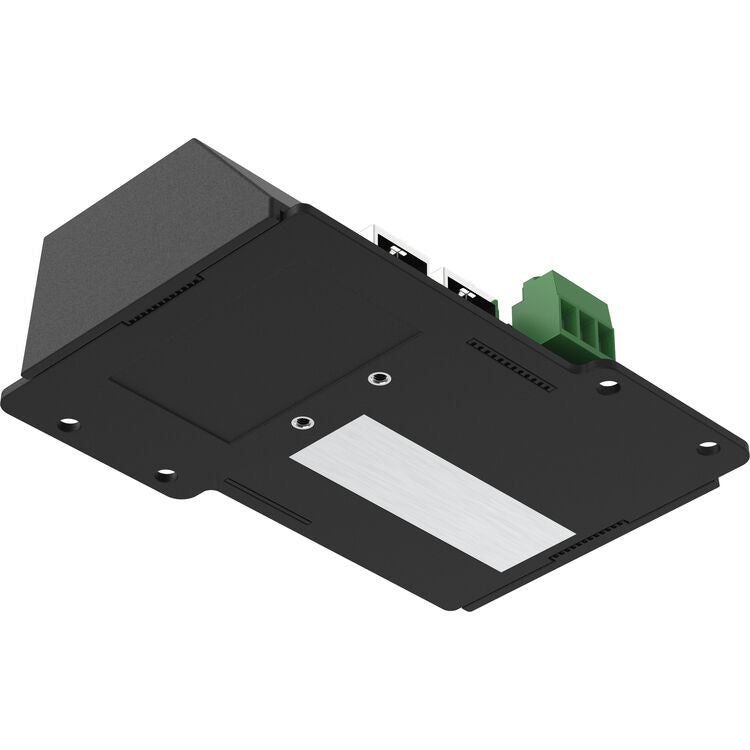

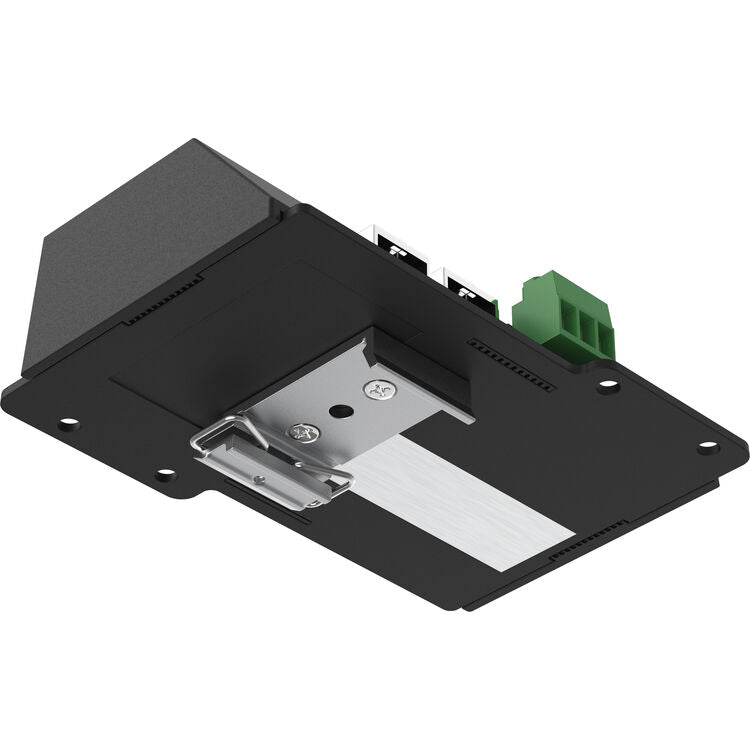

The CVC4 is built for practical installation with integrated M4 surface mounting holes and TS35 DIN rail mounting support. It also includes short-circuit protection, a user-serviceable safety fuse, and onboard temperature monitoring that reduces output to help prevent overheating.

Key Features

• 4-channel constant voltage LED dimmer for professional LED strip projects
• Up to 20 amps total output across four 5 amp channels
• 12 to 24 VDC input and output for compatible constant voltage LED systems
• Selectable 16-bit or 8-bit resolution for precise dimming control
• DMX/RDM input with onboard conversion to ENTTEC PLink protocol
• PLink auto-addressing with Cat6 chaining up to 984 feet between devices

Professional Applications

• Constant voltage LED strip dimming
• Architectural lighting installations
• Stage and venue LED accent lighting
• Worship lighting environments
• DMX and PLink-based LED control systems

System Integration

The ENTTEC CVC4 fits into larger lighting systems by converting DMX to ENTTEC PLink while also supporting DMX/RDM control and device monitoring. It can be installed using surface-mount tabs or TS35 DIN rail mounting, connected to compatible 12 to 24 VDC LED tape, and chained between devices using PLink over Cat6 cable for fast expansion across multi-zone constant voltage LED installations.

Broadcast Workflow Benefits

For professional lighting and production environments, the CVC4 helps simplify constant voltage LED control by combining four high-precision dimming channels, DMX/RDM communication, PLink auto-addressing, and silent fanless operation in one compact device. It reduces manual addressing time, supports smoother dimming performance, and helps keep LED tape systems organized in installed or portable workflows.

Frequently Asked Questions

What is the ENTTEC CVC4 used for?

The CVC4 is used to dim compatible constant voltage LED strip and LED tape systems through four individually controlled output channels.

How many channels does the CVC4 provide?

The CVC4 provides four output channels, with each channel capable of up to 5 amps and a 20 amp maximum total output.

What voltage does the CVC4 support?

The CVC4 supports 12 to 24 VDC input and output for compatible constant voltage LED lighting systems.

Does the CVC4 support DMX and RDM?

Yes. The CVC4 supports DMX/RDM control and includes a single DMX connector for DMX/RDM input or chaining between devices.

How is the CVC4 mounted?

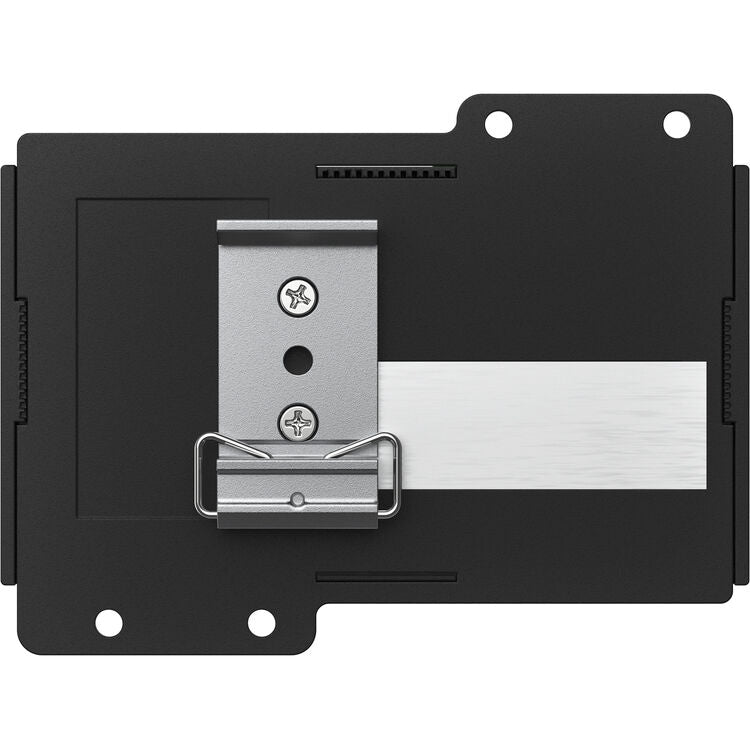

The CVC4 can be installed using integrated M4 surface mounting holes or a TS35 DIN rail mount, with a TS35 DIN clip included.

Related Equipment and Workflow Compatibility

The CVC4 is commonly used with ENTTEC PLink workflows, DMX/RDM lighting control systems, Cat6 cabling for PLink chaining, compatible 12 to 24 VDC constant voltage LED tape, and LED strip installations that require high-precision dimming control.

It is also relevant for users replacing or expanding compatible ENTTEC constant voltage dimming workflows, including environments where backwards compatibility with CVC3 and DIN-LED4 systems is needed.

Why Professionals Use This Type of Product

• Provides precise dimming for constant voltage LED strip systems
• Supports both DMX/RDM control and ENTTEC PLink workflows
• Speeds setup with auto-addressing across chained devices
• Operates silently with passive fanless cooling
• Protects installations with short-circuit and over-temperature protection

Additional Compatibility Information

The ENTTEC CVC4 Constant Voltage Dimmer is suited for professional constant voltage LED dimming, DMX LED strip control, ENTTEC PLink installations, RGB and RGBW LED tape workflows, architectural LED lighting systems, stage LED accent lighting, worship lighting, and venue lighting systems using compatible 12 to 24 VDC LED strip products.
