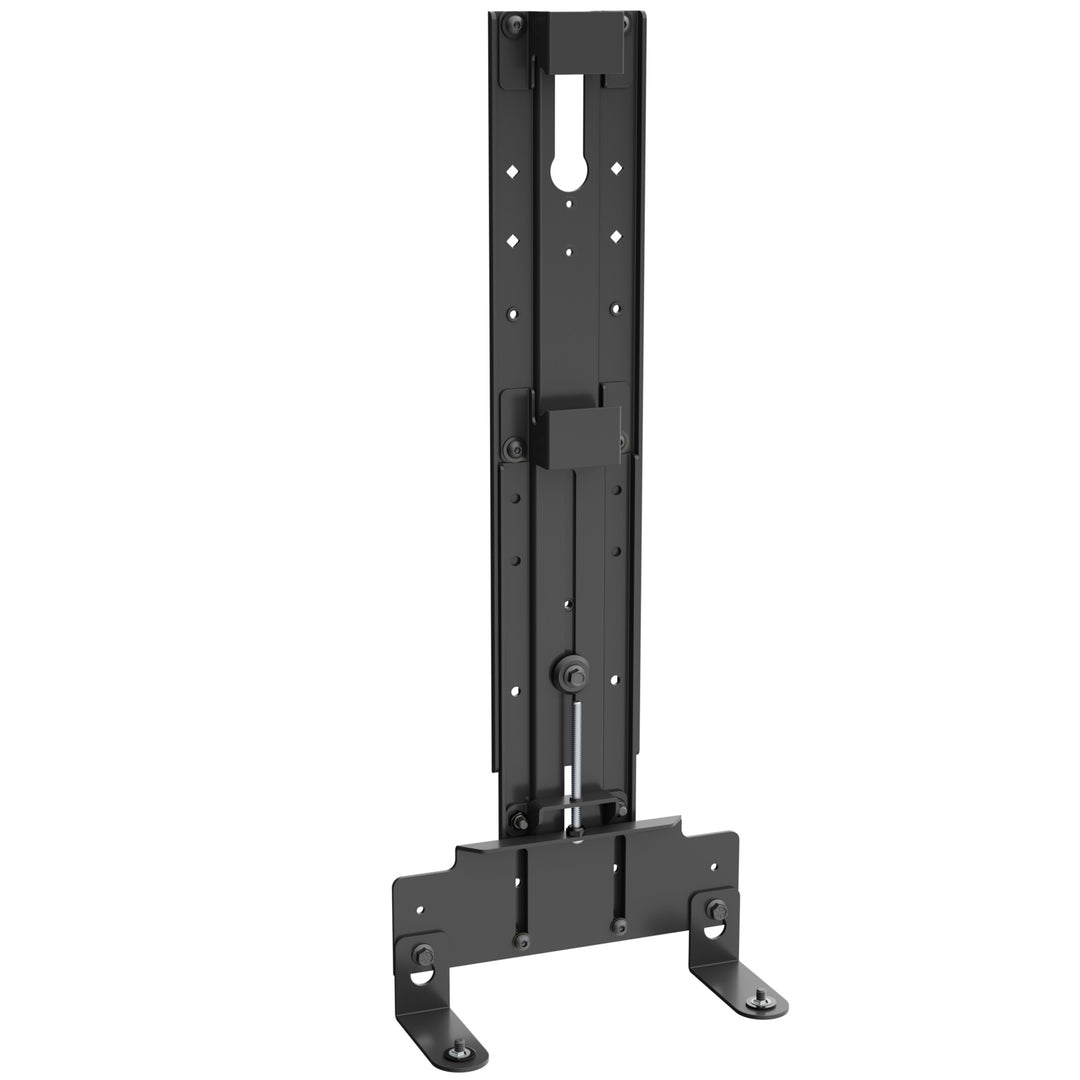

Chief Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle

The FCALRB1 is a Fusion® mount accessory for the Logitech Rally Bar, Rally Bar Mini and Rally Bar Huddle all-in-one video bars. The FCALRB1 can be mounted above or below typical 55” to 94” displays to best suit meeting and/or application needs¹.

The FCALRB1 is compatible with various display mounts, such as²:

• Fusion Series Wall Fixed and Tilt Mounts
• Fusion Series Ceiling Mounts
• Fusion Series Carts
• Fusion Series Floor Support Mounts
• Tempo™ Floor to Wall Dual Display Accessory
• Forum® Collaboration Suite Free-Standing Display Stand
• Forum® Collaboration Suite Floor-to-Wall Display Stand

The FCALRB1 has 7.15” (182 mm) total height adjustment range, with 4.92” (125 mm) of macro-height adjustment and 2.23” (57 mm) of micro-height adjustment. The micro-adjust on the FCALRB1 allows a clean alignment of the Logitech Rally Bar, Rally Bar Mini, and Rally Bar Huddle to the bottom or top of the display after it’s been installed. Keyhole slots and captive screws are featured on the “L” brackets to facilitate quick and easy job site assembly.

¹For display size clearance details please refer to the Technical Drawing. Dimensions and specifications dependent on application use.

²Compatible with most Fusion Display Mounts. It is NOT compatible with Fusion XVM1U, XPD1U or XFD1U. If you have compatibility questions with other mounts, please contact your Sales Representative or Customer Care.
