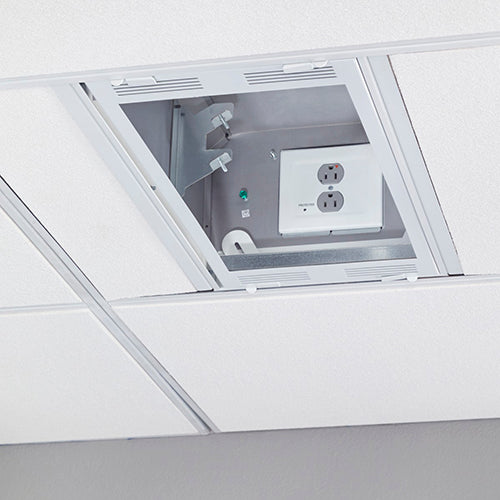

The CMS491P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage boxat a later time
- Inside the box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4"", 1"", & ½"" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
- TAA Compliant
Surge and Filter Module
- Non-volatile spike protection with LED power indicator
- Non-sacrificial multi-stage technology
- Non-current limiting design passes full power on a regular circuit; redundant protection circuits
- Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
- Line filter reduces common and differential mode noise by up to 40 dB
- Rated for 125V~, 60Hz, 15 A
- 1875 watt maximum
- Ferrite toroid based EMI Filter
- Withstand rating of 240 VAC continuous without damage or loss of protection
- Output: 15A, 1875 W continuous
Power Requirements:
- N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C
- Power Consumption: >0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N
