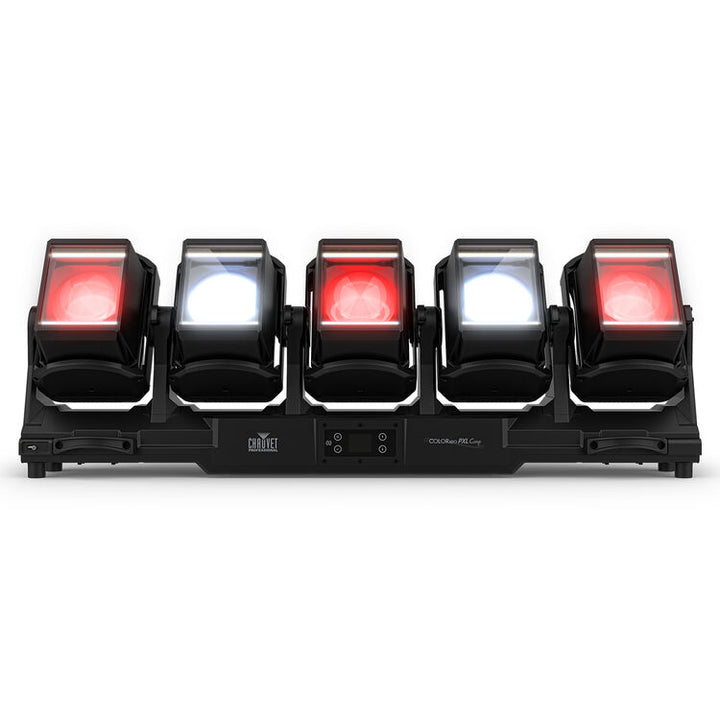

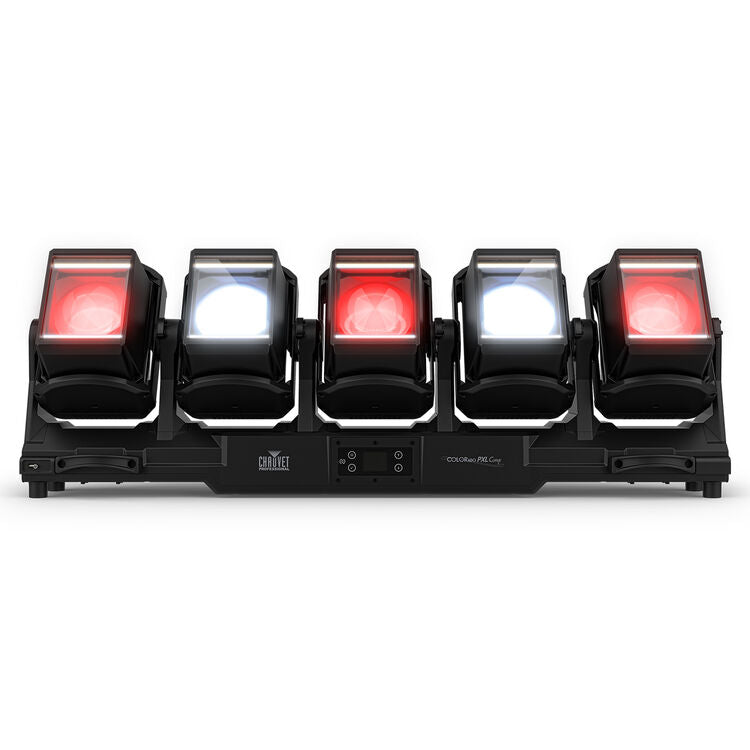

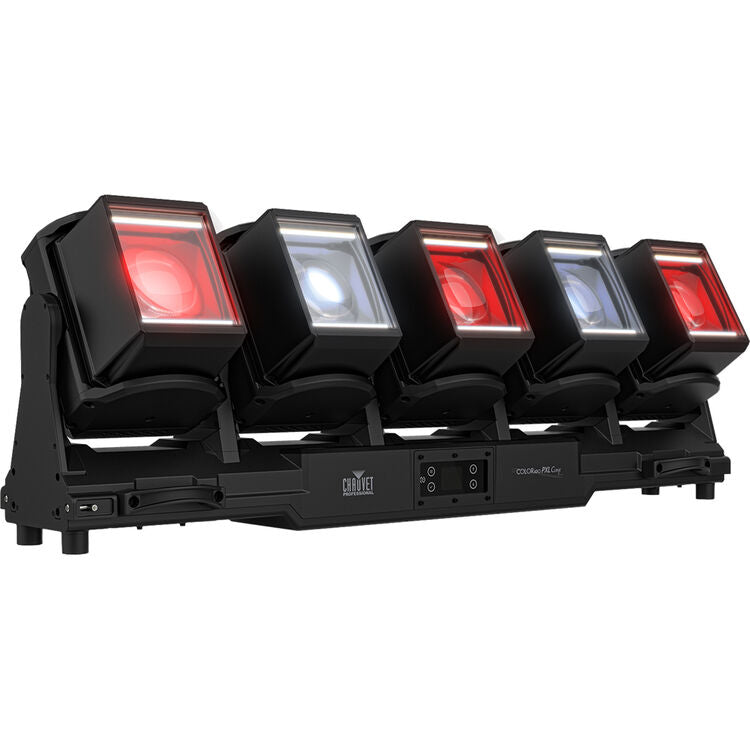

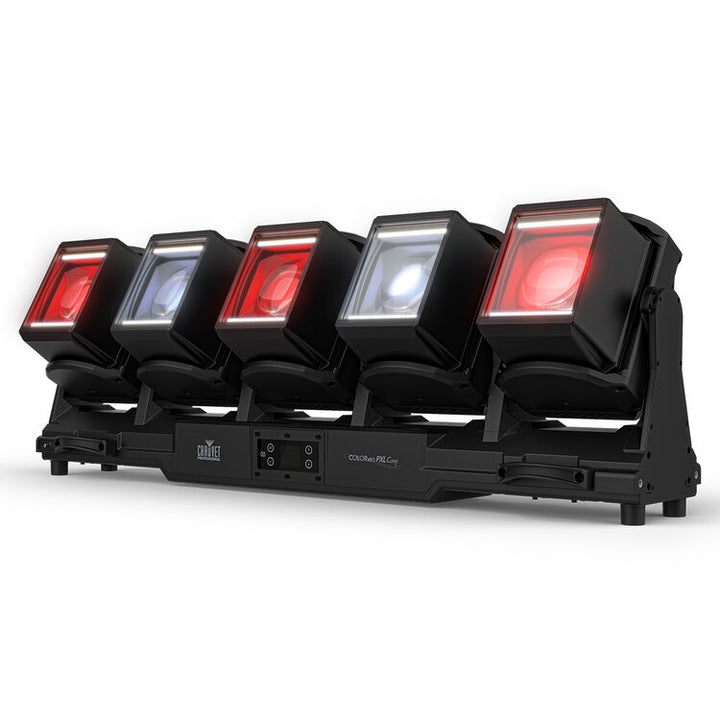

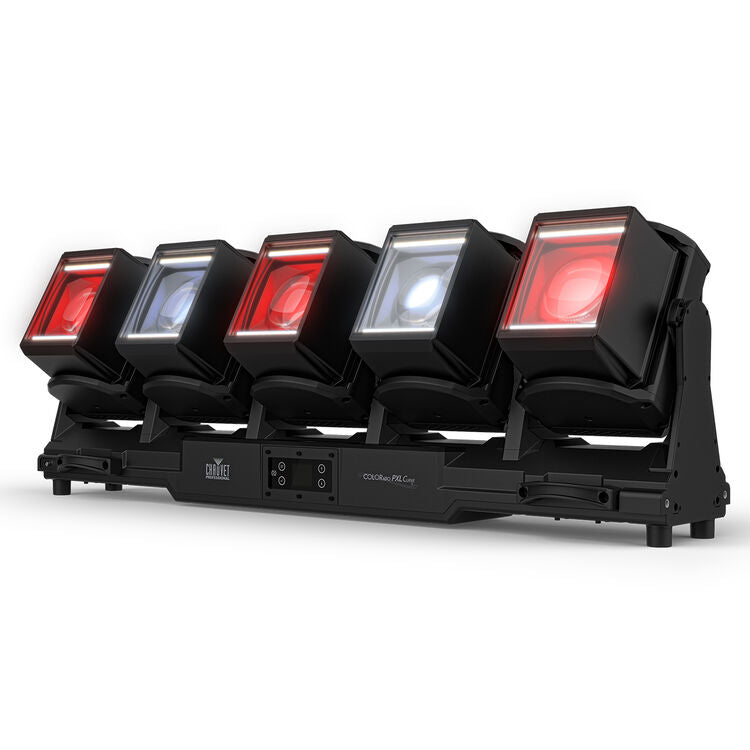

CHAUVET Professional COLORado PXL Curve 5

IP65 Motorized RGBW Batten with Independent Pan, Tilt, Zoom, and Strobes

The CHAUVET Professional COLORado PXL Curve 5 is an IP65-rated professional LED batten built for concert touring, theatrical productions, festivals, temporary outdoor events, and permanent entertainment installations. Its five independently controlled heads combine RGBW color, motorized movement, zoom, and dedicated strobe elements to create layered wash, beam, pixel-mapping, and motion effects from a single fixture.

Each head uses a 120-watt RGBW LED and provides 60 degrees of pan with 200 degrees of tilt. Dual linear warm white and cool white strobe arrays add eight-section strobe control per head, while the motorized zoom system supports both concentrated beams and broad coverage. Control options include DMX, Art-Net, sACN, and RDM through IP65-rated 5-pin XLR and etherCON connections.

The fixture is optimized for side-by-side installation, with alignment pins that maintain consistent spacing between linked units. Its rectangular heads, color blending, and pixel pitch are designed to integrate with the COLORado PXL Curve 1 and other COLORado PXL fixtures, helping lighting designers create scalable arrays with coordinated movement, color, and pixel-mapped effects.

A rugged IP65 housing protects the fixture during temporary outdoor and wet-use applications. Selectable pulse-width modulation frequencies from 600 Hz to 15,000 Hz also support professional live and on-camera environments where controlled LED performance is essential.

Key Features

• Five independently controlled motorized heads with 120-watt RGBW LEDs
• Individual pan, tilt, zoom, color, and pixel control
• Dual linear cool white and warm white strobe arrays on each head
• Eight-section control of the strobe cells per head
• DMX, Art-Net, sACN, and RDM control protocols
• IP65-rated housing, power connections, 5-pin XLR ports, and etherCON ports

Professional Applications

• Concert touring and festival lighting systems
• Theatrical productions and performance venues
• Temporary outdoor stages and wet-use events
• Pixel-mapped lighting arrays and animated scenic effects
• Broadcast, livestream, and on-camera production environments

System Integration

The COLORado PXL Curve 5 integrates into professional lighting networks through DMX, Art-Net, and sACN, with RDM support for remote fixture management. IP65-rated data input and output connections allow the fixture to be incorporated into touring rigs, networked stage systems, theatrical installations, and outdoor production environments. It can be arranged alongside COLORado PXL Curve 1 and COLORado PXL Curve 12 fixtures to build coordinated arrays with consistent spacing, matching rectangular heads, and complementary movement and color effects.

Broadcast Workflow Benefits

Independent head control allows programmers to combine moving washes, narrow beams, animated pixel effects, and warm or cool white strobes without assigning separate fixtures to each function. Selectable PWM frequencies provide additional flexibility for camera-based productions, while network control enables high-channel-count programming across large lighting systems. The result is a versatile fixture that can reduce rig complexity while expanding the range of available visual looks.

Frequently Asked Questions

Is the COLORado PXL Curve 5 suitable for outdoor use?

Yes. The fixture carries an IP65 rating and is designed for temporary outdoor and wet-use applications within its specified operating conditions.

How many independently controlled heads does the fixture have?

The COLORado PXL Curve 5 has five independently controlled heads. Each head includes an RGBW LED, motorized pan and tilt, zoom, and dedicated warm white and cool white strobe cells.

Which control protocols are supported?

The fixture supports DMX, Art-Net, sACN, and RDM. Data connections include IP65-rated 5-pin XLR and etherCON input and output ports.

Can multiple COLORado PXL Curve 5 fixtures be mounted together?

Yes. The fixture is optimized for side-by-side mounting, and integrated alignment pins help maintain consistent spacing across linked units for cohesive pixel-mapped and movement effects.

Does the COLORado PXL Curve 5 support on-camera production?

The fixture offers selectable PWM frequencies of 600, 1200, 2000, 4000, 6000, and 15,000 Hz, providing lighting professionals with multiple settings for live and on-camera workflows.

Related Equipment and Workflow Compatibility

The COLORado PXL Curve 5 is designed for coordinated use with the COLORado PXL Curve 1 and other fixtures in the COLORado PXL family. Its matching rectangular head design, color blending, and array-focused spacing support scalable lighting systems that combine different fixture sizes while maintaining a unified visual presentation.

Compatible installation and cabling options include CHAUVET Professional clamps, safety cables, RIGLINK IP65 power cables, RIGLINK etherKON cables, RIGLINK five-pin DMX cables, IP65 power and DMX combination cables, POWERSTREAM 4 IP power distribution, and CPRACK equipment.

Why Professionals Use This Type of Product

• Combines wash, beam, strobe, movement, and pixel effects in one fixture
• Supports high-resolution programming with independent head control
• Creates expandable linear and curved lighting arrays
• Provides IP65 protection for demanding touring and event environments
• Integrates with standard DMX and network-based lighting systems

Additional Compatibility Information

The CHAUVET Professional COLORado PXL Curve 5 is suited for professional stage lighting, motorized LED batten systems, RGBW pixel-mapping applications, touring lighting rigs, theatrical lighting networks, outdoor event production, and broadcast studio environments. Its DMX, Art-Net, sACN, and RDM capabilities support integration with professional lighting consoles and network infrastructure designed for complex, high-channel-count control.
