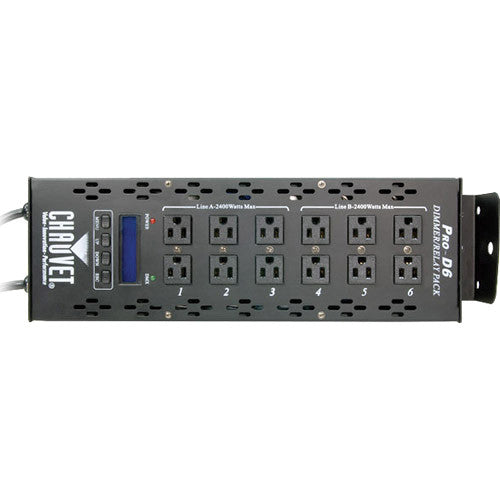

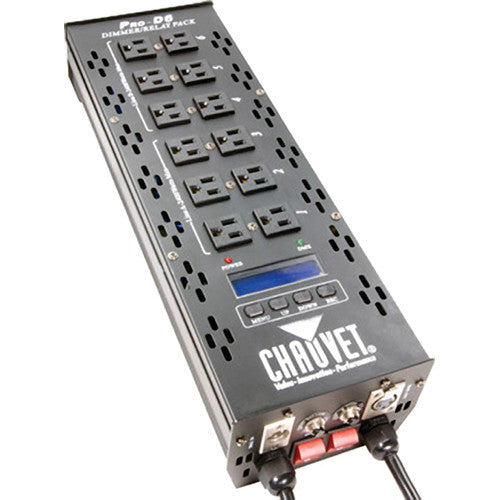

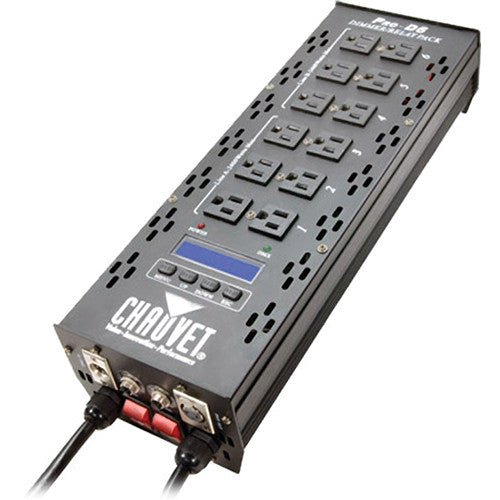

CHAUVET DJ Pro D6 Dimmer Pack

6-Channel DMX-512 Dimmer and Relay Pack

The CHAUVET DJ Pro D6 Dimmer Pack is a professional 6-channel DMX-512 dimmer and relay pack designed for lighting control systems that need flexible power management across multiple fixtures. Built for stage, venue, worship, event, and production lighting environments, it gives operators channel-based control for compatible lighting connected through its Edison output plugs.

The Pro D6 provides six channels of DMX-512 control, with each channel assignable to any DMX address and configurable as either a dimmer or relay. Its variable electronic dimming supports 0 to 100% control, while selectable dimmer curve options for each channel include square, switch, and linear response, giving lighting users practical control over how connected fixtures behave in a DMX workflow.

For power distribution, the Pro D6 features dual 20A power lines, two Edison plugs per channel, and individual switch, circuit breaker, and plug per line. It supports 120 to 240 VAC, 50/60 Hz input power and is designed to accommodate different input voltages simultaneously, making it useful for professional lighting systems that require more advanced power and control flexibility.

The unit includes an LCD display, 20A connectors, CE and RoHS certifications, and a rugged form factor suitable for production environments where multiple channels of dimming or relay control need to be managed from a single DMX-compatible dimmer pack.

Key Features

• 6-channel DMX-512 dimmer and relay pack for professional lighting control
• Each channel can be assigned to any DMX address
• Each channel can operate as either a dimmer or relay
• Variable electronic dimming from 0 to 100%
• Selectable dimmer curves for each channel, including square, switch, and linear
• Dual 20A power lines with two Edison plugs per channel

Professional Applications

• Stage lighting control systems
• Venue and event lighting setups
• Worship lighting environments
• DMX-controlled dimming and relay workflows
• Production lighting power management

System Integration

The CHAUVET DJ Pro D6 fits into a DMX-512 lighting system as a centralized dimmer and relay control device for compatible connected fixtures. With six individually addressable channels, two Edison plugs per channel, selectable dimmer curves, and dual 20A power lines, it can support larger lighting rigs that require organized power control, channel-based fixture behavior, and repeatable DMX operation.

Broadcast Workflow Benefits

For live production and professional lighting workflows, the Pro D6 helps simplify control of multiple connected lighting loads by combining DMX addressing, dimming, relay switching, and circuit protection in one unit. Operators can manage fixture behavior more efficiently, reduce manual power switching, and build more consistent lighting control into stage, worship, event, and production environments.

Frequently Asked Questions

What is the CHAUVET DJ Pro D6 used for?

The Pro D6 is used as a 6-channel DMX-512 dimmer and relay pack for controlling compatible lighting fixtures in professional lighting systems.

How many channels does the Pro D6 provide?

The Pro D6 provides six DMX-512 channels, with each channel assignable to any DMX address.

Can each channel be set as a dimmer or relay?

Yes. Each channel on the Pro D6 can be configured as either a dimmer or relay depending on the needs of the connected lighting setup.

How many Edison plugs are included per channel?

The Pro D6 provides two Edison plugs per channel, giving the unit a total of twelve Edison output plugs across its six channels.

What input power does the Pro D6 support?

The Pro D6 supports 120 to 240 VAC, 50/60 Hz input power and uses dual 20A power lines.

Related Equipment and Workflow Compatibility

The Pro D6 is commonly used with DMX-512 lighting controllers, 3-pin DMX lighting systems, Edison-connected lighting fixtures, and professional lighting environments that require dimming or relay control. It is relevant for CHAUVET DJ lighting workflows where multiple channels of power control need to be managed through DMX.

In stage, worship, event, and production installations, the Pro D6 supports organized fixture control by combining DMX addressing, selectable dimmer response, relay operation, and circuit-level power management in a single dimmer pack.

Why Professionals Use This Type of Product

• Provides centralized DMX control for multiple connected lighting channels
• Supports both dimming and relay switching from one unit
• Allows each channel to be individually addressed and configured
• Offers selectable dimmer curves for different control responses
• Helps organize lighting power distribution in professional production environments

Additional Compatibility Information

The CHAUVET DJ Pro D6 Dimmer Pack is suited for DMX-512 lighting control systems, professional dimmer pack applications, relay-based lighting control, stage lighting rigs, worship lighting systems, event production lighting, and venue lighting setups that use Edison-connected fixtures and DMX control workflows.
