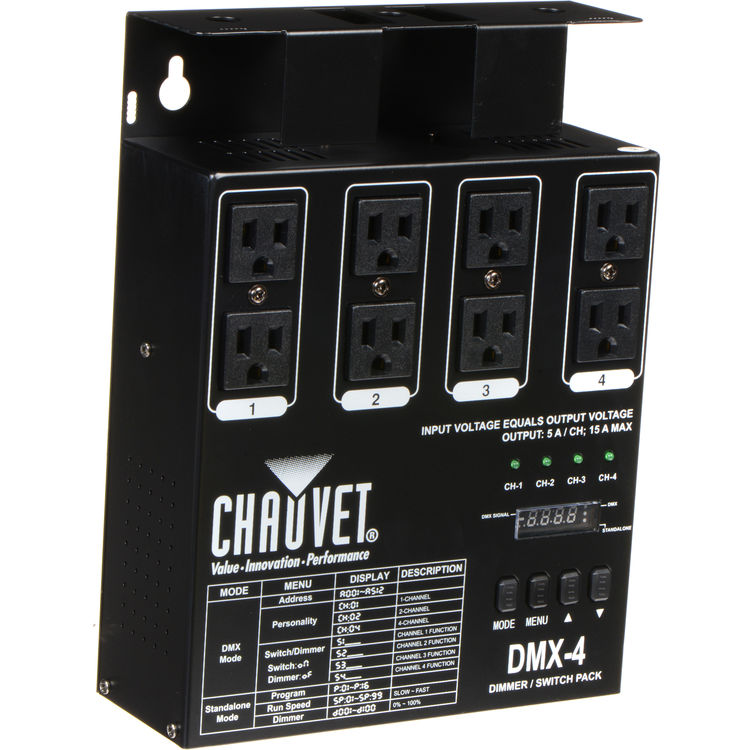

CHAUVET DJ DMX-4 4-Channel Dimmer Pack

4-Channel DMX Dimmer and Relay Pack for LED Lighting Control

The CHAUVET DJ DMX-4 is a 4-channel dimmer and relay pack designed to bring DMX control to lighting fixtures that do not have DMX built in. Built for professional lighting users, mobile entertainers, small stages, worship environments, event spaces, and production setups, it provides centralized on/off or dimming control for compatible lighting connected through its four duplex outlet sets.

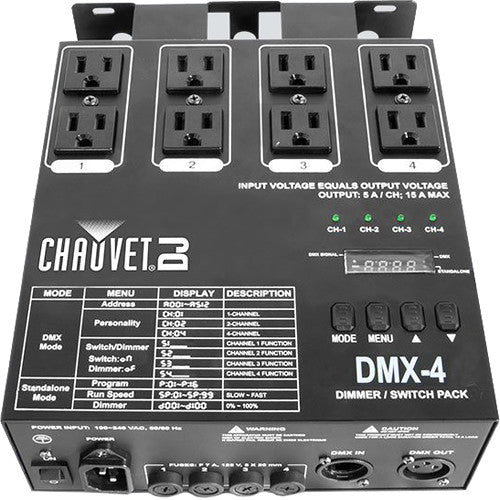

Each of the four outlet sets can be assigned to any DMX address and independently configured as either a dimmer or relay, giving operators flexible control over different fixture types within the same lighting system. The DMX-4 supports 1, 2, or 4 DMX channel operation, uses 3-pin XLR DMX connectors, and is optimized for small LED fixtures with built-in circuitry that helps prevent ghosting and flickering.

The DMX-4 is useful in setups where non-DMX lighting needs to be integrated into a DMX-controlled environment. It can operate through DMX control or standalone mode, and its 16 built-in configurable chase patterns make it practical for simple automated lighting looks without requiring a separate programmed console for every use case.

With up to 5 amps per channel and a 15 amp maximum total load, the DMX-4 gives lighting operators a compact control solution for compatible LED fixtures, small lighting effects, and automated show setups that need repeatable control in a portable or installed workflow.

Key Features

• 4-channel dimmer and relay pack for DMX control of compatible non-DMX lighting
• Each channel can be independently set as a dimmer or switch
• Four duplex outlet sets allow control of up to eight connected devices
• Up to 5 amps per channel with 15 amps maximum total load
• Built-in circuitry helps prevent ghosting and flickering with small LED fixtures
• 16 built-in configurable chase patterns for automated lighting looks

Professional Applications

• Small stage lighting control
• Mobile DJ and event lighting systems
• Worship lighting setups
• DMX control for compatible non-DMX LED fixtures
• Automated chase and standalone lighting operation

System Integration

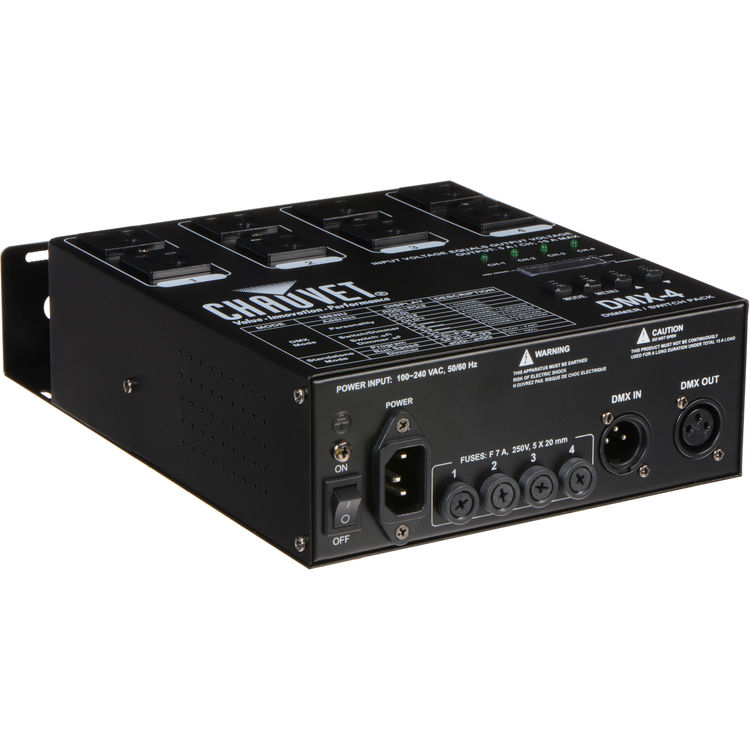

The CHAUVET DJ DMX-4 fits into a DMX lighting workflow by acting as the bridge between a DMX control system and compatible lighting fixtures that require switched or dimmed power control. With 3-pin XLR DMX input and output, selectable DMX channel modes, and individually addressable channels, it can be integrated into small lighting rigs, portable event systems, and venue lighting setups that need practical control of multiple outlet-fed devices.

Broadcast Workflow Benefits

For production and live event workflows, the DMX-4 helps simplify control of compatible LED fixtures and lighting effects by bringing multiple powered outputs under DMX or standalone control. Operators can reduce manual switching, create synchronized automated looks, and manage dimming or relay behavior channel by channel, making it easier to build repeatable lighting cues for stages, services, events, and small productions.

Frequently Asked Questions

What is the CHAUVET DJ DMX-4 used for?

The DMX-4 is used to provide DMX on/off or dimming control for compatible lighting fixtures that do not have DMX control built in.

How many channels does the DMX-4 have?

The DMX-4 is a 4-channel dimmer and switch pack, and it supports 1, 2, or 4 DMX channel operation.

Can each channel be configured separately?

Yes. Each of the four outlet sets can be assigned to any DMX address and independently set as a dimmer or relay.

Is the DMX-4 designed for LED fixtures?

Yes. The unit is optimized for use with small LED fixtures and includes built-in circuitry designed to help prevent ghosting and flickering.

Can the DMX-4 be used without DMX control?

Yes. The DMX-4 offers standalone operation and includes built-in automated programs with adjustable speeds and dimmer levels.

Related Equipment and Workflow Compatibility

The DMX-4 is commonly used in CHAUVET DJ lighting workflows that require DMX control, standalone operation, automated programs, and 3-pin DMX connectivity. It is also relevant for systems using compatible small LED fixtures, lighting effects, and DMX cabling.

For installation and portable production use, the DMX-4 can support small stages, mobile rigs, worship environments, events, and lighting setups where compatible non-DMX fixtures need to be controlled as part of a more organized lighting system.

Why Professionals Use This Type of Product

• Adds DMX control to compatible non-DMX lighting fixtures
• Allows dimmer or relay behavior to be selected per channel
• Helps reduce ghosting and flickering with small LED fixtures
• Supports standalone automated programs for simple lighting looks
• Consolidates multiple powered lighting outputs into one control device

Additional Compatibility Information

The CHAUVET DJ DMX-4 4-channel dimmer pack is a compact lighting control solution for DMX lighting systems, compatible LED lighting workflows, mobile DJ lighting rigs, small stage lighting, worship lighting, and event production setups that need DMX-controlled dimming or switching for connected fixtures.
