Blackmagic Design Videohub 80x80 12G

High-Capacity 12G-SDI Video Router for Zero-Latency Broadcast Routing

The Blackmagic Design Videohub 80x80 12G is a high-capacity zero-latency video router built for professional broadcast, live production, post-production, and AV facilities that need flexible signal management across a large SDI infrastructure. It is designed for environments where multiple sources and destinations must be routed quickly and reliably without the complexity of constant cable repatching.

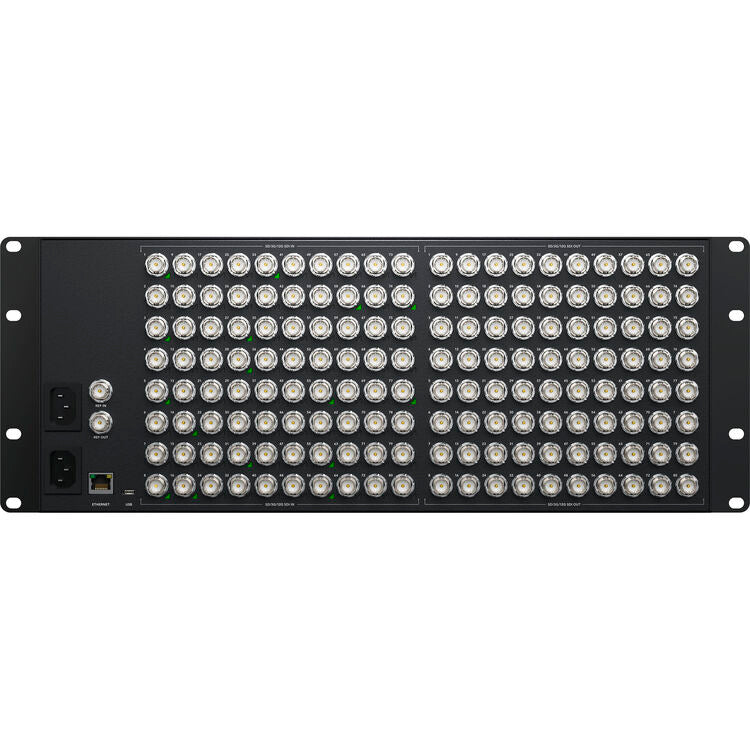

This model features 80 12G-SDI inputs and 80 12G-SDI outputs, with multi-rate 12G-SDI connections that support SD, HD, and Ultra HD video formats up to 2160p60. It can route different video standards on the same router at the same time, and its built-in SDI re-clocking on every 12G-SDI input regenerates the signal for maximum video quality and improved jitter performance.

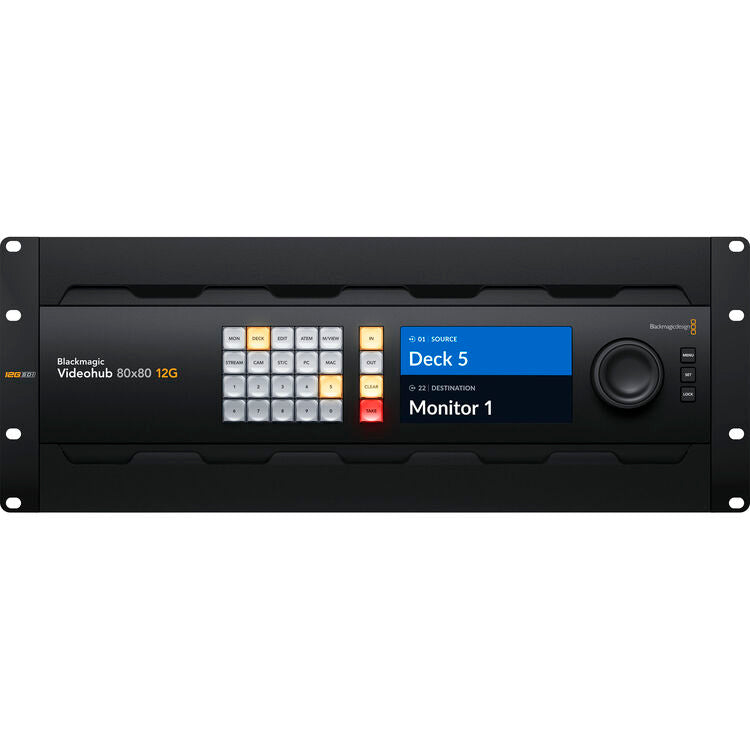

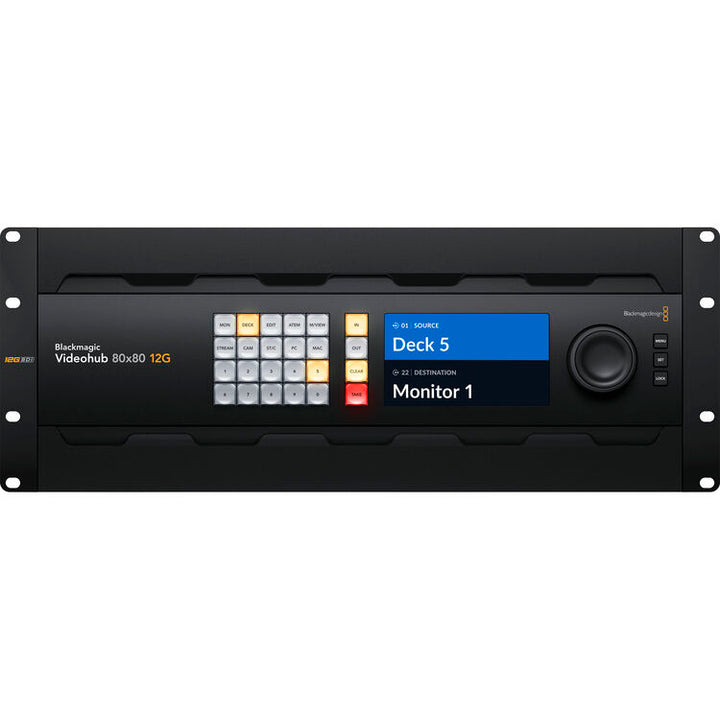

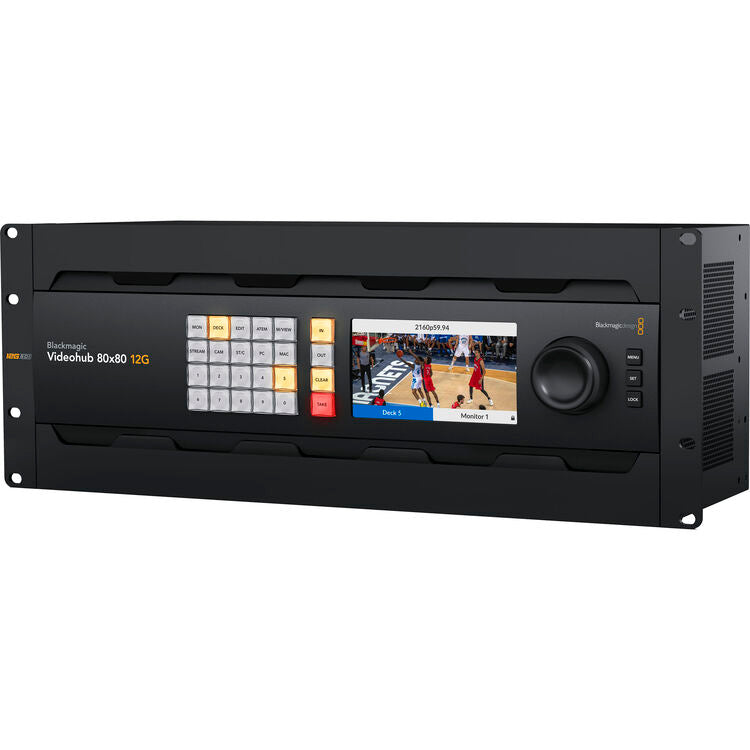

The Videohub 80x80 12G is designed for integration into larger professional systems with redundant power and reference connections, Ethernet remote control, and a front panel that combines shortcut buttons, a machined metal spin knob, and a large full HD LCD for video preview, routing labels, and video standard display. Its four rack unit design makes it well suited for machine rooms, control rooms, studios, and mobile production installations.

Key Features

• 80 12G-SDI inputs and 80 12G-SDI outputs
• Zero-latency video routing for live production and broadcast workflows
• Supports SD, HD, and Ultra HD video formats up to 2160p60
• Routes different video standards on the same router at the same time
• Built-in SDI re-clocking on every 12G-SDI input
• Large full HD LCD with video preview, routing labels, and video standard display

Professional Applications

• Broadcast facility signal routing
• Live event and multi-camera production systems
• Post-production machine room infrastructure
• Studio monitoring and source distribution
• Mobile production and flypack routing systems

System Integration

The Videohub 80x80 12G fits into professional SDI workflows as a central routing core for cameras, switchers, monitors, recorders, playback systems, and other SDI-connected equipment. Ethernet support enables remote control with hardware or software control panels, while the front panel interface provides immediate local access for routing changes in busy production environments.

Broadcast Workflow Benefits

In real-world broadcast and production use, a large-format router like the Videohub 80x80 12G simplifies signal distribution, reduces patching errors, and keeps complex installations organized. Zero-latency operation supports live workflows, while SDI re-clocking helps maintain signal integrity over longer cable runs in larger facilities.

Frequently Asked Questions

What does the Videohub 80x80 12G do?

It routes up to 80 SDI video sources to 80 outputs, allowing facilities to manage large numbers of signals from a central router.

What video standards does it support?

It supports SD, HD, and Ultra HD video formats up to 2160p60 through multi-rate 12G-SDI connections.

Can it route different video standards at the same time?

Yes. The router supports routing different video standards on the same router simultaneously.

Does it support remote control?

Yes. Ethernet connectivity allows remote control using compatible hardware or software control panels.

Why is SDI re-clocking important?

SDI re-clocking regenerates the signal on every 12G-SDI input, helping maintain video quality and improve jitter performance, especially in larger systems with longer cable runs.

Related Equipment and Workflow Compatibility

This router is commonly used in Blackmagic Design and SDI-based production environments that include cameras, monitors, recorders, switchers, and other broadcast infrastructure built around SDI connectivity. Its multi-rate 12G-SDI design allows it to work across mixed-format facilities handling SD, HD, and Ultra HD sources.

With redundant power and reference connections, local front panel control, and Ethernet-based remote operation, it is well suited for permanent installations and larger routing systems where reliability, speed, and operational flexibility matter.

Why Professionals Use This Type of Product

• Centralizes high-density SDI routing in one system
• Supports live production with zero-latency switching
• Handles mixed-format SD, HD, and Ultra HD workflows
• Improves signal integrity with built-in SDI re-clocking
• Reduces cable clutter and simplifies facility-wide routing

Additional Compatibility Information

The Blackmagic Design Videohub 80x80 12G is a professional 12G-SDI video router for broadcast studios, live production systems, post-production facilities, and AV installations that need high-density SDI routing, mixed-format support, Ethernet control, and reliable signal distribution up to Ultra HD 2160p60.
