Blackmagic Design GPI and Tally Interface

Hardware GPI and tally interface for broadcast switcher control

The Blackmagic Design GPI and Tally Interface is a hardware control device designed to integrate external equipment with broadcast switchers. It enables GPI triggering and tally signal distribution, allowing studios, live production environments, and broadcast facilities to synchronize switcher operations with external systems such as automation equipment, lighting systems, and tally indicators.

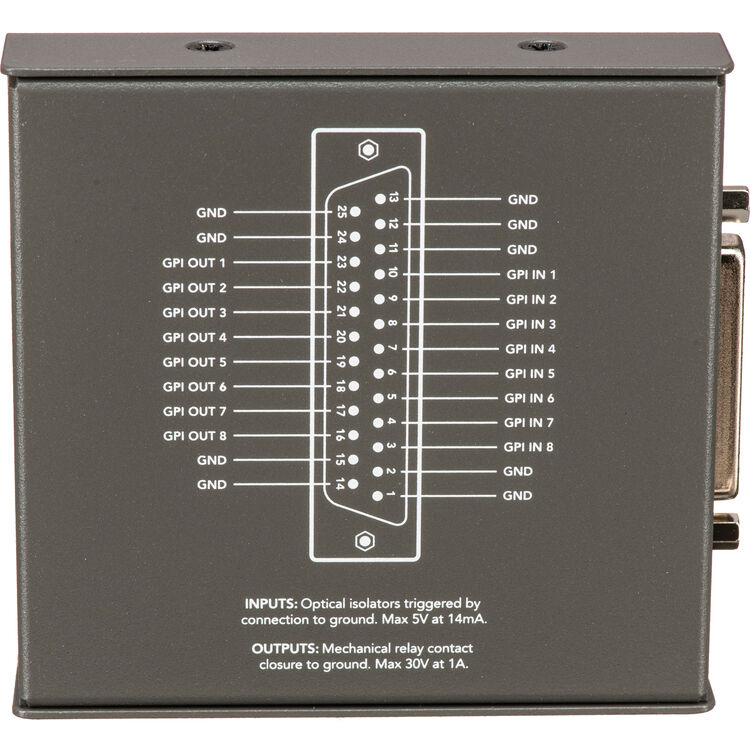

The unit provides eight opto-isolated GPI inputs and eight relay outputs that can be used to trigger switching functions or other production events. It also includes 8-channel contact closure tally outputs, allowing tally signals from compatible switchers to drive external tally lights or monitoring systems used in professional studio environments.

Designed for broadcast reliability, the interface connects via USB to compatible Blackmagic Design switchers and production systems. This allows external devices to trigger switcher actions or receive tally signals, helping production teams coordinate camera status indicators and automation cues during live productions.

The compact hardware design makes it suitable for installation in broadcast racks, control rooms, or live production setups where integration between production equipment and external control systems is required.

Key Features

• Hardware GPI and tally interface for broadcast production systems
• Eight opto-isolated GPI inputs for triggering switcher actions
• Eight relay outputs for external control signals
• Eight-channel contact closure tally outputs
• USB connectivity for integration with compatible Blackmagic switchers
• Designed for studio, broadcast, and live production environments

Professional Applications

• Broadcast studio control systems
• Live production switcher integration
• Camera tally light distribution
• Automation trigger integration
• Production control room workflows

System Integration

The GPI and Tally Interface integrates into broadcast systems by connecting external equipment to compatible Blackmagic Design production switchers via USB. GPI inputs allow external devices to trigger switching commands, while tally outputs distribute camera status signals to studio tally lights or other monitoring devices.

Broadcast Workflow Benefits

In professional production environments, the GPI and Tally Interface enables tighter integration between switchers and external control systems. By allowing automation triggers and tally signal distribution, it helps improve coordination between operators, cameras, and studio systems during live broadcasts and recorded productions.

Frequently Asked Questions

What does the GPI and Tally Interface do?

It allows external devices to trigger switcher functions using GPI inputs and distributes tally signals to external tally systems.

How many GPI inputs does the device provide?

The interface includes eight opto-isolated GPI inputs for triggering switcher actions.

How many tally outputs are available?

The unit provides eight contact closure tally outputs for external tally indicators.

How does the interface connect to a system?

The device connects to compatible Blackmagic Design switchers using a USB connection.

Where is the GPI and Tally Interface typically used?

It is commonly used in broadcast studios, control rooms, and live production environments that require integration between switchers and external equipment.

Related Equipment and Workflow Compatibility

The Blackmagic Design GPI and Tally Interface is designed for use with compatible Blackmagic Design production switchers and broadcast systems that support external GPI triggering and tally outputs. It allows facilities to integrate switchers with external automation systems, tally light systems, and studio control equipment.

Within a broadcast workflow, it is commonly deployed alongside production switchers, studio cameras, tally lighting systems, and other control equipment used in live production and studio environments.

Why Professionals Use This Type of Product

• Enables external control of broadcast switchers
• Distributes tally signals to camera indicator systems
• Integrates automation systems with live production equipment
• Improves coordination between studio cameras and operators
• Provides reliable hardware control for broadcast workflows

Additional Compatibility Information

The Blackmagic Design GPI and Tally Interface is a broadcast control device designed to connect external GPI triggers and tally systems to compatible Blackmagic Design switchers. With eight GPI inputs, eight relay outputs, USB connectivity, and eight-channel tally outputs, it supports integration between switchers, automation systems, and studio tally lighting within professional live production environments.
