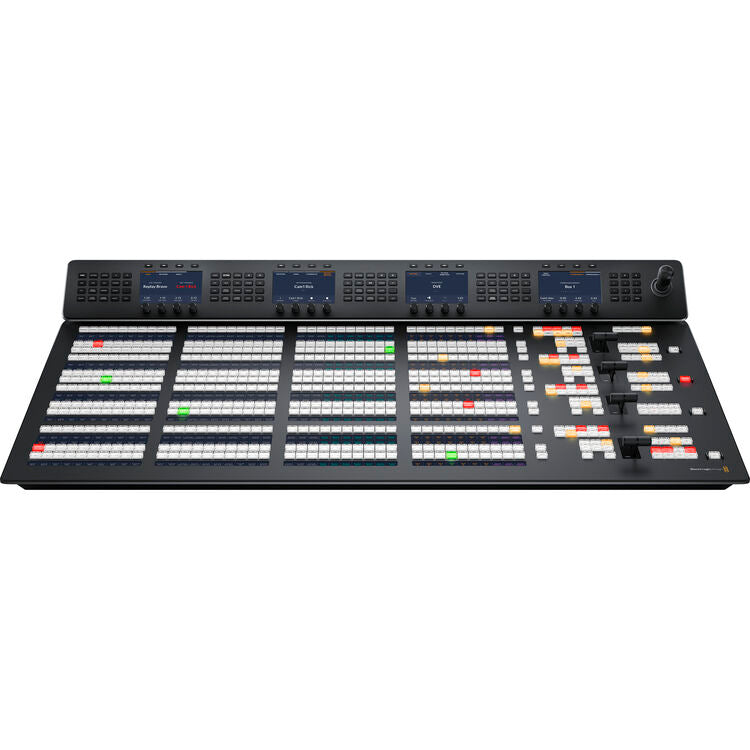

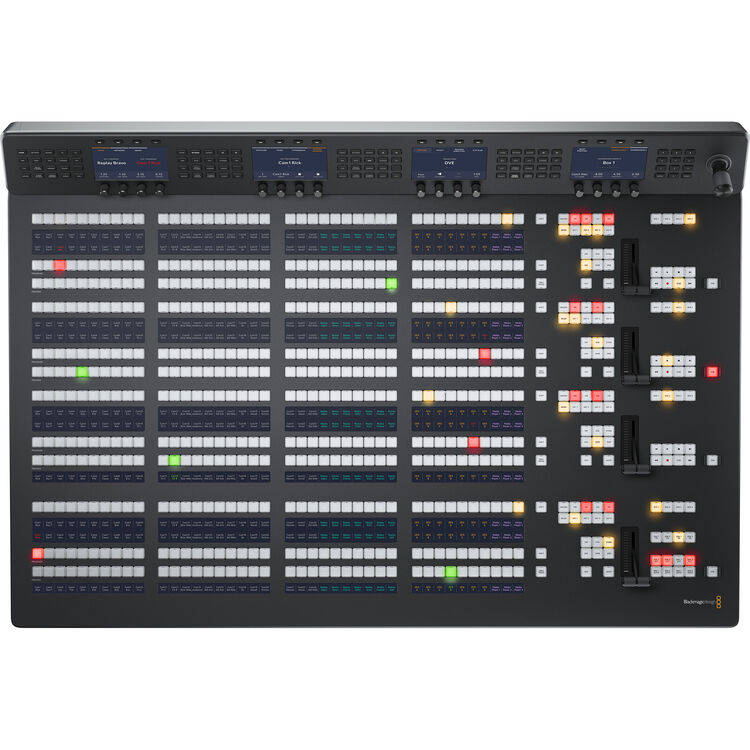

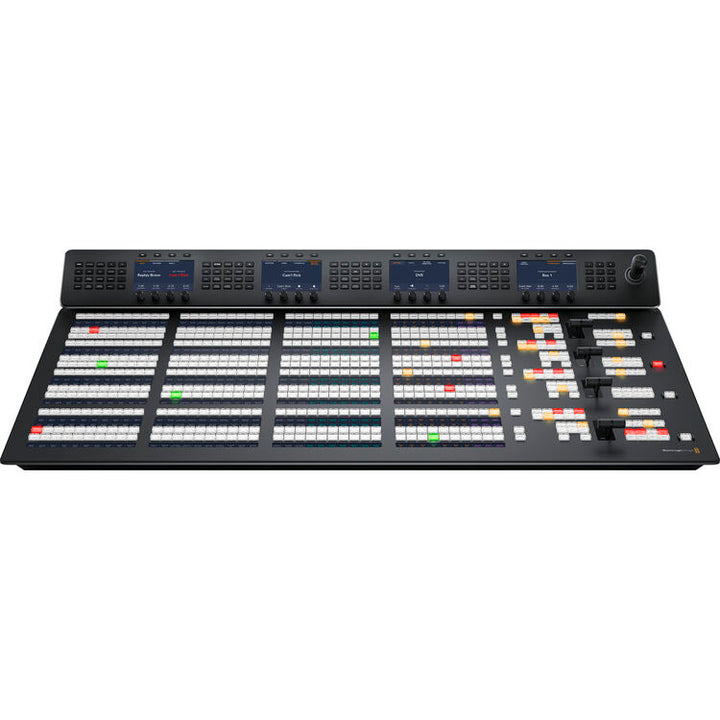

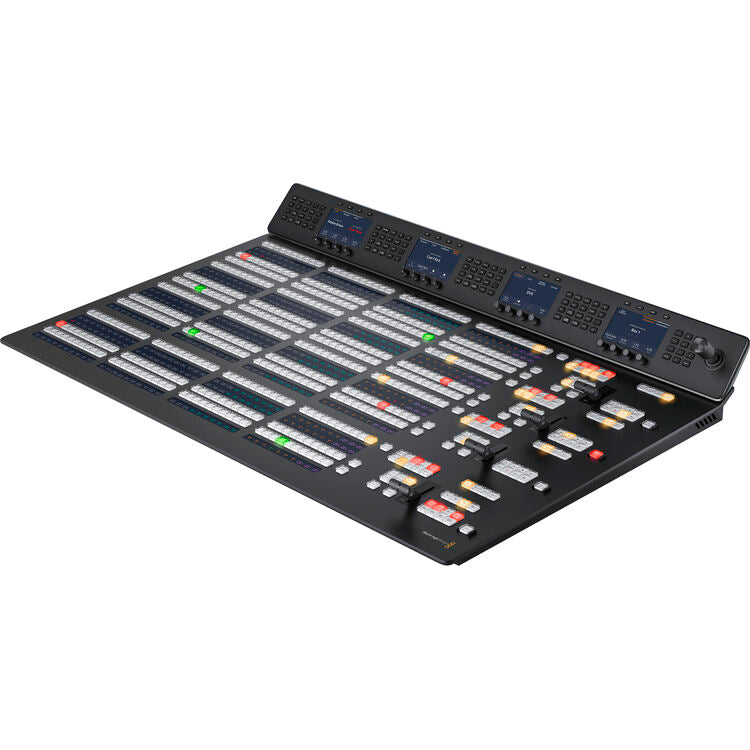

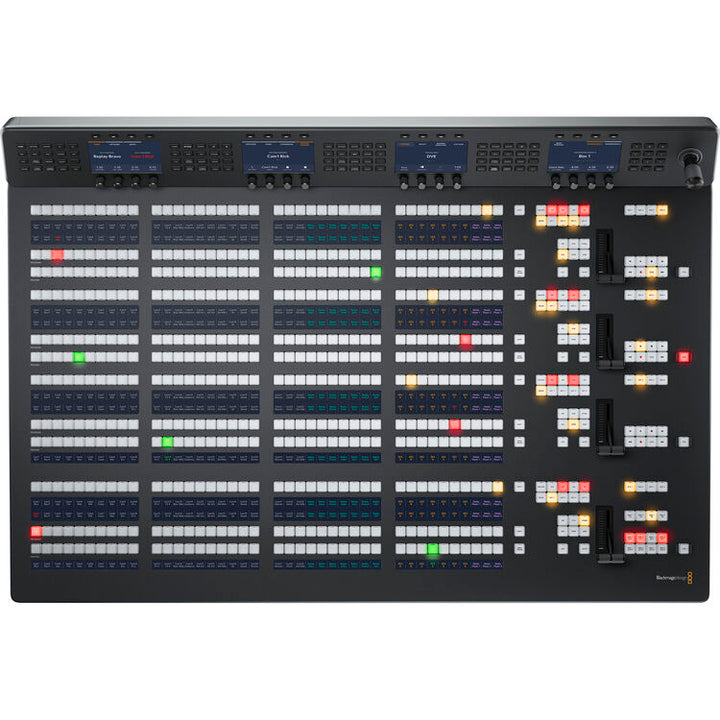

Blackmagic Design ATEM 4 M/E Advanced Panel 40

Professional hardware control panel for ATEM live production switchers

The Blackmagic Design ATEM 4 M/E Advanced Panel 40 is a professional broadcast control surface designed for high-end live production environments using ATEM switchers. It provides a dedicated hardware interface that allows technical directors to perform precise switching, transitions, and source selection during complex multi-camera productions.

The panel features four M/E rows with 40 input buttons per row, giving operators direct control over large switcher configurations. Each row includes program and preview buses, transition controls, and dedicated function buttons, enabling fast switching between sources during live broadcasts. Integrated LCD displays above each input provide customizable source labels for clear identification during production.

Built for professional broadcast environments, the ATEM 4 M/E Advanced Panel 40 connects to compatible ATEM switchers over Ethernet and offers a large, ergonomic layout designed for extended live production sessions. High-quality illuminated buttons, smooth transition controls, and a durable chassis provide the responsiveness and reliability required in broadcast studios, live events, and mobile production facilities.

The panel is commonly deployed in control rooms and production trucks where operators require direct tactile control of complex ATEM switching workflows.

Key Features

• Professional hardware control panel for ATEM production switchers
• Four M/E rows with 40 input buttons per row
• Dedicated program and preview buses for each M/E
• Integrated LCD displays for customizable input labels
• Illuminated buttons for clear status indication
• Ethernet connectivity for switcher integration

Professional Applications

• Broadcast television production
• Live event production
• Multi-camera studio production
• Mobile production trucks and OB vans
• Professional streaming and live switching environments

System Integration

The ATEM 4 M/E Advanced Panel 40 integrates directly with compatible Blackmagic Design ATEM production switchers through an Ethernet connection. Once connected, the panel provides a complete hardware control interface for managing switching, transitions, keyers, and source selection across multiple mix effects buses within the production system.

Broadcast Workflow Benefits

For technical directors and live production teams, the ATEM 4 M/E Advanced Panel 40 provides immediate tactile control over complex switching operations. The dedicated M/E rows, clearly labeled inputs, and responsive controls allow operators to execute transitions and manage multiple video sources quickly and accurately during live broadcasts.

Frequently Asked Questions

What does the ATEM 4 M/E Advanced Panel 40 control?

It is a hardware control surface used to operate compatible Blackmagic Design ATEM production switchers during live productions.

How many inputs does the panel support?

The panel includes four M/E rows, each with 40 input buttons for source selection.

How does the panel connect to the switcher?

The device connects to compatible ATEM switchers using an Ethernet connection.

What are the LCD displays used for?

The integrated LCD displays allow operators to view customizable labels for each input source.

Where is the ATEM 4 M/E Advanced Panel 40 typically used?

It is commonly used in broadcast control rooms, large live event productions, and mobile production units.

Related Equipment and Workflow Compatibility

The ATEM 4 M/E Advanced Panel 40 is designed for use with Blackmagic Design ATEM production switchers that support multi M/E live production workflows. It provides a dedicated control surface that allows technical directors to manage switching and transitions during complex productions.

Within a broadcast environment, the panel is typically installed alongside ATEM switchers, studio cameras, video routers, and other production control equipment used in live television or streaming operations.

Why Professionals Use This Type of Product

• Provides tactile control for complex live switching operations
• Allows fast source selection during multi-camera productions
• Improves efficiency for technical directors in live broadcasts
• Supports large switcher configurations with multiple M/E buses
• Integrates directly with professional ATEM switcher systems

Additional Compatibility Information

The Blackmagic Design ATEM 4 M/E Advanced Panel 40 is a professional broadcast switcher control surface designed for ATEM live production systems. With four M/E rows, 40 input buttons per row, Ethernet connectivity, and integrated LCD source displays, it supports complex multi-camera production environments including broadcast studios, live events, and mobile production facilities.
