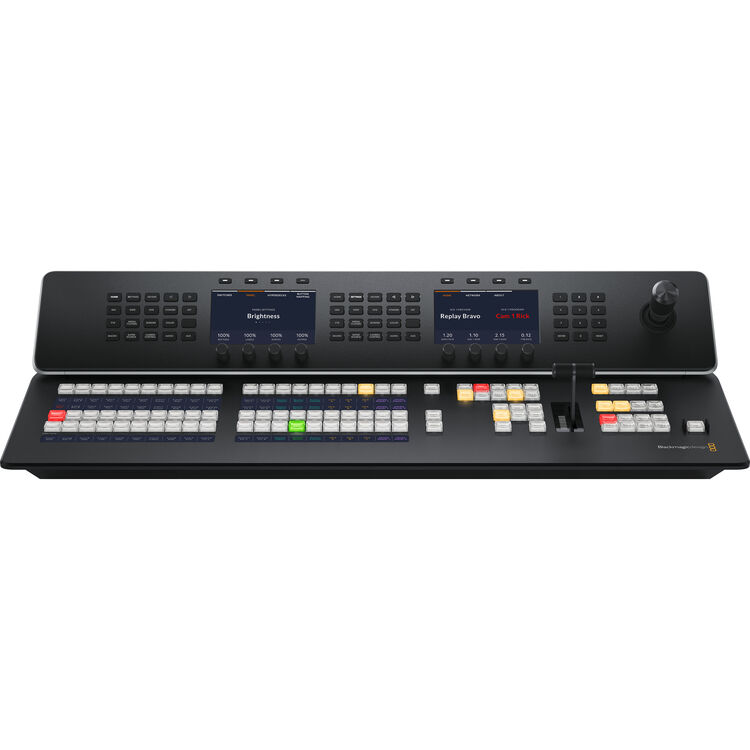

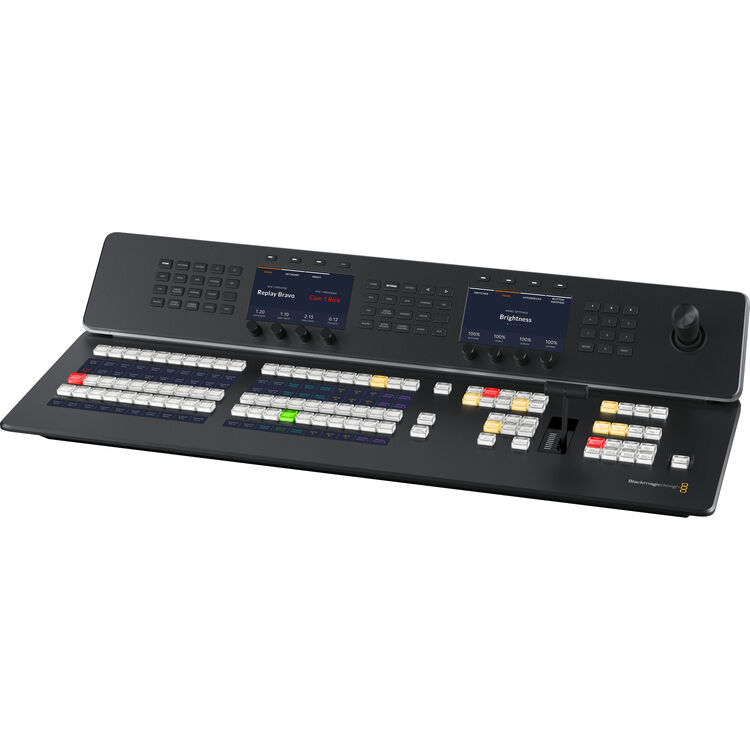

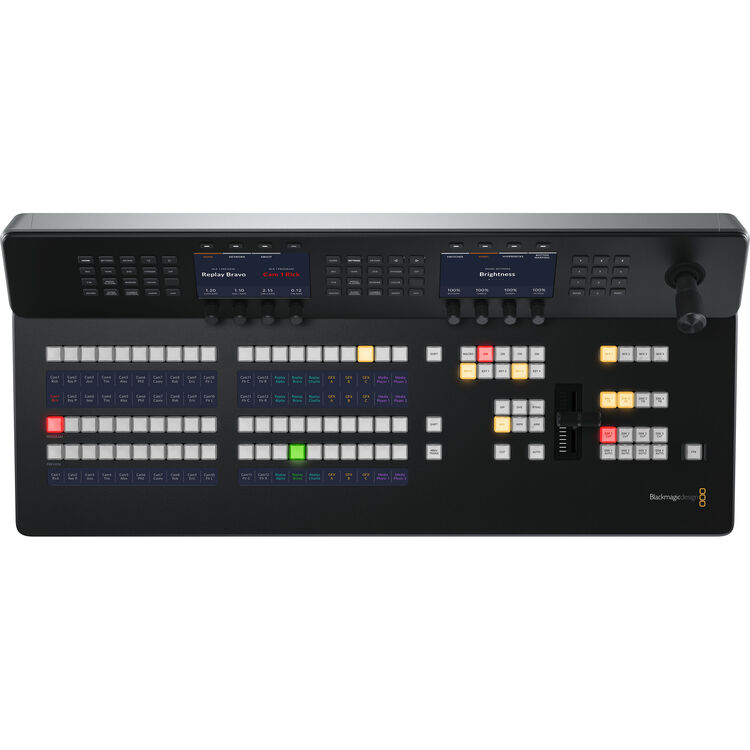

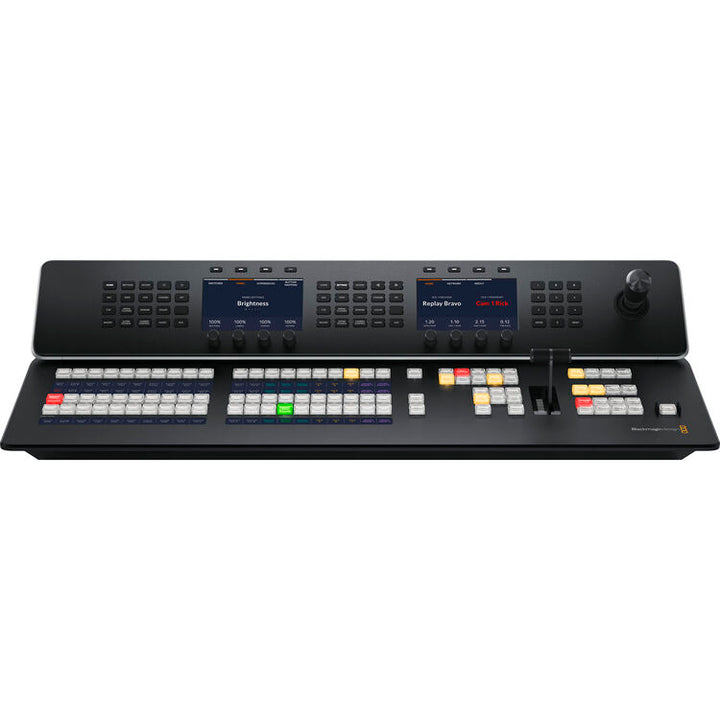

Blackmagic Design ATEM 1 M/E Advanced Panel 20

Professional hardware control panel for ATEM live production switchers

The Blackmagic Design ATEM 1 M/E Advanced Panel 20 is a professional broadcast control surface designed for live production environments using ATEM switchers. It provides a dedicated hardware interface that allows technical directors to perform precise switching, transitions, and source selection during multi-camera productions.

The panel features a single M/E row with 20 input buttons, giving operators direct access to video sources connected to the ATEM switcher. The layout includes program and preview buses, transition controls, and dedicated function buttons that allow operators to quickly execute switching operations during live broadcasts. Integrated LCD displays above each input allow customizable source labeling for clear identification during production.

Designed for professional production workflows, the ATEM 1 M/E Advanced Panel 20 connects to compatible ATEM switchers over Ethernet and features an ergonomic layout for comfortable operation during extended live production sessions. Illuminated buttons and responsive controls help ensure reliable performance in broadcast studios, live event production environments, and mobile production systems.

The compact form factor makes this panel well suited for control rooms and production setups that require professional hardware switching control while maintaining a smaller footprint.

Key Features

• Professional hardware control panel for ATEM production switchers
• Single M/E row with 20 input buttons
• Dedicated program and preview buses
• Integrated LCD displays for customizable input labels
• Illuminated buttons for clear status indication
• Ethernet connectivity for integration with ATEM switchers

Professional Applications

• Broadcast television production
• Live event production
• Studio-based multi-camera production
• Mobile production trucks and OB vans
• Professional streaming and live switching environments

System Integration

The ATEM 1 M/E Advanced Panel 20 integrates directly with compatible Blackmagic Design ATEM production switchers using an Ethernet connection. Once connected, the panel provides a dedicated hardware interface for controlling switching operations, transitions, and source selection within the ATEM production workflow.

Broadcast Workflow Benefits

In live production environments, fast and accurate switching is essential. The ATEM 1 M/E Advanced Panel 20 provides tactile hardware control that allows operators to quickly select sources and perform transitions with precision, improving efficiency and reliability during live broadcasts.

Frequently Asked Questions

What does the ATEM 1 M/E Advanced Panel 20 control?

It is a hardware control surface designed to operate compatible Blackmagic Design ATEM production switchers during live production.

How many inputs does the panel support?

The panel features one M/E row with 20 input buttons for selecting video sources.

How does the panel connect to the switcher?

The device connects to compatible ATEM switchers using an Ethernet connection.

What are the LCD displays used for?

The integrated LCD displays allow operators to assign and view customizable labels for each video source.

Where is the ATEM 1 M/E Advanced Panel 20 typically used?

It is commonly used in broadcast studios, live event production environments, and mobile production systems.

Related Equipment and Workflow Compatibility

The ATEM 1 M/E Advanced Panel 20 is designed for use with compatible Blackmagic Design ATEM production switchers that support hardware control panels. It provides a professional interface for managing switching and transitions within live production workflows.

In broadcast environments, the panel is commonly deployed alongside ATEM switchers, studio cameras, routers, and other production control equipment used in multi-camera live production systems.

Why Professionals Use This Type of Product

• Provides tactile control for live switching operations
• Allows fast source selection during multi-camera productions
• Improves switching accuracy for technical directors
• Supports professional live production workflows
• Integrates directly with ATEM switcher systems

Additional Compatibility Information

The Blackmagic Design ATEM 1 M/E Advanced Panel 20 is a professional broadcast switcher control surface designed for ATEM live production systems. With a single M/E row, 20 input buttons, Ethernet connectivity, and integrated LCD source displays, it supports multi-camera live production workflows in broadcast studios, live events, and mobile production facilities.
