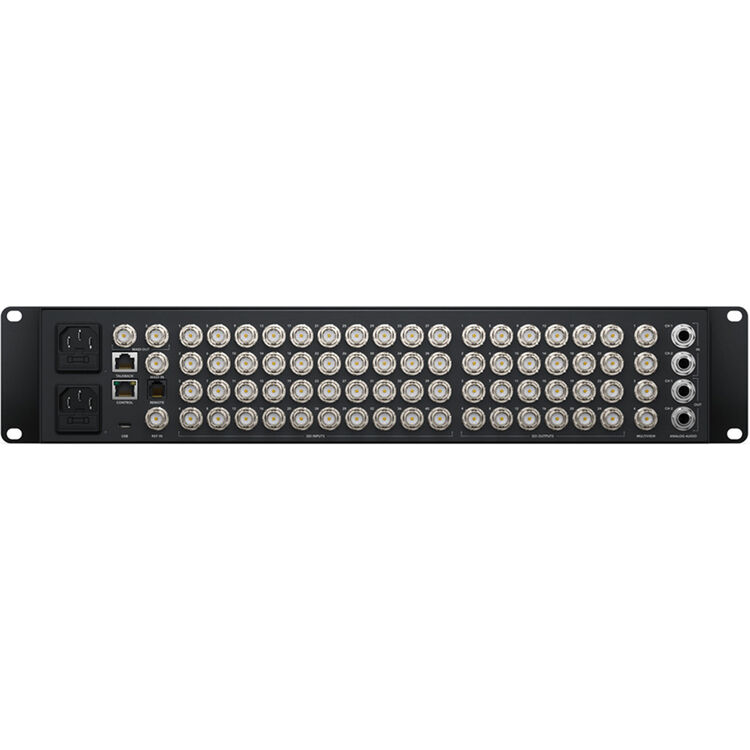

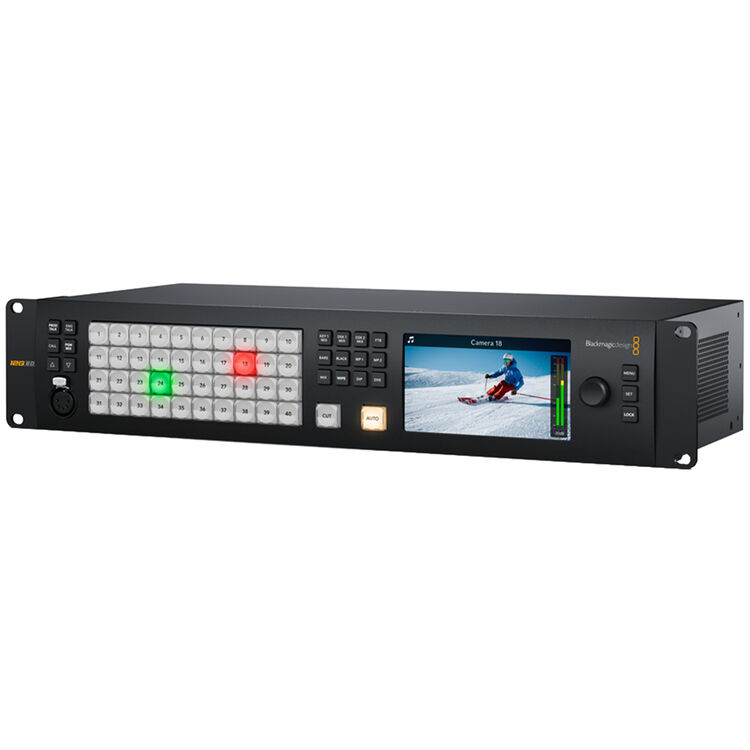

Blackmagic Design ATEM 4 M/E Constellation 4K

Professional 4K live production switcher with 4 M/E and 12G-SDI connectivity

The Blackmagic Design ATEM 4 M/E Constellation 4K is a high-end live production switcher built for professional broadcast, live event production, and multi-camera studio environments. It is designed to handle complex productions where multiple sources, layered effects, and simultaneous outputs are required.

This switcher supports 4K workflows and features a high density of 12G-SDI inputs and outputs for reliable, high-bandwidth signal routing. With four independent mix effects engines, it enables advanced switching, keying, and transitions, allowing operators to build sophisticated live productions with multiple program outputs and visual layers.

The ATEM 4 M/E Constellation 4K integrates into SDI-based broadcast infrastructures and works seamlessly with Blackmagic Design cameras, HyperDeck recorders, and routing systems. It is well suited for studios, OB trucks, and live venues that require scalable switching and consistent performance across demanding production workflows.

Its rack-mountable design makes it ideal for fixed installations and mobile production systems that require high input counts and flexible multi-M/E control in a compact form factor.

Key Features

• Supports professional 4K live production workflows
• Four independent M/E engines for advanced multi-layer switching
• High-density 12G-SDI inputs and outputs
• Advanced keying, transitions, and real-time effects processing
• Designed for large-scale broadcast and live event production
• Rack-mountable chassis for professional installation

Professional Applications

• Broadcast television production
• Live sports and event coverage
• Concert and entertainment production
• Multi-camera studio production
• 4K live streaming and broadcast workflows

System Integration

The ATEM 4 M/E Constellation 4K integrates into professional Blackmagic Design workflows, including compatibility with SDI cameras, HyperDeck recorders, and broadcast routing systems. Its 12G-SDI connectivity ensures seamless operation within modern 4K infrastructures requiring high reliability and bandwidth.

Broadcast Workflow Benefits

This switcher enables production teams to manage complex live workflows with multiple simultaneous outputs and layered effects. The 4 M/E architecture allows independent program creation and flexible signal routing, improving efficiency and creative control in demanding live production environments.

Frequently Asked Questions

What does 4 M/E mean in this switcher?

It refers to four independent mix effects engines, allowing multiple layers and outputs to be created simultaneously.

Does the ATEM 4 M/E Constellation 4K support 4K video?

Yes, it is designed for professional 4K live production workflows.

What type of video connections are used?

It uses 12G-SDI connections for high-bandwidth video input and output.

Is this switcher suitable for large productions?

Yes, it is designed for complex, multi-camera productions with many sources.

Can it be installed in a rack system?

Yes, it features a rack-mountable design for professional environments.

Related Equipment and Workflow Compatibility

The ATEM 4 M/E Constellation 4K is commonly used with Blackmagic Design cameras, HyperDeck recorders, and SDI routing systems. It supports scalable broadcast workflows and integrates into production environments requiring multiple signal paths and outputs.

It is ideal for use in OB trucks, broadcast studios, and live production facilities that require advanced switching capabilities with high-capacity SDI connectivity.

Why Professionals Use This Type of Product

• Enables multiple simultaneous outputs with 4 M/E architecture
• Handles high-density multi-camera workflows
• Provides reliable 12G-SDI connectivity for 4K production
• Reduces complexity in large-scale switching systems
• Delivers advanced creative control for live production

Additional Compatibility Information

The Blackmagic Design ATEM 4 M/E Constellation 4K is designed for 4K broadcast systems, 12G-SDI infrastructures, and professional live production environments requiring advanced multi-M/E switching and high-capacity SDI connectivity.
