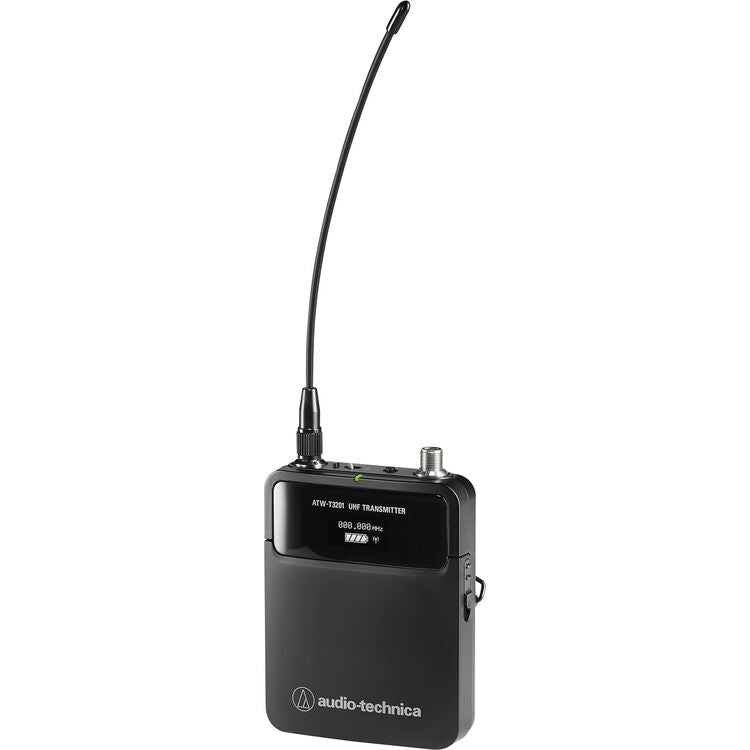

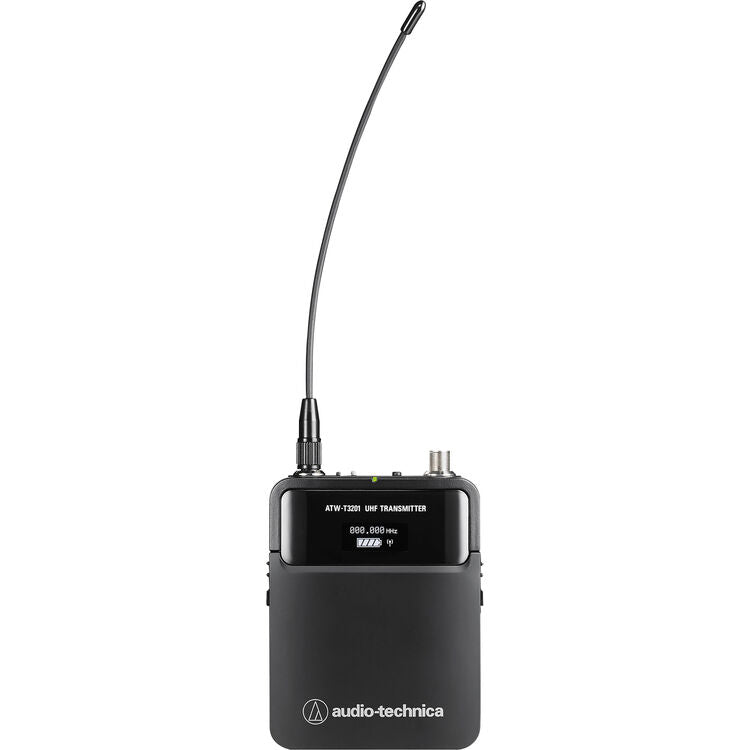

Audio-Technica ATW-T3201 3000 Series Bodypack Transmitter (DE2: 470 to 530 MHz)

Professional UHF Bodypack Transmitter for 3000 Series Wireless Systems

The Audio-Technica ATW-T3201 is a 3000 Series 4th generation bodypack transmitter designed for presenters, clergy, lecturers, musicians, and performers using professional wireless audio systems. Its rugged metal housing and rounded design support comfortable wear in houses of worship, educational facilities, business environments, theaters, and musical stages.

Operating across the DE2 470 to 530 MHz range, the transmitter provides a wide 60 MHz UHF tuning range with 2394 selectable frequencies and selectable 10 or 30 mW RF output power. A 4-pin cH-style screw-down connector and adjustable input level support compatible cH-style lavalier and headset microphones or an adapter cable for guitar and bass applications.

The ATW-T3201 is compatible with Audio-Technica ATW-R3210 and ATW-R3210 Networked receivers and can synchronize with a receiver through infrared. Its bright OLED display presents operating information including battery status, mute status, and frequency, while menu-driven controls are covered to help prevent accidental setting changes during professional use.

A programmable multifunction button can be configured to switch to a backup frequency in the event of interference, while the tactile mute toggle switch provides physical confirmation of mute control. The field-replaceable whip antenna, locking battery compartment door, and charging terminals further support demanding wireless system operation.

Key Features

• Designed for Audio-Technica 3000 Series 4th generation wireless systems
• DE2 frequency band covering 470.125 to 529.975 MHz
• Wide 60 MHz UHF tuning range with 2394 selectable frequencies
• 4-pin Hirose cH-style input for compatible microphone and instrument connections
• Selectable 10 or 30 mW RF output power
• OLED display, infrared synchronization, and tactile mute control

Professional Applications

• House of worship wireless microphone systems
• Corporate presentations and business environments
• Classrooms, lectures, and educational facilities
• Theater and stage performance systems
• Wireless guitar and bass applications with a compatible adapter cable

System Integration

The ATW-T3201 integrates with Audio-Technica ATW-R3210 and ATW-R3210 Networked receivers as part of a 3000 Series wireless system. Infrared synchronization simplifies transmitter and receiver setup, while the programmable multifunction button can support a clean backup frequency workflow when interference affects the active operating frequency.

Broadcast Workflow Benefits

For professional wireless audio workflows, the ATW-T3201 combines flexible input handling, selectable RF power, clear OLED status information, and physical mute control in a durable metal bodypack. Low-impedance microphone levels and high-impedance instrument or line levels are supported, with gain adjustable from -10 to +20 dB in 2 dB increments for practical system configuration.

Frequently Asked Questions

Which receivers are compatible with the Audio-Technica ATW-T3201?

The ATW-T3201 is compatible with Audio-Technica ATW-R3210 and ATW-R3210 Networked receivers.

What frequency range does this ATW-T3201 DE2 transmitter use?

This DE2 model operates from 470.125 to 529.975 MHz and provides a 60 MHz UHF tuning range with 2394 selectable frequencies.

Can the ATW-T3201 be used with a lavalier or headset microphone?

Yes. Its 4-pin cH-style screw-down connector supports compatible cH-style lavalier and headset microphones. A microphone is not included with the transmitter.

Can this bodypack transmitter be used with an instrument?

Yes. The transmitter accepts high-impedance musical instrument or line levels and can be used with an adapter cable for guitar and bass applications.

What battery and charging options does the ATW-T3201 support?

The transmitter operates on two AA batteries and supports alkaline or rechargeable NiMH battery operation. Charging terminals on the transmitter work with optional ATW-CHG3 and ATW-CHG3N charging docks to recharge AA NiMH batteries while they remain inside the transmitter.

Related Equipment and Workflow Compatibility

The Audio-Technica ATW-T3201 is intended for use with ATW-R3210 and ATW-R3210 Networked receivers in 3000 Series 4th generation wireless systems. Its cH-style input can accommodate compatible lavalier or headset microphones, while an appropriate adapter cable supports guitar and bass connections.

For rechargeable battery workflows, the bodypack includes charging terminals compatible with the optional ATW-CHG3 charging dock and ATW-CHG3N networked charging dock. The ATW-CHG3N also allows charging status monitoring of the transmitter.

Why Professionals Use This Type of Product

• Provides wearable wireless transmission for presenters, clergy, lecturers, and performers
• Supports microphone, line, and instrument input levels
• Offers selectable RF output power for different wireless operating conditions
• Provides OLED access to battery, mute, and frequency information
• Integrates with compatible receiver and charging systems for organized wireless workflows

Additional Compatibility Information

The Audio-Technica ATW-T3201 DE2 bodypack transmitter is designed for professional analog UHF wireless microphone systems using compatible Audio-Technica 3000 Series receivers. Its 470 to 530 MHz operating range, cH-style 4-pin input, infrared synchronization, adjustable gain, selectable RF output, and optional charging dock compatibility make it suited to professional wireless audio installations and performance environments.
