Audio-Technica ATW-R3210DE2 3000 Series 4th Generation Wireless Receiver (B-STOCK)

Single-Channel True Diversity UHF Wireless Receiver for Professional Audio Systems

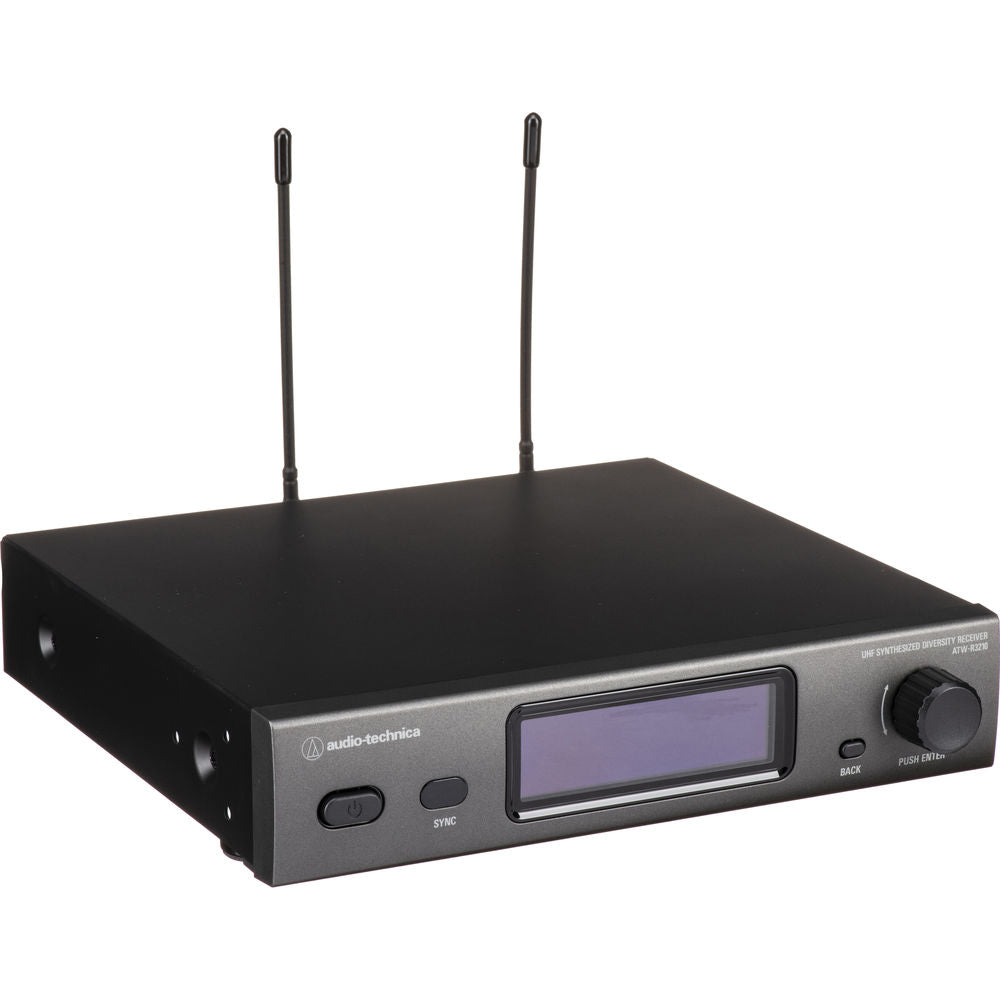

The Audio-Technica ATW-R3210DE2 is a single-channel half-rack wireless receiver from the 3000 Series 4th Generation, designed for professional wireless audio applications in houses of worship, business and education environments, theaters, and live performance venues. Operating in the DE2 frequency band from 470 to 530 MHz, it provides reliable UHF wireless reception for presenters, clergy, lecturers, and performers.

The receiver features true diversity reception, a wide 60 MHz tuning range, and 2,395 selectable frequencies. An automatic frequency scan searches for a suitable operating frequency, while pre-coordinated frequency scan groups simplify frequency selection in multichannel wireless systems. Up to 40 microphone channels can operate simultaneously within each frequency band.

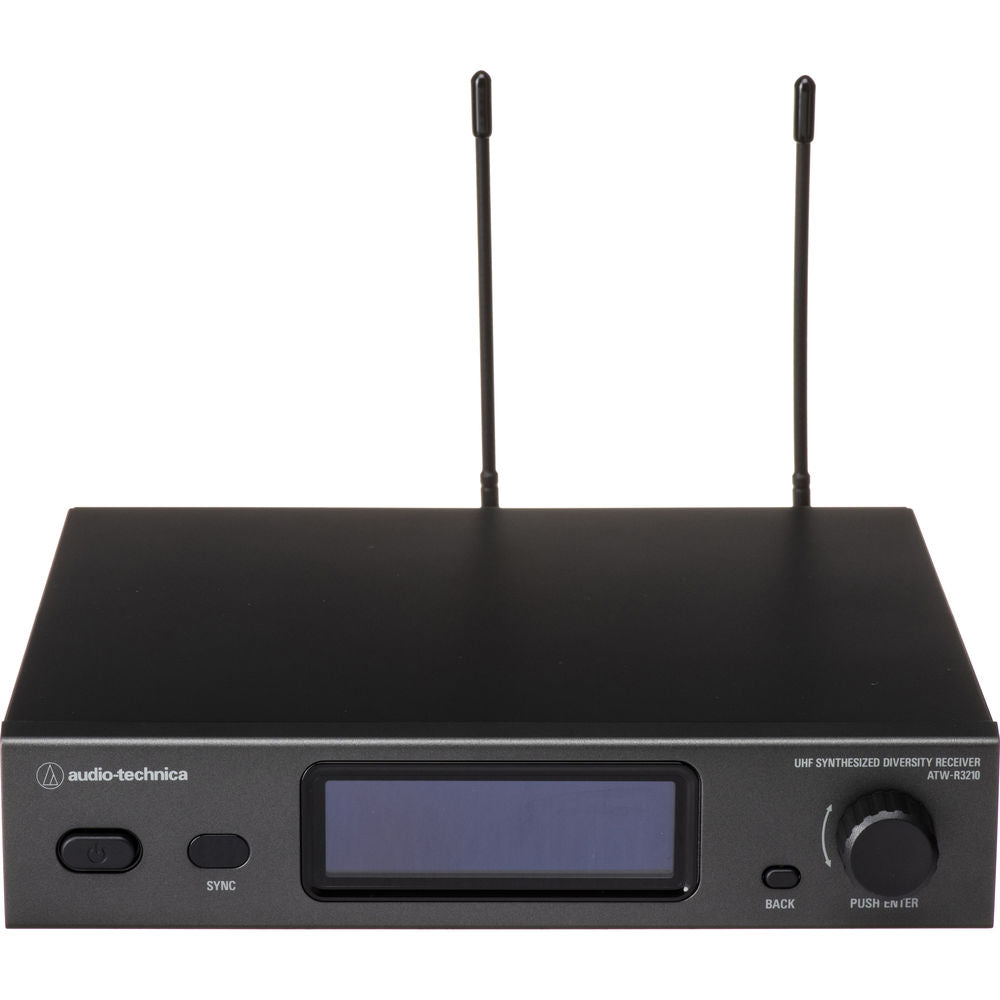

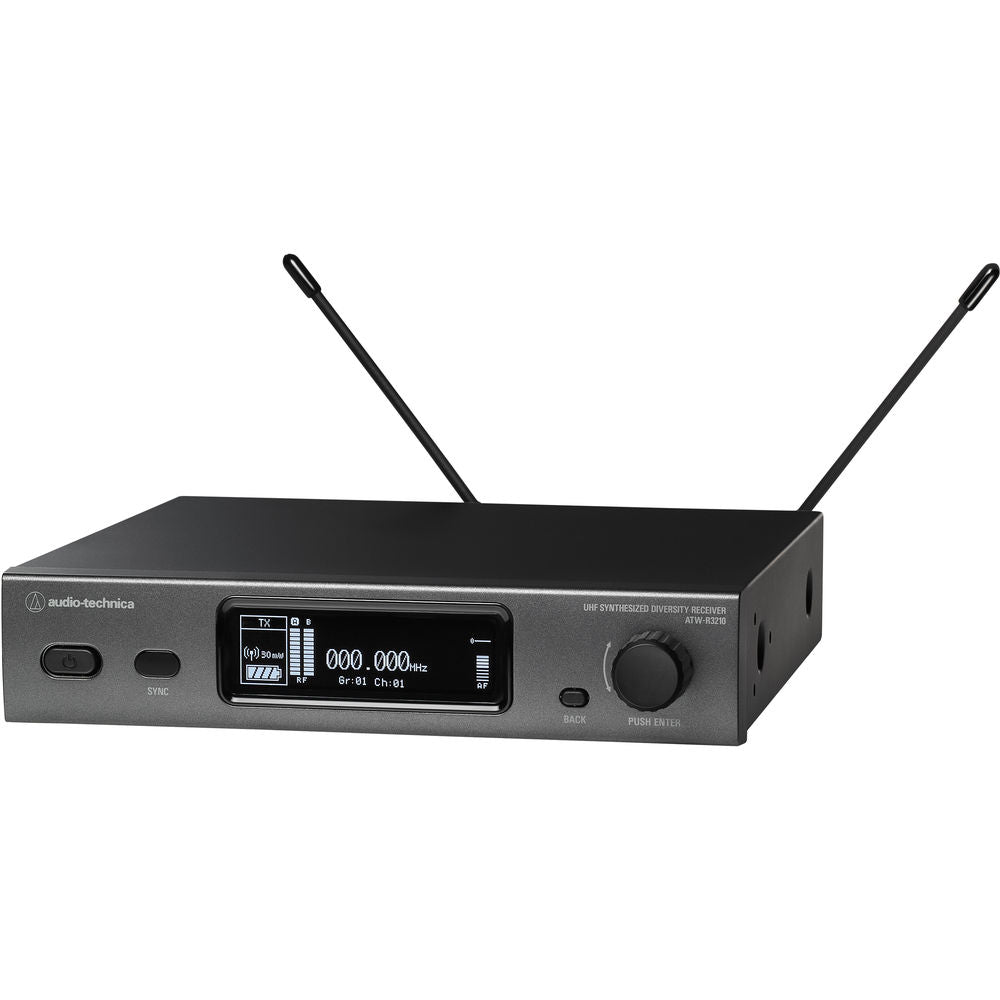

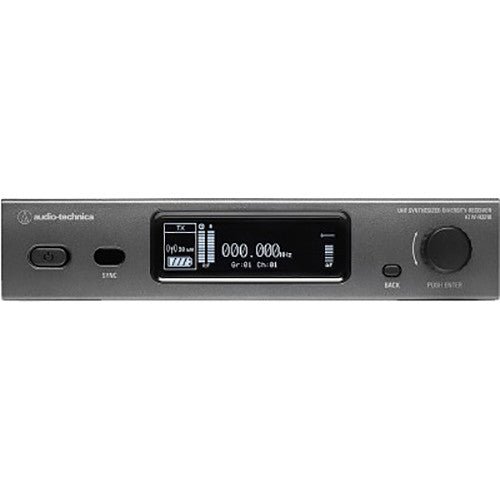

A bright dual-mode OLED display provides system information including RF signal strength, frequency, mute status, audio modulation level, and compatible transmitter information. The display can also show transmitter battery life and mute status, while front-panel controls provide access to receiver settings and a locking function helps prevent accidental changes.

The ATW-R3210DE2 is compatible with the Audio-Technica ATW-T3201 bodypack transmitter and ATW-T3202 handheld transmitter. Balanced XLR and unbalanced 1/4-inch audio outputs support connection to professional mixers and PA systems, while the rugged full-metal chassis and included rackmount hardware support portable and permanent installations.

Key Features

• Single-channel 3000 Series 4th Generation UHF wireless receiver
• DE2 frequency band operates from 470 to 530 MHz
• True diversity reception for reliable RF performance
• 60 MHz tuning bandwidth with 2,395 selectable frequencies
• Dual-mode OLED display with RF, audio, mute, and transmitter information
• Balanced XLR and unbalanced 1/4-inch audio outputs

Professional Applications

• House of worship wireless microphone systems
• Corporate meeting and presentation audio
• Education and lecture environments
• Theater and live performance systems
• Professional multichannel wireless audio installations

System Integration

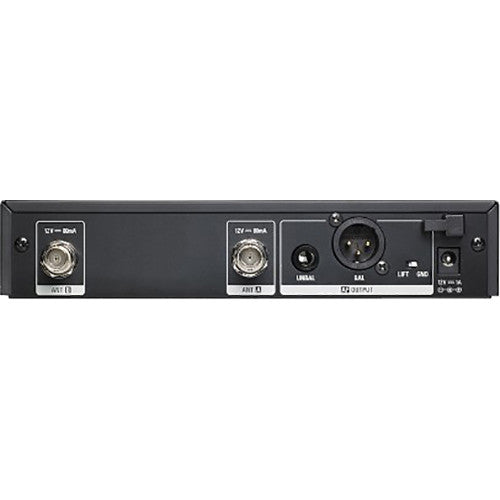

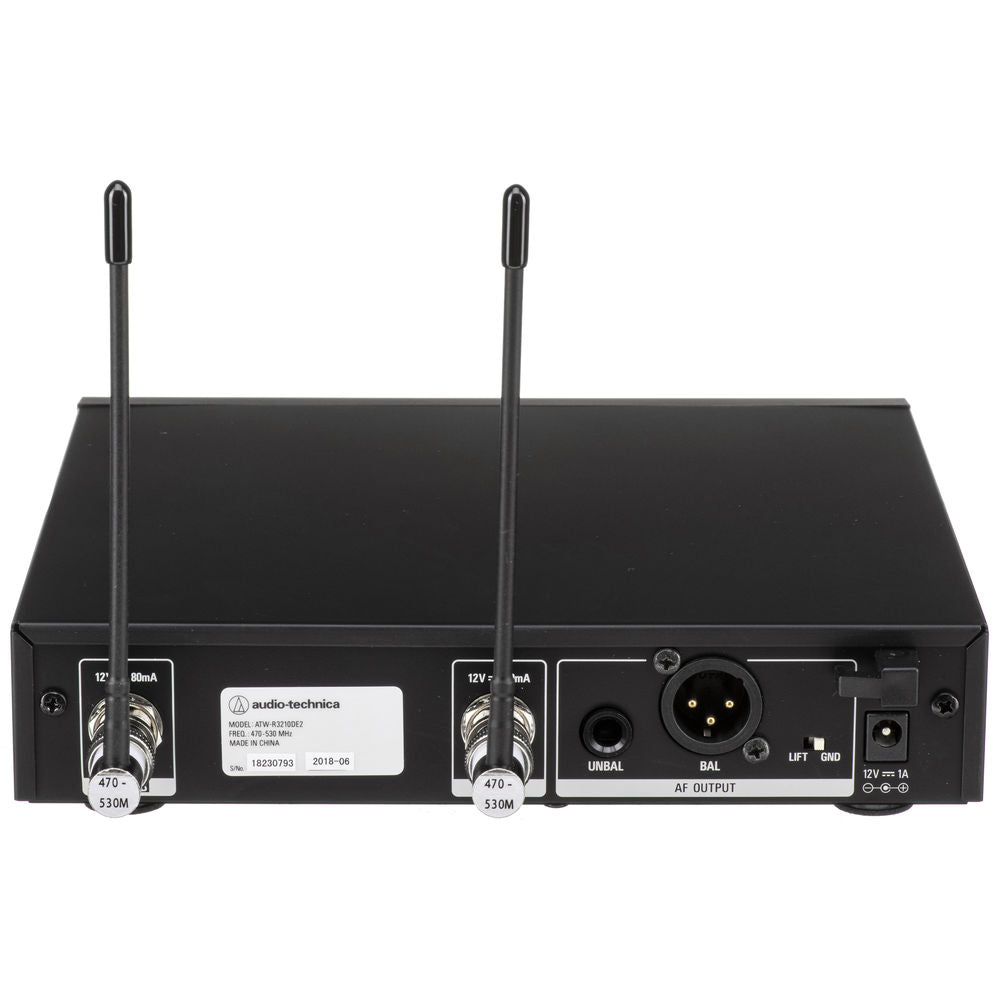

The Audio-Technica ATW-R3210DE2 integrates into professional wireless microphone systems as a single-channel receiver for compatible ATW-T3201 bodypack and ATW-T3202 handheld transmitters. Its balanced XLR output supports connection to professional mixing consoles and PA systems, while the 1/4-inch unbalanced output provides an additional audio connection option. Included rackmount hardware allows the half-rack receiver to be installed in a standard 19-inch equipment rack.

Broadcast Workflow Benefits

Professional wireless audio environments require flexible frequency selection and dependable reception. The ATW-R3210DE2 combines true diversity reception with automatic frequency scanning and 2,395 selectable frequencies to help operators configure a clean operating channel. A backup frequency can also be set in advance for quick switching from a compatible transmitter if unexpected interference occurs.

Frequently Asked Questions

Is the Audio-Technica ATW-R3210DE2 a complete wireless microphone system?

No. The ATW-R3210DE2 is a single-channel wireless receiver. A compatible transmitter and microphone are not included.

What frequency range does the ATW-R3210DE2 use?

The DE2 version operates in the 470 to 530 MHz UHF frequency band.

Which transmitters are compatible with the ATW-R3210DE2?

The receiver is compatible with the Audio-Technica ATW-T3201 bodypack transmitter and ATW-T3202 handheld transmitter.

What audio outputs does the receiver provide?

The ATW-R3210DE2 provides one balanced 3-pin XLR output and one unbalanced 1/4-inch TRS output.

Can the ATW-R3210DE2 be rack mounted?

Yes. The half-rack receiver can be mounted in a standard 19-inch rack using the included rackmount brackets and hardware.

Related Equipment and Workflow Compatibility

The Audio-Technica ATW-R3210DE2 is designed for use with 3000 Series 4th Generation ATW-T3201 bodypack and ATW-T3202 handheld transmitters. Compatible bodypack microphone and instrument options can be selected for spoken word, vocal, and instrument applications, while the handheld transmitter supports interchangeable compatible microphone capsules.

BNC antenna connections provide bias power for active remote antennas and other compatible inline RF devices. Audio-Technica ATW-A49 directional remote antennas and compatible antenna distribution equipment can be incorporated into professional wireless system configurations requiring expanded RF system integration.

Why Professionals Use This Type of Product

• Provides true diversity reception for professional wireless audio systems
• Offers 2,395 selectable frequencies across a 60 MHz tuning range
• Simplifies frequency setup with automatic and pre-coordinated scanning options
• Supports compatible bodypack and handheld transmitter configurations
• Provides rackmount installation and professional XLR audio connectivity

Additional Compatibility Information

The Audio-Technica ATW-R3210DE2 3000 Series wireless receiver is designed for professional UHF wireless microphone systems operating in the 470 to 530 MHz DE2 frequency band. Its true diversity reception, 60 MHz tuning bandwidth, automatic frequency scanning, OLED display, XLR output, rackmount capability, and compatibility with ATW-T3201 and ATW-T3202 transmitters support houses of worship, corporate AV, education, theater, and live sound applications.
