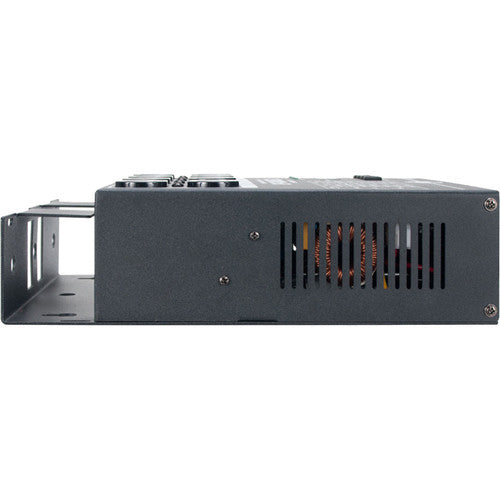

American DJ DP-DMX20L 4-Channel DMX Dimmer Pack

4-Channel DMX Dimmer Pack with Edison Outputs

The American DJ DP-DMX20L is a 4-channel DMX dimmer pack designed for lighting control in stage, worship, mobile event, venue, and production environments. It gives lighting operators a compact way to control compatible par cans, effects lights, and other connected fixtures through independently assignable dimming or switching channels.

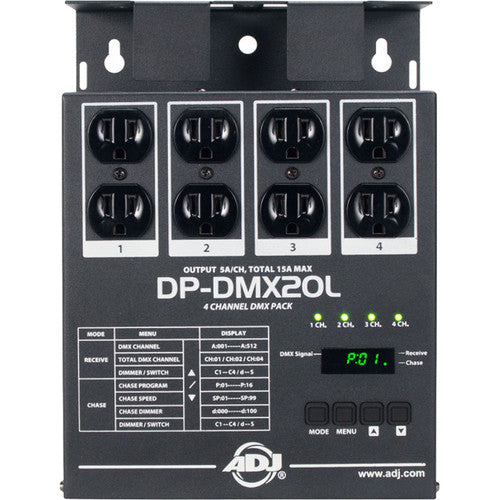

The DP-DMX20L features eight Edison sockets with two sockets per channel, allowing up to eight connected fixtures to be managed across four control channels. It supports selectable 1, 2, or 4 channel operation, includes a digital display for setting the starting DMX address and menu options, and provides 3-pin XLR DMX input and output for integration with a DMX controller.

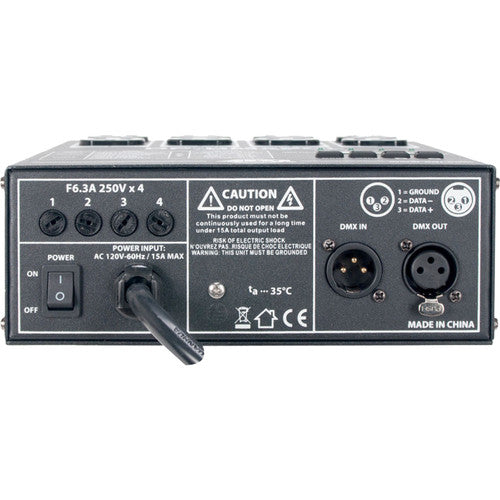

For standalone use, the DP-DMX20L includes 16 built-in chases with adjustable speed and intensity settings, making it practical for simple automated lighting looks without a separate controller. It also includes an adjustable master dim level, four LED channel activity indicators, external channel fuses for quick replacement, and zero crossing circuitry for protection of transformer loads when switching.

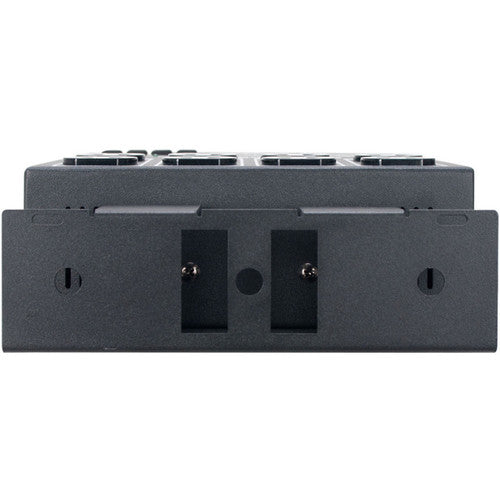

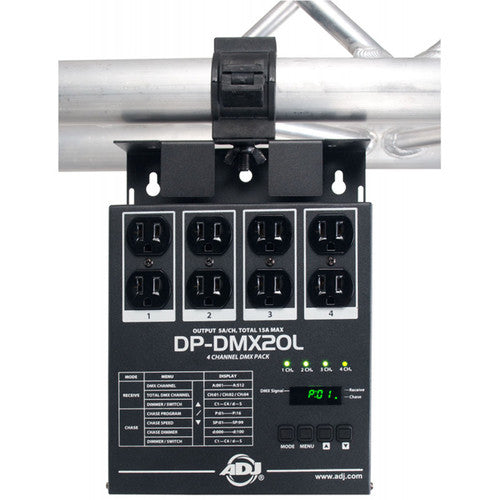

With 5 amps per channel, a 15 amp maximum total load, 120 VAC power, and a reversible mounting panel, the DP-DMX20L is built for portable lighting rigs, truss-mounted setups, and installed systems that need straightforward DMX dimming and switching control.

Key Features

• 4-channel DMX dimmer pack for compatible lighting fixtures
• Independently assignable dimming or switching channels
• Eight Edison sockets with two sockets per channel
• Selectable 1, 2, or 4 channel operation
• 16 built-in chases with adjustable speed and intensity settings
• 3-pin XLR DMX input and output for DMX controller integration

Professional Applications

• Stage lighting control
• Mobile DJ and event lighting systems
• Worship lighting environments
• Truss-mounted lighting rigs
• Standalone chase lighting operation

System Integration

The American DJ DP-DMX20L fits into a DMX lighting system by connecting compatible fixtures to its Edison output sockets and receiving control through its 3-pin XLR DMX input. It can be used with a universal DMX controller, including compatible Elation control systems listed for this type of workflow, or operated as a standalone unit with its built-in chase programs.

Broadcast Workflow Benefits

For live production and event lighting workflows, the DP-DMX20L helps centralize dimming and switching control for multiple connected fixtures. Operators can assign channels, monitor activity with LED indicators, adjust master dim levels, and run built-in chase effects, reducing manual switching and making lighting operation more consistent across services, performances, events, and small productions.

Frequently Asked Questions

What is the American DJ DP-DMX20L used for?

The DP-DMX20L is used to control compatible lighting fixtures through a 4-channel DMX dimmer pack with independently assignable dimming or switching channels.

How many outlets does the DP-DMX20L provide?

The DP-DMX20L provides eight Edison sockets, with two sockets assigned to each of its four channels.

Can the DP-DMX20L run without a DMX controller?

Yes. The DP-DMX20L can be used as a standalone unit and includes 16 built-in chases with adjustable speed and intensity settings.

What DMX connectors does the DP-DMX20L use?

The DP-DMX20L uses 3-pin XLR DMX input and output connectors for connection to a DMX lighting control system.

What is the maximum load for the DP-DMX20L?

The DP-DMX20L supports 5 amps per channel and a maximum total load of 15 amps across all channels.

Related Equipment and Workflow Compatibility

The DP-DMX20L is commonly used with DMX lighting controllers, universal DMX control systems, 3-pin DMX cabling, compatible par cans, effects lights, and lighting rigs that require Edison output dimming or switching control.

In portable and installed production environments, the DP-DMX20L supports organized lighting control for stages, houses of worship, event spaces, and mobile rigs where connected fixtures need to be controlled through DMX or standalone chase operation.

Why Professionals Use This Type of Product

• Centralizes control of multiple connected lighting fixtures
• Provides dimming or switching control from the same unit
• Supports standalone chase programs for simple automated looks
• Offers flexible DMX channel operation for different control setups
• Mounts easily into truss-based lighting rigs and portable systems

Additional Compatibility Information

The American DJ DP-DMX20L 4-channel DMX dimmer pack is suited for DMX lighting control systems, mobile DJ lighting rigs, stage lighting setups, worship lighting environments, event production systems, truss-mounted lighting, and compatible par can or effects light workflows that use Edison outputs and 3-pin XLR DMX connectivity.
