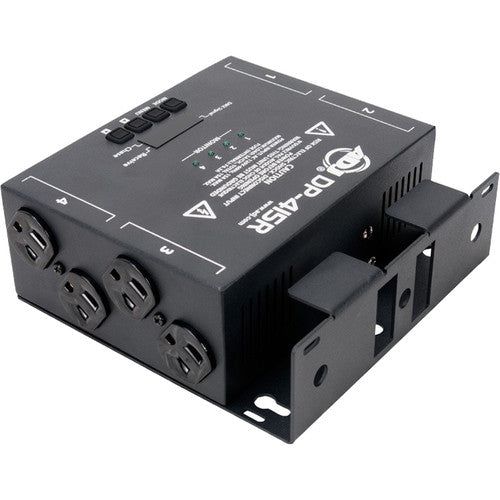

American DJ DP-415R 4-Channel Dimmer / Switch Pack

4-Channel DMX and RDM Dimmer Switch Pack

The American DJ DP-415R is a compact, portable 4-channel dimmer and switch pack designed for lighting control in stage, event, worship, mobile production, and installed lighting environments. It gives lighting operators a practical way to control multiple connected fixtures from one centralized dimmer and switch unit.

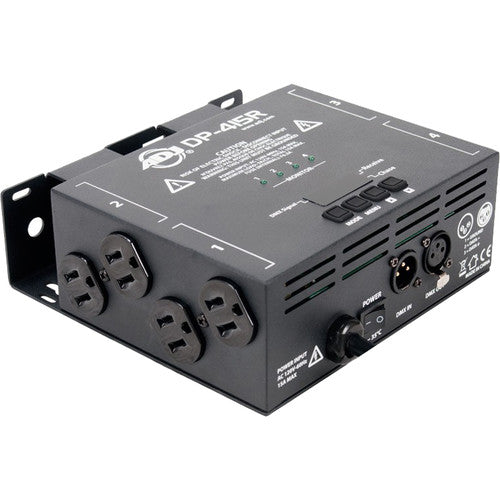

With eight 3-prong 15A Edison sockets, the DP-415R can control up to eight lighting fixtures across four channels. It features a 4-button digital display menu, 3-pin XLR DMX input and output, and DMX/RDM control, allowing bidirectional communication over a standard DMX line for more flexible lighting system management.

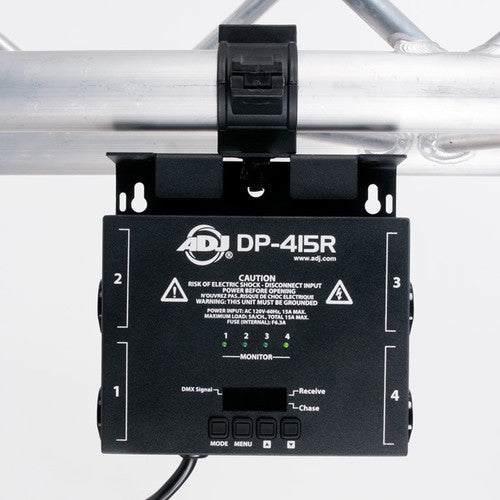

The DP-415R is built for real production use with a reversible hanging bracket that can be mounted to a wall, truss, or used with a clamp. LED indicators show when the unit is powered on and when a DMX signal is present, helping operators confirm system status quickly during setup, programming, and operation.

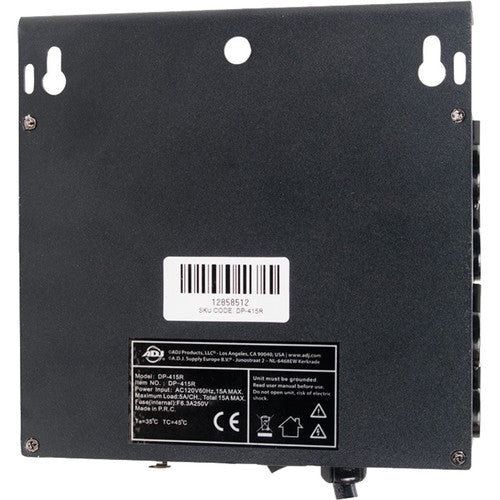

With 120 VAC, 60 Hz input power, a 15 amp total maximum load, and 5 amp output capacity per socket, the DP-415R provides a compact control solution for compatible lighting systems that need reliable DMX dimming, switching, and fixture power management.

Key Features

• Compact 4-channel dimmer and switch pack for lighting control
• Eight 3-prong 15A Edison sockets for control of up to eight lighting fixtures
• DMX and RDM control for bidirectional communication over a standard DMX line
• 3-pin XLR DMX input and output for integration into DMX lighting systems
• 4-button digital display menu for setup and control access
• Reversible hanging bracket for wall, truss, or clamp mounting

Professional Applications

• Stage lighting control
• Mobile DJ and event lighting systems
• Worship lighting environments
• Small venue lighting installations
• DMX-controlled dimming and switching workflows

System Integration

The American DJ DP-415R fits into a DMX lighting workflow by connecting compatible lighting fixtures to its Edison output sockets and integrating with a DMX control chain through its 3-pin XLR DMX input and output. Its DMX/RDM capability supports control communication over the same DMX line, while the digital display and menu buttons provide access to setup functions for practical field or installed use.

Broadcast Workflow Benefits

For live production and event environments, the DP-415R helps consolidate dimming and switching control for multiple connected lighting fixtures. By giving operators four control channels, status indicators, and DMX/RDM integration in one portable unit, it supports faster setup, cleaner lighting control, and more organized fixture management during rehearsals, services, performances, and productions.

Frequently Asked Questions

What is the American DJ DP-415R used for?

The DP-415R is used to control compatible lighting fixtures through a 4-channel dimmer and switch pack in DMX lighting systems.

How many fixtures can the DP-415R control?

The DP-415R includes eight 3-prong Edison sockets, allowing control of up to eight connected lighting fixtures across four channels.

Does the DP-415R support DMX?

Yes. The DP-415R includes 3-pin XLR DMX input and output connectors and supports DMX control.

Does the DP-415R support RDM?

Yes. The DP-415R is RDM compliant, allowing bidirectional communication over a standard DMX line.

How can the DP-415R be mounted?

The DP-415R includes a reversible hanging bracket that can be used for wall mounting, truss mounting, or clamp-based mounting.

Related Equipment and Workflow Compatibility

The DP-415R is commonly used with DMX lighting controllers, 3-pin DMX cabling, compatible stage lighting fixtures, and lighting systems that require centralized dimming or switching through Edison power outputs. It is relevant for American DJ and ADJ lighting workflows that need compact channel-based power control.

In portable and installed lighting environments, the DP-415R supports organized fixture control for venues, event productions, houses of worship, mobile lighting rigs, and small stages where DMX/RDM integration and physical outlet control are needed.

Why Professionals Use This Type of Product

• Centralizes control of multiple connected lighting fixtures
• Supports DMX and RDM communication in one compact unit
• Provides four channels for dimming and switching workflows
• Offers flexible mounting for truss, wall, or clamp-based installation
• Helps simplify lighting setup and fixture power management

Additional Compatibility Information

The American DJ DP-415R 4-channel dimmer switch pack is suited for DMX lighting control systems, RDM lighting workflows, stage lighting setups, mobile DJ lighting rigs, worship lighting environments, and event production systems that use 3-pin XLR DMX connectivity and Edison output control.
