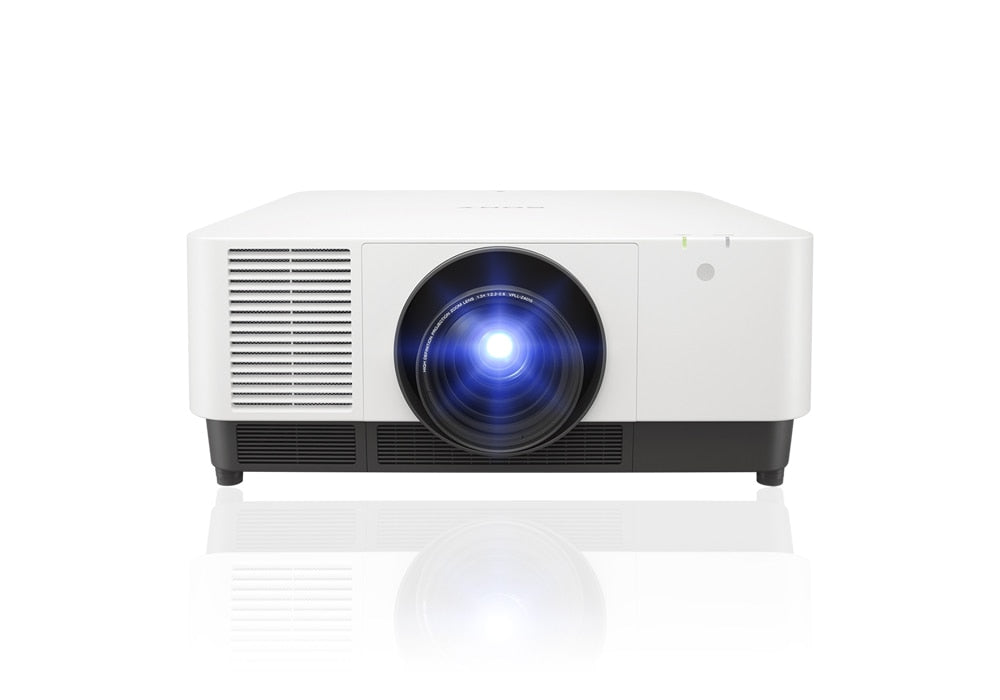

Name: Sony VPLFHZ91L 9,000 Lumens WXUGA 3LCD Laser Projector
Brand: Sony
SKU: VPL-FHZ91L
Price: 10499.0 USD
Availability: InStock

Sony VPLFHZ91L 9,000 Lumens WXUGA 3LCD Laser Projector

Quantity

Retail: $17,000.00 AVE Price: $10,499.00

AVE Member Price: $9,449.10

Captivate your audience in conference halls, lecture theaters, galleries, museums, visitor attractions and other large spaces. Very high light output of 9,000 lm (9,800 lm center) VPL-FHZ91L ensures big-screen presentations with extra presence, even in brightly lit rooms.

Display system

3 LCD system

Display device

Size of effective display area

1” x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of pixels

6,912,000 (1920 x 1200 x 3) pixels

Aspect ratio

16:10

Resolution

WUXGA (1920 x 1200 pixels)

Projection lens

Focus

Powered/Manual(Depend on lens)

Zoom - Powered/Manual

Powered/Manual(Depend on lens)

Zoom - Ratio

Depend on Lens

Throw ratio

Depend on Lens

Lens shift - Powered/Manual

Powered

Lens shift - Range Vertical/Horizontal

Range Vertical: Depends on the lens
Range Horizontal: Depends on the lens

Light source

Type

Laser diode

Filter replacement cycle (Max.)

10,000 H (service maintenance)

Screen size

Depend on Lens

Light output *1

Mode: Standard

9,000 lm*2 / 9,800 lm (Center)*3

Mode: Middle

8,000 lm

Mode: Low

7,000 lm

Color light output *1

Mode: Standard

9,000lm

Mode: Middle

8,000 lm

Mode: Low

7,000 lm

Contrast ratio *1

Contrast ratio (full white / full black)

Contrast ratio (full white/full black): ∞ : 1

Displayable scanning frequency

Horizontal

15 kHz to 92 kHz

Vertical

48 Hz to 92 Hz

Accepted signal resolution

Computer signal input

Maximum signal resolution: 1920 x 1200

Video signal input

480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p, 1080/30p*4

Keystone correction (Max.)

Horizontal

+/- 30 degrees

Vertical

+/- 30 degrees

INPUT OUTPUT (Computer/Video/Control)

INPUT A

RGB / Y PB PR input connector: 5 BNC (female)

INPUT B

RGB input connector: Mini D-sub 15-pin (female)

INPUT C

DVI input connector: DVI-D 24-pin (single link), HDCP support
HDCP: v1.4

INPUT D

HDMI input connector: HDMI 19-pin, HDCP support
HDCP: v1.4

INPUT E

HDBaseT interface connector: RJ45, 3 play

INPUT F

Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20)

INPUT G

HTML Viewer

OUTPUT 1

Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female)

USB-1

Type-A x 1

USB-2

Type-B x 1 (for service)

REMOTE

D-sub9pin male/RS232C

LAN

RJ45, 10BASE-T/100BASE-TX/1000BASE-T

Acoustic Noise*1

Light output mode: Standard

39 dB

Light output mode: Middle

39 dB

Operating temperature / Operating humidity

0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)

Storage temperature / Storage humidity

-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)

Power requirements

AC 100 V to 240 V, 8.4 A to 3.4 A, 50 Hz/60 Hz

Power consumption

AC 100 V to 120 V

840 W

AC 220 V to 240 V

814 W

Power Consumption (Standby Mode)

AC 100 V to 120 V

0.50 W (when "Standby mode" is set to "Low")

AC 220 V to 240 V

0.50 W (when "Standby mode" is set to "Low")

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V

21.6 W (LAN)
26.5 W (HDBT)
26.6 W (ALL terminals and networks connected, when "Standby mode" is set to "Standard")

AC 220 V to 240 V

21.3 W (LAN)
26.5 W (HDBT)
26.6 W (ALL terminals and networks connected, when "Standby mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated

Approx. 2 Minutes

Heat dissipation

AC 100 V to 120 V

2,866 BTU/h

AC 220 V to 240 V

2,777 BTU/h

Dimensions (W x H x D) (without protrusions)

Approx. 21 13/32 x 8 1/16 x 22 7/32 inches
(544 x 205 x 564 mm)

Mass

Approx. 58 lb (26 kg)

Supplied accessories

Remote commander

RM-PJ30

Projection Lens

VPLL-Z4107, 4008, Z4111, Z4015, Z4019, Z4025, Z4045

Optional Projection Lens

VPLL-Z4107

Throw ratio: 0:75:1 to 0:94:1
Lens Shift — Range Vertical: +/-50%
Lens Shift — Range Horizontal: +/-24%

VPLL-4008

Throw Ratio: 1:00:1
Lens Shift - Range Vertical: +/-32%
Lens Shift - Range Horizontal: +/-15%

VPLL-Z4111

Throw ratio: 1:30:1 to 1:96:1
Lens Shift — Range Vertical: +/-99%
Lens Shift — Range Horizontal: +/-51%

VPLL-Z4015

Throw Ratio: 1:85:1 to 2:44:1
Lens Shift - Range Vertical: +/-98%
Lens Shift - Range Horizontal: +/-51%

VPLL-Z4019

Throw ratio: 2:41:1 to 3:07:1
Lens Shift — Range Vertical: +/-107%
Lens Shift — Range Horizontal: +/-57%

VPLL-Z4025

Throw ratio: 3:02 AM:1 to 5:58 AM:1
Lens Shift — Range Vertical: +/-107%
Lens Shift — Range Horizontal: +/-57%

VPLL-Z4045

Throw ratio: 5.56:1 to 7.5:1
Lens Shift — Range Vertical: +/-107%
Lens Shift — Range Horizontal: +/-57%

Notes

The figures are approximate. They vary depending on the environment or how the projector is used.

The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.

The value is light output measured at center area of screen in Standard mode, and average of all products shipped.

When using BKM-PJ20

Free shipping on non-freight items. In-stock items typically ship within 2-3 business days.
