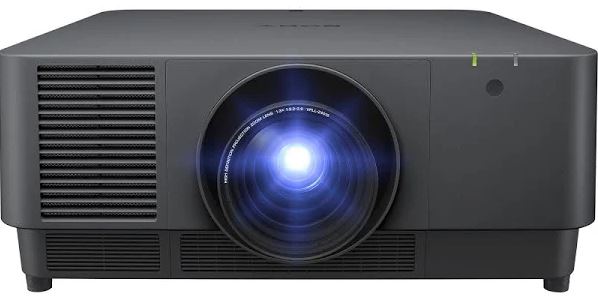

Sony VPL-FHZ131L 13,000-Lumen WUXGA Laser 3LCD Projector (no lens)

• Combining spectacular image quality with easy set-up and minimal maintenance needs, these high-brightness 3LCD laser projectors are ideal for installation in larger spaces.
• Captivate your audience in conference halls, lecture theatres, galleries, museums, visitor attractions and other large spaces. Very high light output 13,000 lm (13,600 lm center) VPL-FHZ131L, 10,000 lm (10,400 lm center) VPL-FHZ101L, 9,000 lm (9,800 lm center) VPL-FHZ91L ensures big-screen presentations with extra presence, even in brightly lit rooms.
• Impressive picture quality is boosted by Sony’s unique super resolution Reality Creation technology. This uses a powerful pattern-matching database to optimize lower-resolution images, enhancing clarity without increasing digital picture noise.
• Save time with Sony’s Intelligent Setting function that simplifies installation with pre-sets to optimize brightness, cooling, color and other projector settings. You’ll be rewarded with great pictures in any environment – including meeting/classrooms, museums, entertainment venues and multi-screen setups.
• Don’t restrict your thinking. You’ll appreciate an industry-leading lens shift adjustment range and a wide choice of interchangeable lenses, giving more options to install the projector in any space, including classrooms and halls with high ceilings. For extra flexibility the VPLL-Z4107 short throw lens is ideal when positioning the projector close to the screen to avoid ceiling-mounted obstructions.
• The projector requires a mounting bracket, which obscures the audience’s view.
• Lens shift gives greater installation flexibility, even in rooms with high ceilings.

Features

• Reduced maintenance
  The laser light source offers up to 20,000 hours* of operation without lamp exchange, reducing maintenance needs compared with traditional projectors.

  * Depending on usage environment.

• Consistent brightness
  Experience consistent image brightness throughout the laser light source's 20,000 hours recommended lifespan.

• Networked control and monitoring
  Ideal for integration in AV environments with leading control, monitoring, and management systems such as Crestron Connected™ and Extron® XTP™ Systems.*

  * Extron and XTP Systems are trademarks of RGB Systems Inc.

• Easy edge blending
  Seamlessly join color-matched images from multiple projectors for stunning super-size displays in corporate and education environments.

• Versatile lens options
  There's a wide range of lens options to suit virtually any size of room and throw requirements. Quick-release bayonet mount simplifies lens exchange.

• Generous lens shift range
  Enjoy greater flexibility to position the projector in restricted spaces, ensuring that audience and presenters aren't distracted by the light source.

• Lens position memory
  Memorize and recall up to six settings for projected image size, position and aspect ratio, saving time in different environments. (Requires optional VPLL-Z4111 lens)

• Stylish blend-in design
  The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.

General Specifications

Accepted Signal Resolution

• Computer Signal Input: Maximum signal resolution: 1920 x 1200
• Video Signal Input: 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
  The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p, 1080/30p*4

Acoustic Noise*1

• Light Output Mode: Middle: 39 dB
• Light Output Mode: Standard: 42 dB

Color Light*1

• Mode: Low: 8,600 lm
• Mode: Middle: 10,000 lm
• Mode: Standard: 13,000 lm

Color Space

• Color Space: sRGB 100% (Picture mode: sRGB)

Contrast Ratio*1

• Contrast Ratio (full white / full black): Contrast Ratio (full white/full black): ∞ : 1

Dimensions (W x H x D) (without protrusions)

• Dimensions (W x H x D) (without protrusions): Approx. 21 13/32 x 8 1/16 x 22 7/32 inches
  (544 x 205 x 564 mm)

Display Device

• Aspect Ratio: 16:10
• Number of Pixels: 6,912,000 (1920 x 1200 x 3) pixels
• Resolution: WUXGA (1920 x 1200 pixels)
• Size of Effective Display Area: 1” x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Display System

• Display System: 3 LCD system

Displayable Scanning Frequency

• Horizontal: 15 kHz to 92 kHz
• Vertical: 48 Hz to 92 Hz

Filter Replacement Cycle (Max.)

• Filter Replacement Cycle (Max.): 10,000 H (service maintenance)

Heat Dissipation

• AC 100 V to 120 V: 3,671 BTU/h
• AC 220 V to 240 V: 3,524 BTU/h

INPUT OUTPUT (Computer/Video/Audio/Control)

• INPUT A: RGB / Y PB PR input connector: 5 BNC (female)
• INPUT B: RGB input connector: Mini D-sub 15-pin (female)
• INPUT C: DVI input connector: DVI-D 24-pin (single link), HDCP support
  HDCP: v1.4
• INPUT D: HDMI input connector: HDMI 19-pin, HDCP support
  HDCP: v1.4
• INPUT E: HDBaseT interface connector: RJ45, 3 play
• INPUT F: Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20)
• INPUT G: HTML Viewer
• LAN: RJ45, 10BASE-T/100BASE-TX/1000BASE-T
• OUTPUT 1: Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female)
• REMOTE: D-sub9pin male/RS232C
• USB-1: Type-A x 1
• USB-2: Type-B x 1 (for service)

Keystone Correction (Max.)

• Horizontal: +/- 30 degrees
• Vertical: +/- 30 degrees

Light Output*1

• Mode: Low: 8,600 lm
• Mode: Middle: 10,000 lm
• Mode: Standard: 13,000 lm*2
• Mode: Standard (Center): 13,600 lm*3

Light Source

• Type: Laser diode

Mass

• Mass: Approx. 58 lb (27 kg)

Notes

• *1: The figures are approximate. They vary depending on the environment or how the projector is used.
• *2: The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
• *3: The value is light output measured at center area of screen in Standard mode, and average of all products shipped.
• *4: When using BKM-PJ20

Operating Temperature / Operating Humidity

• Operating Temperature / Operating Humidity: 0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)

Optional Projection Lens

• VPLL-4008: Throw ratio: 1:00:1
  Lens Shift — Range Vertical: +/-32%
  Lens Shift — Range Horizontal: +/-15%
• VPLL-Z4015: Throw ratio: 1:85:1 to 2:44:1
  Lens Shift — Range Vertical: +/-98%
  Lens Shift — Range Horizontal: +/-51%
• VPLL-Z4019: Throw ratio: 2:41:1 to 3:07:1
  Lens Shift — Range Vertical: +/-107%
  Lens Shift — Range Horizontal: +/-57%
• VPLL-Z4025: Throw ratio: 3:02 AM:1 to 5:58 AM:1
  Lens Shift — Range Vertical: +/-107%
  Lens Shift — Range Horizontal: +/-57%
• VPLL-Z4045: Throw ratio: 5.56:1 to 7.5:1
  Lens Shift — Range Vertical: +/-107%
  Lens Shift — Range Horizontal: +/-57%
• VPLL-Z4107: Throw ratio: 0:75:1 to 0:94:1
  Lens Shift — Range Vertical: +/-50%
  Lens Shift — Range Horizontal: +/-24%
• VPLL-Z4111: Throw ratio: 1:30:1 to 1:96:1
  Lens Shift — Range Vertical: +/-99%
  Lens Shift — Range Horizontal: +/-51%

Power Consumption (Maximum)

• AC 100 V to 120 V: 1076 W
• AC 220 V to 240 V: 1033 W

Power Consumption (Networked Standby Mode)

• AC 100 V to 120 V: 21.6 W (LAN)
  26.5 W (HDBT)
  26.6 W (ALL terminals and networks connected, when "Standby mode" is set to "Standard")
• AC 220 V to 240 V: 21.3 W (LAN)
  26.5 W (HDBT)
  26.6 W (ALL terminals and networks connected, when "Standby mode" is set to "Standard")

Power Consumption (Standby Mode)

• AC 100 V to 120 V: 0.50 W (when "Standby mode" is set to "Low")
• AC 220 V to 240 V: 0.50 W (when "Standby mode" is set to "Low")

Power Requirements

• Power Requirements: AC 100 V to 240 V, 10.8 A to 4.4 A, 50 Hz/60 Hz

Projection Lens

• Focus: Powered / Manual (Depend on lens)
• Lens Shift - Powered / Manual: Powered
• Lens Shift - Range Vertical / Horizontal: Range Vertical: Depends on the lens
  Range Horizontal: Depends on the lens
• Projection Lens: VPLL-Z4107, 4008, Z4111, Z4015, Z4019, Z4025, Z4045
• Throw Ratio: Depend on Lens
• Zoom - Powered / Manual: Powered / Manual (Depend on lens)
• Zoom - Ratio: Depend on Lens

Screen Size

• Screen Size: Depend on Lens

Standby Mode / Networked Standby Mode Activated

• Standby Mode / Networked Standby Mode Activated: Approx. 2 Minutes

Storage Temperature / Storage Humidity

• Storage Temperature / Storage Humidity: -10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)

Supplied Accessories

• Remote Commander: RM-PJ30
