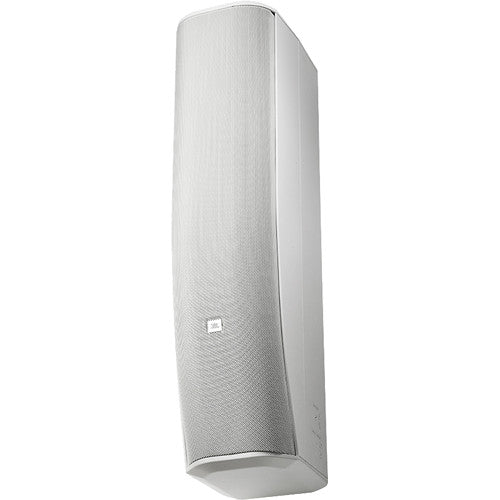

JBL CBT 70J-1 Line Array Column Loudspeaker (White)

Passive Column Array with Switchable Coverage and Constant Beamwidth Technology

The JBL CBT 70J-1 is a white, 2-way passive line array column loudspeaker designed for professional installed sound applications. Its controlled coverage and slim column format make it suitable for auditoriums, lecture halls, stadiums, theme parks, and other spaces requiring clear, consistent sound distribution.

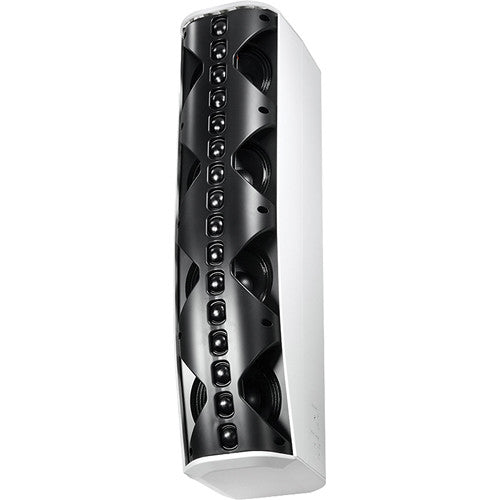

Four 5-inch high-power low-frequency drivers and sixteen 1-inch soft-dome tweeters provide a frequency response from 60 Hz to 20 kHz. JBL Constant Beamwidth Technology maintains consistent directivity while reducing unwanted out-of-coverage lobing, and the asymmetrical vertical pattern directs more sound toward distant listening areas for improved front-to-back consistency.

Installers can switch the vertical coverage between a 25-degree narrow pattern for longer-throw applications and a 45-degree broad pattern for medium-throw coverage. Selectable music and speech voicing provides either a flat response or enhanced midrange presence, allowing the loudspeaker to support different program requirements within permanent sound systems.

The CBT 70J-1 operates at a nominal 8-ohm impedance and includes two push-terminal inputs. An included swivel and tilt wall bracket provides flexible aiming, while ten rear M6 mounting points support compatible installation and suspension configurations.

Key Features

• 2-way passive column array for professional installed sound systems
• Four 5-inch neodymium low-frequency drivers
• Sixteen 1-inch neodymium soft-dome tweeters
• Switchable 25-degree or 45-degree vertical coverage
• 150-degree horizontal coverage at 500 Hz
• Selectable speech and music voicing modes
• Built-in SonicGuard high-frequency overload protection

Professional Applications

• Auditorium sound reinforcement
• Lecture hall audio systems
• Stadium and arena installations
• Theme park sound systems
• Medium-throw and long-throw installed audio applications

System Integration

The JBL CBT 70J-1 integrates into professional passive loudspeaker systems using an amplifier capable of supporting its 8-ohm nominal impedance and power requirements. Two push-terminal inputs simplify loudspeaker wiring, while selectable coverage and voicing controls allow installers to configure the system for the room, listening area, and program material. The included wall bracket provides continuously variable left-to-right swivel and adjustable vertical tilt for accurate aiming.

Broadcast Workflow Benefits

Controlled directivity helps system designers place sound where it is needed while reducing energy outside the intended listening area. The asymmetrical vertical pattern supports more consistent sound levels from the front to the rear of a venue, while switchable speech and music modes make it easier to adapt the loudspeaker for spoken presentations, announcements, and music playback.

Frequently Asked Questions

Is the JBL CBT 70J-1 powered or passive?

The CBT 70J-1 is a passive column array loudspeaker and requires a compatible external amplifier. It has a nominal impedance of 8 ohms.

What coverage patterns are available?

The loudspeaker provides 150-degree horizontal coverage and switchable vertical coverage. Installers can select a 25-degree narrow pattern or a 45-degree broad pattern.

Can the JBL CBT 70J-1 be configured for speech and music?

Yes. Its selectable voicing provides a flat response in music mode and a midrange presence boost in speech mode.

What drivers are used in the CBT 70J-1?

The cabinet contains four 5-inch neodymium low-frequency drivers and sixteen 1-inch neodymium soft-dome tweeters.

Does the loudspeaker include mounting hardware?

Yes. It includes a swivel and tilt wall bracket. The rear panel also has ten M6 mounting points arranged for compatible brackets and suspension applications.

Related Equipment and Workflow Compatibility

The CBT 70J-1 is designed for integration with professional amplification and installed audio distribution systems operating with an 8-ohm loudspeaker load. Its passive design allows system integrators to select amplification appropriate for the required output level and installation configuration.

The rear mounting points conform to an industry-standard rectangular 5.0 x 2.75-inch pattern for the OmniMount 60.0 and other compatible third-party brackets. The included wall bracket supports adjustable swivel and tilt positioning for permanent installations.

Why Professionals Use This Type of Product

• Controlled coverage for more consistent listening-area performance
• Switchable patterns for medium-throw and long-throw applications
• Speech and music voicing for flexible program use
• Slim column design for permanent architectural installations
• Integrated high-frequency overload protection

Additional Compatibility Information

The JBL CBT 70J-1-WH is a white passive column array loudspeaker for professional installed sound, auditorium audio, lecture hall sound reinforcement, stadium systems, and theme park applications. Its 8-ohm configuration, push-terminal connections, selectable vertical beamwidth, adjustable mounting bracket, and speech or music voicing support flexible system design and installation.
